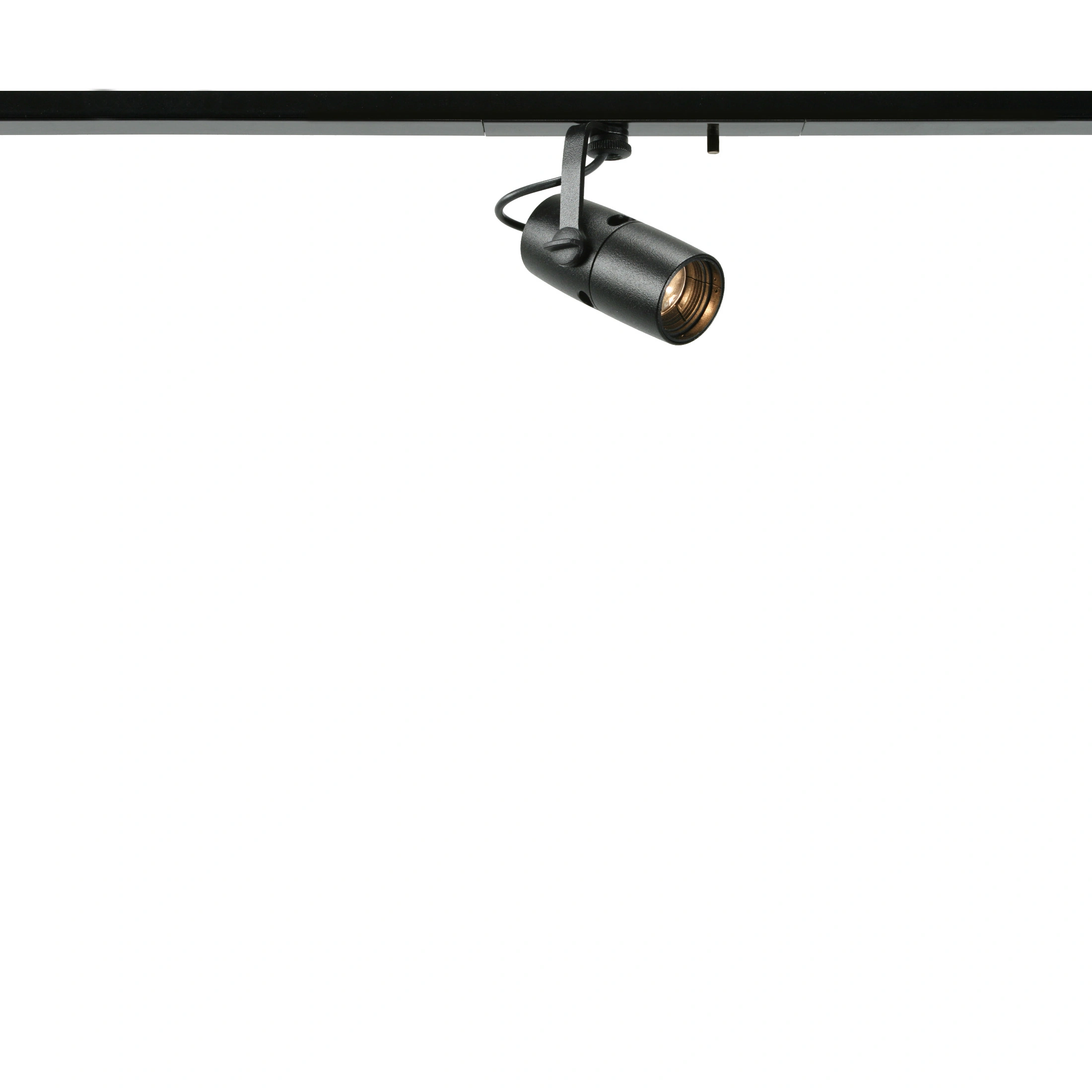

Birdy Accent

A modest mini spotlight with superior anti-glare performance

  • Low-Glare Lighting
  • Excellent Color Rendering
  • Interchangeable Lenses

Birdy Accent is a spotlight designed to discreetly illuminate what you want without spill light.

It fits just about anywhere, and is a great choice for situations where quiet and unobtrusive light are essential.

Birdy Accent offers ultimate versatility with nine interchangeable lenses, making it easy to adjust the lighting. Optional honeycomb louvre and dichroic filters adds to its flexibility and performance.

Low-glare designInterchangeable lenses

Documents

Light data

Light planning

Technical specification

Material

Lamp housing of aluminum. Yoke and details of steel and PC/ABS. Lens of PC

Finish

Black (RAL 9005)

White (9016)

Weight

75 g

System

LED Profile

Pico Trac

Dimming

Via external dimmer (PRO), or built-in dimmer (PICO)

Protection class

IP20

Power consumption

3,2W–4W

Color temperature

2200K, 2700K, 3000K, 4000K, 5700K

CRI

95

Swivels

>365°

Tilts

>90°

Beam angles

Very Narrow 10°

Narrow 12° (Standard)

Spot 19°

Medium 21°

Medium+ 27°

Wide 36°

Very Wide 41°

Elliptical 10°x42°

Elliptical+ 22°×40°

Accessories

Honeycomb louvre, dichroic color filters

Design and idea

Ljusdesign AB and Gouiedo AB

Manufacturer

Ljusdesign AB, Sweden

Birdy Accent PRO

  • For LED Profile High (PRO-HI) and Low (PRO-LO).
  • The adapter has input and output. Connected in series using LED Connector cables.
Light temperatureColorArtNamnSpec
BIRACC22-PRO-2Birdy Accent CC/1050mA LED-profile 2200K, Black250lm, CRI 90, Vf=3V, 1050mA, lens N
BIRACC22-PRO-3Birdy Accent CC/1050mA LED-profile 2200K, White250lm, CRI 90, Vf=3V, 1050mA, lens N
BIRACC27-PRO-2Birdy Accent CC/1050mA LED-profile 2700K, Black270lm, CRI 95, Vf=3V, 1050mA, lens N
BIRACC27-PRO-3Birdy Accent CC/1050mA LED-profile 2700K, White270lm, CRI 95, Vf=3V, 1050mA, lens N
BIRACC30-PRO-2Birdy Accent CC/1050mA LED-profile 3000K, Black290lm, CRI 95, Vf=3V, 1050mA, lens N
BIRACC30-PRO-3Birdy Accent CC/1050mA LED-profile 3000K, White290lm, CRI 95, Vf=3V, 1050mA, lens N
BIRACC40-PRO-2Birdy Accent CC/1050mA LED-profile 4000K, Black310lm, CRI 95, Vf=3V, 1050mA, lens N
BIRACC40-PRO-3Birdy Accent CC/1050mA LED-profile 4000K, White310lm, CRI 95, Vf=3V, 1050mA, lens N
BIRACC57-PRO-2Birdy Accent CC/1050mA LED-profile 5700K, Black320lm, CRI 95, Vf=3V, 1050mA, lens N
BIRACC57-PRO-3Birdy Accent CC/1050mA LED-profile 5700K, White320lm, CRI 95, Vf=3V, 1050mA, lens N

Birdy Accent Solo

  • For surface mounting
  • Comes with M8 threaded tube 30mm and hex nuts
  • Equipped with a 1-meter connection cable that fits LED Distributor (GIZ-B*)
Light temperatureColorArtNameSpec
BIRACC22-CCS-2Birdy Accent CC/1050mA Solo 2700K, Black250lm, CRI 95, Vf=3V, 1050mA, lens N, 1m cable
BIRACC22-CCS-3Birdy Accent CC/1050mA Solo 2200K, White250lm, CRI 90, Vf=3V, 1050mA, lens N, 1m cable
BIRACC27-CCS-2Birdy Accent CC/1050mA Solo 2700K, Black270lm, CRI 95, Vf=3V, 1050mA, lens N, 1m cable
BIRACC27-CCS-3Birdy Accent CC/1050mA Solo 2700K, White270lm, CRI 95, Vf=3V, 1050mA, lens N, 1m cable
BIRACC30-CCS-2Birdy Accent CC/1050mA Solo 3000K, Black290lm, CRI 95, Vf=3V, 1050mA, lens N, 1m cable
BIRACC30-CCS-3Birdy Accent CC/1050mA Solo 3000K, White290lm, CRI 95, Vf=3V, 1050mA, lens N, 1m cable
BIRACC40-CCS-2Birdy Accent CC/1050mA Solo 4000K, Black310lm, CRI 95, Vf=3V, 1050mA, lens N, 1m cable
BIRACC40-CCS-3Birdy Accent CC/1050mA Solo 4000K, White310lm, CRI 95, Vf=3V, 1050mA, lens N, 1m cable
BIRACC57-CCS-2Birdy Accent CC/1050mA Solo 5700K, Black320lm, CRI 95, Vf=3V, 1050mA, lens N, 1m cable
BIRACC57-CCS-3Birdy Accent CC/1050mA Solo 5700K, White320lm, CRI 95, Vf=3V, 1050mA, lens N, 1m cable

Birdy Accent PICO

  • For PICO Trac.
  • Built-in local dimmer (0-100%)
Light temperatureColorArtNameSpec
BIRACC22-PICO-2Birdy Accent 12V DC/4W PicoTrac 2200K, Black250lm, CRI 90, lens N, dimmer
BIRACC22-PICO-3Birdy Accent 12V DC/4W PicoTrac 2200K, White250lm, CRI 90, lens N, dimmer
BIRACC27-PICO-2Birdy Accent 12V DC/4W PicoTrac 2700K, Black270lm, CRI 95, lens N, dimmer
BIRACC27-PICO-3Birdy Accent 12V DC/4W PicoTrac 2700K, White270lm, CRI 95, lens N, dimmer
BIRACC30-PICO-2Birdy Accent 12V DC/4W PicoTrac 3000K, Black290lm, CRI 95, lens N, dimmer
BIRACC30-PICO-3Birdy Accent 12V DC/4W PicoTrac 3000K, White290lm, CRI 95, lens N, dimmer
BIRACC40-PICO-2Birdy Accent 12V DC/4W PicoTrac 4000K, Black310lm, CRI 95, lens N, dimmer
BIRACC40-PICO-3Birdy Accent 12V DC/4W PicoTrac 4000K, White310lm, CRI 95, lens N, dimmer
BIRACC57-PICO-2Birdy Accent 12V DC/4W PicoTrac 5700K, Black320lm, CRI 95, lens N, dimmer
BIRACC57-PICO-3Birdy Accent 12V DC/4W PicoTrac 5700K, White320lm, CRI 95, lens N, dimmer

Birdy Filters

  • Dichroic filters of Borofloat glass
  • To be used with honeycomb louvre (included)
ArtNameSpec
BIR-D-40-57Birdy Filter Dichroic 4000->5700KD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L007Birdy Filter Dichroic 007 Pale YellowD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L152Birdy Filter Dichroic 152 Pale GoldD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L202Birdy Filter Dichroic 202 Half C.T. BlueD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L206Birdy Filter Dichroic 206 Quarter C.T. OrangeD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L236Birdy Filter Dichroic 236 H.M.I. (to Tungsten)D=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L281Birdy Filter Dichroic 281 Three Quarter C.T. BlueD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L010Birdy Filter Dichroic 010 Medium YellowD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L046Birdy Filter Dichroic 046 Dark MagentaD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L089Birdy Filter Dichroic 089 Moss GreenD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L108Birdy Filter Dichroic 108 English RoseD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L203Birdy Filter Dichroic 203 Quater C.T. BlueD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L015Birdy Filter Dichroic 015 Deep StrawD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L021Birdy Filter Dichroic 021 Gold AmberD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L049Birdy Filter Dichroic 049 Medium PurpleD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L075Birdy Filter Dichroic 075 Evening BlueD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L118Birdy Filter Dichroic 118 Light  BlueD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L122Birdy Filter Dichroic 122 Fern GreenD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L131Birdy Filter Dichroic 131 Marine BlueD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L183Birdy Filter Dichroic 183 Moonlight BlueD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L199Birdy Filter Dichroic 199 Regal BlueD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L354Birdy Filter Dichroic 354 Special Steel BlueD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L795Birdy Filter Dichroic 795 Magical MagentaD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L725Birdy Filter Dichroic 725 Old Steel BlueD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L008Birdy Filter Dichroic 008 Dark SalmonD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L134Birdy Filter Dichroic 134 Golden AmberD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L179Birdy Filter Dichroic 179 Chrome OrangeD=23,7 mm ± 0,3 mm, T=1,1 mm
BIR-D-L244Birdy Filter Dichroic 244 Plus GreenD=23,7 mm ± 0,3 mm, T=1,1 mm
