Gimmick

Minimal design and well-suited for display case lighting

  • Extremly small and easy to use
  • Can be mounted on a pipe

Gimmick has a minimal design and is well-suited for display case lighting

  • Built-in dimmer 0–100% (Pico Trac).
  • Glare protection available as an option.

Gimmick is also available as a pendant, Gimmick Pendant.

Gimmick / LED profile greyGimmick / LED profile blackGimmick / LED profile whiteGimmick and accessories

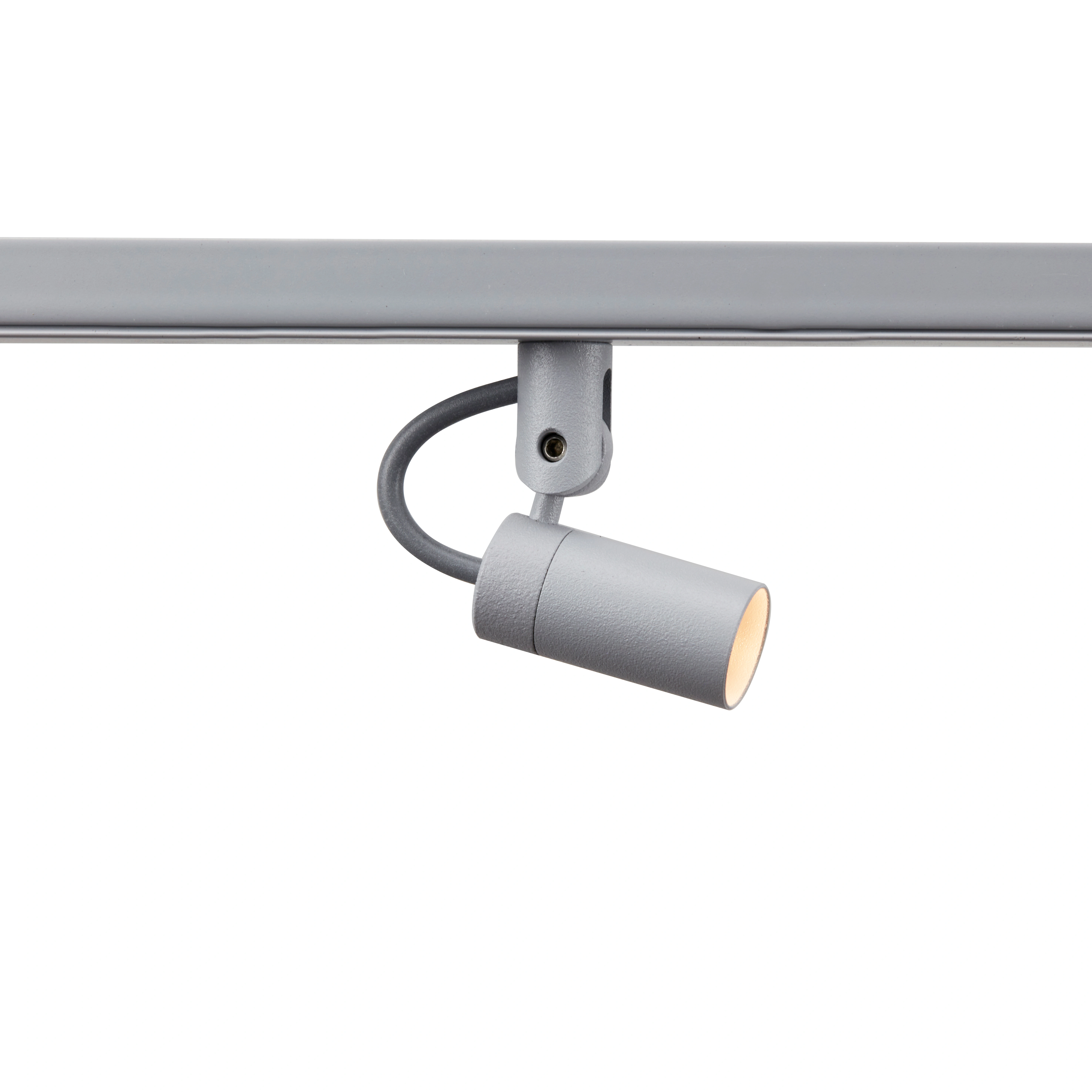

Gimmick / LED profile grey
Pipe-mountable

Documents

Light data

Light planning

Technical specification

Material
  • Aluminium
  • Lens of PC
Finish
  • Grey (RAL 7040)
  • Black (RAL 9005)
  • White (RAL 9016)
  • Brass
Weight

20 g / 30 g

System
  • Pico Trac
  • LED profile
Protection class

IP20

Power consumption

1–2W

Color temperature

2200K, 2700K, 3000K, 4000K, 5700K

CRI

95

Swivels

>365°

Tilt

>90°

Beam angle
  • Narrow 16°
  • Medium 27°
  • Wide 32° (Standard)
  • Very Wide 62°
Design and idea

Peter Wennberg, Ljusdesign AB

Producer
  • Ljusdesign AB, Sweden
  • Electronics in cooperation with Lightronic AB

Gimmick Rod

  • Installation on 10mm pipes
  • Operated by external LED driver, max 350 mA / 1W, Vf = 3V
  • To get a complete unit, you need 1 fixture, 1 foot, 1 rod
Light temperatureColorArt noNameSpec
GIMC22-CCR-1Gimmick CC/350mA Rod 2200K, Grey100lm, CRI 80, Vf=3V, 350mA, lens W, 1,5m cable
GIMC22-CCR-2Gimmick CC/350mA Rod 2200K, Black100lm, CRI 80, Vf=3V, 350mA, lens W, 1,5m cable
GIMC22-CCR-3Gimmick CC/350mA Rod 2200K, White100lm, CRI 80, Vf=3V, 350mA, lens W, 1,5m cable
GIM22-CCR-4Gimmick CC/350mA Rod 2200K, Brass100lm, CRI 80, Vf=3V, 350mA, lens W, 1,5m cable
GIMC27-CCR-1Gimmick CC/350mA Rod 2700K, Grey110lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC27-CCR-2Gimmick CC/350mA Rod 2700K, Black110lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC27-CCR-3Gimmick CC/350mA Rod 2700K, White110lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIM27-CCR-4Gimmick CC/350mA Rod 2700K, Brass110lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC30-CCR-1Gimmick CC/350mA Rod 3000K, Grey120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC30-CCR-2Gimmick CC/350mA Rod 3000K, Black120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC30-CCR-3Gimmick CC/350mA Rod 3000K, White120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIM30-CCR-4Gimmick CC/350mA Rod 3000K, Brass120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC40-CCR-1Gimmick CC/350mA Rod 4000K, Grey120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC40-CCR-2Gimmick CC/350mA Rod 4000K, Black120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC40-CCR-3Gimmick CC/350mA Rod 4000K, White120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIM40-CCR-4Gimmick CC/350mA Rod 4000K, Brass120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC57-CCR-1Gimmick CC/350mA Rod 5700K, Grey120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC57-CCR-2Gimmick CC/350mA Rod 5700K, Black120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIMC57-CCR-3Gimmick CC/350mA Rod 5700K, White120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable
GIM57-CCR-4Gimmick CC/350mA Rod 5700K, Brass120lm, CRI 95, Vf=3V, 350mA, lens W, 1,5m cable

Gimmick Rod accessories

  • To get a complete unit, you need 1 fixture, 1 foot, 1 rod
ColorArt.nrNameSpecification
GIMC-RF-1Mounting footFor 10mm rod, M8
GIMC-RF-2Mounting footFor 10mm rod, M8
GIMC-RF-3Rod 50–650mmØ10mm rod
GIM-RF-4Rod 50–650mmØ10mm rod
GIMC-RM-1Rod, Grey, Price per meter10mm rod, Max 650mm
GIMC-RM-2Rod, Black, Price per meter10mm rod, Max 650mm
GIMC-RM-3Rod, White, Price per meter10mm rod, Max 650mm
GIM-RM-4Rod, Brass, Price per meter10mm rod, Max 650mm

Gimmick 12V DC / Pico Trac

Built-in dimmer 0–100%

Light temperatureColorArt noNameSpec
GIMC22-PT-1Gimmick 12V DC/2W PicoTrac 2200K, Grey100lm, CRI 80, lens W, dimmer
GIMC22-PT-2Gimmick 12V DC/2W PicoTrac 2200K, Black100lm, CRI 80, lens W, dimmer
GIMC22-PT-3Gimmick 12V DC/2W PicoTrac 2200K, White100lm, CRI 80, lens W, dimmer
GIM22-PT-4Gimmick 12V DC/2W PicoTrac 2200K, Brass100lm, CRI 80, lens W, dimmer
GIMC27-PT-1Gimmick 12V DC/2W PicoTrac 2700K, Grey110lm, CRI 95, lens W, dimmer
GIMC27-PT-2Gimmick 12V DC/2W PicoTrac 2700K, Black110lm, CRI 95, lens W, dimmer
GIMC27-PT-3Gimmick 12V DC/2W PicoTrac 2700K, White110lm, CRI 95, lens W, dimmer
GIM27-PT-4Gimmick 12V DC/2W PicoTrac 2700K, Brass110lm, CRI 95, lens W, dimmer
GIMC30-PT-1Gimmick 12V DC/2W PicoTrac 3000K, Grey120lm, CRI 95, lens W, dimmer
GIMC30-PT-2Gimmick 12V DC/2W PicoTrac 3000K, Black120lm, CRI 95, lens W, dimmer
GIMC30-PT-3Gimmick 12V DC/2W PicoTrac 3000K, White120lm, CRI 95, lens W, dimmer
GIM30-PT-4Gimmick 12V DC/2W PicoTrac 3000K, Brass120lm, CRI 95, lens W, dimmer
GIMC40-PT-1Gimmick 12V DC/2W PicoTrac 4000K, Grey120lm, CRI 95, lens W, dimmer
GIMC40-PT-2Gimmick 12V DC/2W PicoTrac 4000K, Black120lm, CRI 95, lens W, dimmer
GIMC40-PT-3Gimmick 12V DC/2W PicoTrac 4000K, White120lm, CRI 95, lens W, dimmer
GIM40-PT-4Gimmick 12V DC/2W PicoTrac 4000K, Brass120lm, CRI 95, lens W, dimmer
GIMC57-PT-1Gimmick 12V DC/2W PicoTrac 5700K, Grey120lm, CRI 95, lens W, dimmer
GIMC57-PT-2Gimmick 12V DC/2W PicoTrac 5700K, Black120lm, CRI 95, lens W, dimmer
GIMC57-PT-3Gimmick 12V DC/2W PicoTrac 5700K, White120lm, CRI 95, lens W, dimmer
GIM57-PT-4Gimmick 12V DC/2W PicoTrac 5700K, Brass120lm, CRI 95, lens W, dimmer

Gimmick CC / LED profile

For installation on LED profile High or Low. Max 350mA. Dimmable via constant current LED driver.

Light temperatureColorArt noNameSpec
GIMC22-CCL-1Gimmick CC/350mA LED-profile 2200K, Grey100lm, CRI 80, Vf=3V, 350mA, lens W
GIMC22-CCL-2Gimmick CC/350mA LED-profile 2200K, Black100lm, CRI 80, Vf=3V, 350mA, lens W
GIMC22-CCL-3Gimmick CC/350mA LED-profile 2200K, Vit100lm, CRI 80, Vf=3V, 350mA, lens W
GIM22-CCL-4Gimmick CC/350mA LED-profile 2200K, Brass100lm, CRI 80, Vf=3V, 350mA, lens W
GIMC27-CCL-1Gimmick CC/350mA LED-profile 2700K, Grey110lm, CRI 95, Vf=3V, 350mA, lens W
GIMC27-CCL-2Gimmick CC/350mA LED-profile 2700K, Black110lm, CRI 95, Vf=3V, 350mA, lens W
GIMC27-CCL-3Gimmick CC/350mA LED-profile 2700K, Vit110lm, CRI 95, Vf=3V, 350mA, lens W
GIM27-CCL-4Gimmick CC/350mA LED-profile 2700K, Brass110lm, CRI 95, Vf=3V, 350mA, lens W
GIMC30-CCL-1Gimmick CC/350mA LED-profile 3000K, Grey120lm, CRI 95, Vf=3V, 350mA, lens W
GIMC30-CCL-2Gimmick CC/350mA LED-profile 3000K, Black120lm, CRI 95, Vf=3V, 350mA, lens W
GIMC30-CCL-3Gimmick CC/350mA LED-profile 3000K, Vit120lm, CRI 95, Vf=3V, 350mA, lens W
GIM30-CCL-4Gimmick CC/350mA LED-profile 3000K, Brass120lm, CRI 95, Vf=3V, 350mA, lens W
GIMC40-CCL-1Gimmick CC/350mA LED-profile 4000K, Grey120lm, CRI 95, Vf=3V, 350mA, lens W
GIMC40-CCL-2Gimmick CC/350mA LED-profile 4000K, Black120lm, CRI 95, Vf=3V, 350mA, lens W
GIMC40-CCL-3Gimmick CC/350mA LED-profile 4000K, Vit120lm, CRI 95, Vf=3V, 350mA, lens W
GIM40-CCL-4Gimmick CC/350mA LED-profile 4000K, Brass120lm, CRI 95, Vf=3V, 350mA, lens W
GIMC57-CCL-1Gimmick CC/350mA LED-profile 5700K, Grey120lm, CRI 95, Vf=3V, 350mA, lens W
GIMC57-CCL-2Gimmick CC/350mA LED-profile 5700K, Black120lm, CRI 95, Vf=3V, 350mA, lens W
GIMC57-CCL-3Gimmick CC/350mA LED-profile 5700K, Vit120lm, CRI 95, Vf=3V, 350mA, lens W
GIM57-CCL-4Gimmick CC/350mA LED-profile 5700K, Brass120lm, CRI 95, Vf=3V, 350mA, lens W

Gimmick Lenses

TIR lenses for Gimmick

Art noNameSpec
GIM-L-NNarrow16°
GIM-L-MMedium27°
GIM-L-WWide (Standard)32°
GIM-L-VWVery Wide62°
