High coverage illumination
- Asymmetric light distribution
- Smooth stretched light
- Perfect color rendering and consistency

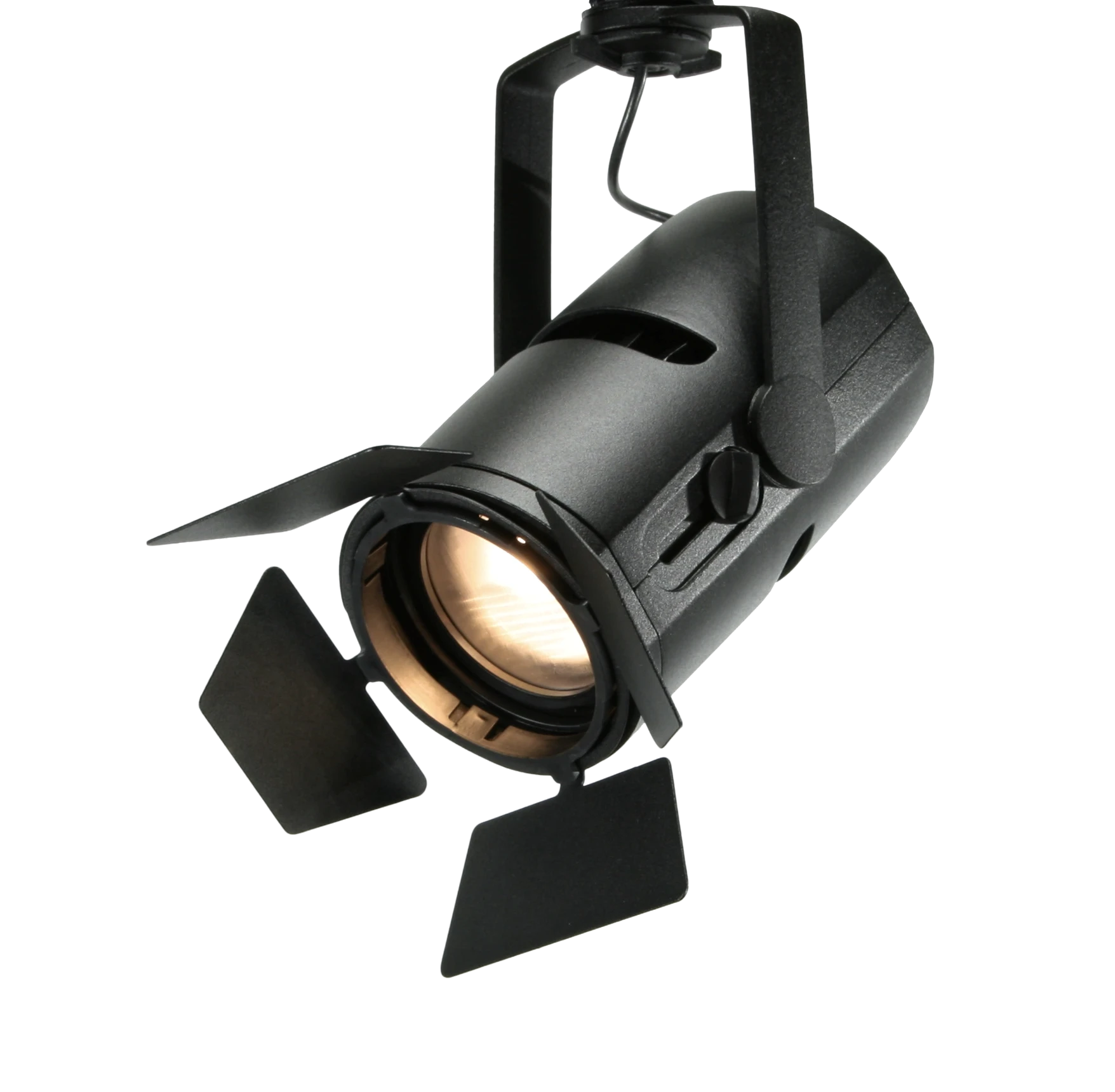

Neo Wall Washer is developed to illuminate large spaces in museums and galleries.
It casts a wide Asymmetrical beam to achieve an even, seamless coverage. In addition, it comes with well-functioning barn doors to remove any unwanted spill light.
Compatibility
Neo Wall Washer is available for the following systems:

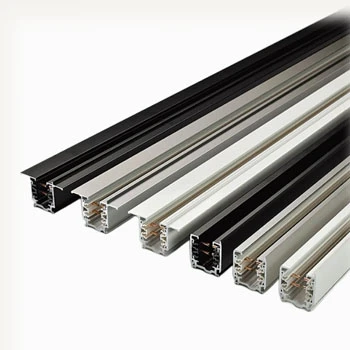

3-Phase Track
220-240V AC

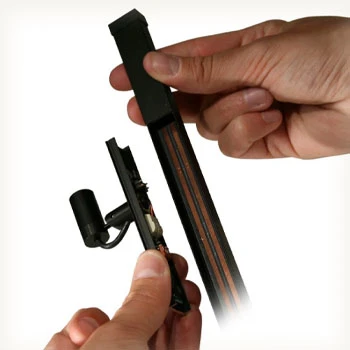

Pico Trac
12V DC

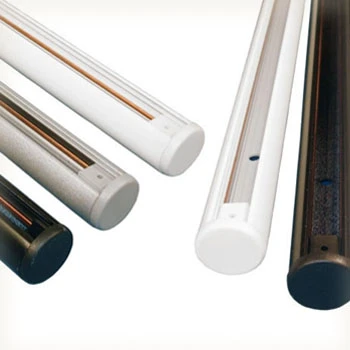

Mini Trac
12V DC

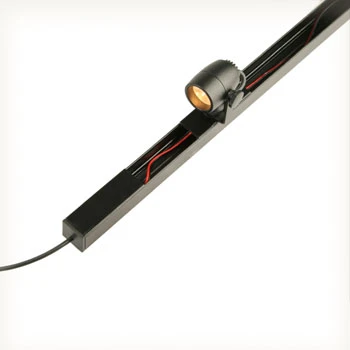

LED Profile
Constant current
Technical specification
- Material
- Lamp housing made of die-cast aluminum,
- Adapter housing made of PC 10 GF,
- Lens of PC+PET
- Finish
- Grey (RAL 7040)
- Black (RAL 9005)
- White (RAL 9016)
- Protection class
IP20
- Operating voltage
230V~ 50/60Hz
- Power consumption
24–26W
- Rated life
L70 > 55 000h according to TM-21 projection (Ta 25°)
- LED failure rate
0,1% 50 000h
- Beam angle
Asymmetric
- Color temperatures
- 2700K
- 3000K
- 4000K
- Swivels
>365°
- Tilts
>90°
- Features
- Filter holder
- Phase selector
- Toolless pan
- Tilt lock
Neo Wall Washer Analog
Built in local dimmer (0-100%) Slim profile adapter
| Light temperature | Color | Art.no | Description | Specification |
|---|---|---|---|---|
| NEOWW27C-AL-1 | Neo Wall Washer 230V/24W 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW27C-AL-2 | Neo Wall Washer 230V/24W 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW27C-AL-3 | Neo Wall Washer 230V/24W 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW30C-AL-1 | Neo Wall Washer 230V/24W 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW30C-AL-2 | Neo Wall Washer 230V/24W 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW30C-AL-3 | Neo Wall Washer 230V/24W 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW40C-AL-1 | Neo Wall Washer 230V/24W 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW40C-AL-2 | Neo Wall Washer 230V/24W 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW40C-AL-3 | Neo Wall Washer 230V/24W 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW27C-AH-1 | Neo Wall Washer 230V/26W 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW27C-AH-2 | Neo Wall Washer 230V/26W 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW27C-AH-3 | Neo Wall Washer 230V/26W 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW30C-AH-1 | Neo Wall Washer 230V/26W 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW30C-AH-2 | Neo Wall Washer 230V/26W 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW30C-AH-3 | Neo Wall Washer 230V/26W 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW40C-AH-1 | Neo Wall Washer 230V/26W 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW40C-AH-2 | Neo Wall Washer 230V/26W 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, dimmer | ||
| NEOWW40C-AH-3 | Neo Wall Washer 230V/26W 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, dimmer |
Neo Wall Washer Casambi Pot
Casambi rotary dimmer (0–100%) Adjust Casambi light levels directly on the fixture Fits most known 3-phase tracks
| Light temperature | Color | Art.no | Description | Specification |
|---|---|---|---|---|
| NEOWW27C-AHCP-1 | Neo Wall Washer 230V/24W Casambi 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, potentiometer | ||
| NEOWW27C-AHCP-2 | Neo Wall Washer 230V/24W Casambi 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, potentiometer | ||
| NEOWW27C-AHCP-3 | Neo Wall Washer 230V/24W Casambi 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, potentiometer | ||
| NEOWW30C-AHCP-1 | Neo Wall Washer 230V/24W Casambi 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, potentiometer | ||
| NEOWW30C-AHCP-2 | Neo Wall Washer 230V/24W Casambi 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, potentiometer | ||
| NEOWW30C-AHCP-3 | Neo Wall Washer 230V/24W Casambi 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, potentiometer | ||
| NEOWW40C-AHCP-1 | Neo Wall Washer 230V/24W Casambi 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, potentiometer | ||
| NEOWW40C-AHCP-2 | Neo Wall Washer 230V/24W Casambi 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, potentiometer | ||
| NEOWW40C-AHCP-3 | Neo Wall Washer 230V/24W Casambi 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, potentiometer |
Neo Wall Washer Casambi
Fixture is configured using the Casambi app Fits most known 3-phase tracks
| Light temperature | Color | Art.no | Description | Specification |
|---|---|---|---|---|
| NEOWW27C-AHC-1 | Neo Wall Washer 230V/24W Casambi 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase | ||
| NEOWW27C-AHC-2 | Neo Wall Washer 230V/24W Casambi 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase | ||
| NEOWW27C-AHC-3 | Neo Wall Washer 230V/24W Casambi 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase | ||
| NEOWW30C-AHC-1 | Neo Wall Washer 230V/24W Casambi 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase | ||
| NEOWW30C-AHC-2 | Neo Wall Washer 230V/24W Casambi 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase | ||
| NEOWW30C-AHC-3 | Neo Wall Washer 230V/24W Casambi 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase | ||
| NEOWW40C-AHC-1 | Neo Wall Washer 230V/24W Casambi 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase | ||
| NEOWW40C-AHC-2 | Neo Wall Washer 230V/24W Casambi 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase | ||
| NEOWW40C-AHC-3 | Neo Wall Washer 230V/24W Casambi 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase |
Neo Wall Washer DMX
Wireless DMX via Lumenradio CRMX Configuration via built-in display Fits most known 3-phase tracks Local dimmer (0–100%)
| Light temperature | Color | Art.no | Description | Specification |
|---|---|---|---|---|
| NEOWW27C-AHX-1 | Neo Wall Washer 230V/26W DMX 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, wireless DMX | ||
| NEOWW27C-AHX-2 | Neo Wall Washer 230V/26W DMX 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, wireless DMX | ||
| NEOWW27C-AHX-3 | Neo Wall Washer 230V/26W DMX 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, wireless DMX | ||
| NEOWW30C-AHX-1 | Neo Wall Washer 230V/26W DMX 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, wireless DMX | ||
| NEOWW30C-AHX-2 | Neo Wall Washer 230V/26W DMX 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, wireless DMX | ||
| NEOWW30C-AHX-3 | Neo Wall Washer 230V/26W DMX 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, wireless DMX | ||
| NEOWW40C-AHX-1 | Neo Wall Washer 230V/26W DMX 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, wireless DMX | ||
| NEOWW40C-AHX-2 | Neo Wall Washer 230V/26W DMX 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, wireless DMX | ||
| NEOWW40C-AHX-3 | Neo Wall Washer 230V/26W DMX 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, wireless DMX |
Neo Wall Washer DALI
DALI (Dimming 1-100%). Equipped with a DALI driver for Global Trac PULSE track
| Light temperature | Color | Art.no | Description | Specification |
|---|---|---|---|---|
| NEOWW27C-AHD-1 | Neo Wall Washer 230V/24W DALI 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, PULSE DALI | ||
| NEOWW27C-AHD-2 | Neo Wall Washer 230V/24W DALI 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, PULSE DALI | ||
| NEOWW27C-AHD-3 | Neo Wall Washer 230V/24W DALI 2700K | 1800lm, CRI 98, SDCM2, Asym, 3-phase, PULSE DALI | ||
| NEOWW30C-AHD-1 | Neo Wall Washer 230V/24W DALI 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, PULSE DALI | ||
| NEOWW30C-AHD-2 | Neo Wall Washer 230V/24W DALI 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, PULSE DALI | ||
| NEOWW30C-AHD-3 | Neo Wall Washer 230V/24W DALI 3000K | 1910lm, CRI 98, SDCM2, Asym, 3-phase, PULSE DALI | ||
| NEOWW40C-AHD-1 | Neo Wall Washer 230V/24W DALI 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, PULSE DALI | ||
| NEOWW40C-AHD-2 | Neo Wall Washer 230V/24W DALI 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, PULSE DALI | ||
| NEOWW40C-AHD-3 | Neo Wall Washer 230V/24W DALI 4000K | 1990lm, CRI 98, SDCM2, Asym, 3-phase, PULSE DALI |
Neo Wall Washer CC Solo
No driver / adapter included Operated by external LED driver, max 600 mA / 22W, Vf = 36V
| Light temperature | Color | Art.no | Description | Specification |
|---|---|---|---|---|
| NEOWW27C-CCS-1 | Neo Wall Washer CC/600mA Solo 2700K | 1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, Asym, 1m cable | ||
| NEOWW27C-CCS-2 | Neo Wall Washer CC/600mA Solo 2700K | 1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, Asym, 1m cable | ||
| NEOWW27C-CCS-3 | Neo Wall Washer CC/600mA Solo 2700K | 1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, Asym, 1m cable | ||
| NEOWW30C-CCS-1 | Neo Wall Washer CC/600mA Solo 3000K | 1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, Asym, 1m cable | ||
| NEOWW30C-CCS-2 | Neo Wall Washer CC/600mA Solo 3000K | 1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, Asym, 1m cable | ||
| NEOWW30C-CCS-3 | Neo Wall Washer CC/600mA Solo 3000K | 1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, Asym, 1m cable | ||
| NEOWW40C-CCS-1 | Neo Wall Washer CC/600mA Solo 4000K | 1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, Asym, 1m cable | ||
| NEOWW40C-CCS-2 | Neo Wall Washer CC/600mA Solo 4000K | 1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, Asym, 1m cable | ||
| NEOWW40C-CCS-3 | Neo Wall Washer CC/600mA Solo 4000K | 1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, Asym, 1m cable |
