Ljusdesign AB

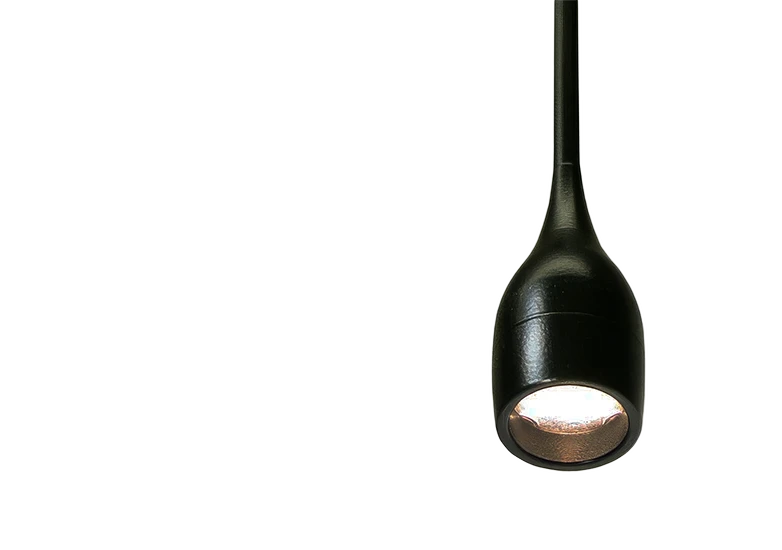

Gizmo pendant

Pendant based on Gizmo.

  • Made from brass or steel
  • Available in 3 standard colors, black, white, brass
  • Custom finish available
Gizmo pendant, BlackGizmo pendant, White
Gizmo pendant, Black

Light data

Light planning

Technical specification

Material
  • Steel or Brass
  • Lens of polycarbonate
Protection class

IP20

Power consumption

1,2W–2,4W

Current

350–700 mA

Color temperature

2700K, 3000K, 4000K

CRI

90

Beam angle
  • Controlled with lenses:
  • Narrow (Standard)
  • Medium
  • Wide
  • Elliptical
Design and idea

LjusDesign AB, Sweden

Gizmo pendant

Pendant fixture based on Gizmo. Interchangeable lenses. Equipped with a 3-meter connection cable

Light temperatureColorArt.noBenämningSpecifikation
GIZ22B-CCP-2Gizmo CC/700mA Pendant 2200K, Black190lm, CRI 90, Vf=3V, 700mA, lens N, 3m cable
GIZ22B-CCP-3Gizmo CC/700mA Pendant 2200K, White190lm, CRI 90, Vf=3V, 700mA, lens N, 3m cable
GIZ22B-CCP-4Gizmo CC/700mA Pendant 2200K, Brass190lm, CRI 90, Vf=3V, 700mA, lens N, 3m cable
GIZ22B-CCP-XGizmo CC/700mA Pendant 2200K, Painted190lm, CRI 90, Vf=3V, 700mA, lens N, 3m cable
GIZ27B-CCP-2Gizmo CC/700mA Pendant 2700K, Black200lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ27B-CCP-3Gizmo CC/700mA Pendant 2700K, White200lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ27B-CCP-4Gizmo CC/700mA Pendant 2700K, Brass200lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ27B-CCP-XGizmo CC/700mA Pendant 2700K, Painted200lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ30B-CCP-2Gizmo CC/700mA Pendant 3000K, Black210lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ30B-CCP-3Gizmo CC/700mA Pendant 3000K, White210lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ30B-CCP-4Gizmo CC/700mA Pendant 3000K, Brass210lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ30B-CCP-XGizmo CC/700mA Pendant 3000K, Painted210lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ40B-CCP-2Gizmo CC/700mA Pendant 4000K, Black220lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ40B-CCP-3Gizmo CC/700mA Pendant 4000K, White220lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ40B-CCP-4Gizmo CC/700mA Pendant 4000K, Brass220lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ40B-CCP-XGizmo CC/700mA Pendant 4000K, Painted220lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ57B-CCP-2Gizmo CC/700mA Pendant 5700K, Black230lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ57B-CCP-3Gizmo CC/700mA Pendant 5700K, White230lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ57B-CCP-4Gizmo CC/700mA Pendant 5700K, Brass230lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
GIZ57B-CCP-XGizmo CC/700mA Pendant 5700K, Painted230lm, CRI 95, Vf=3V, 700mA, lens N, 3m cable
