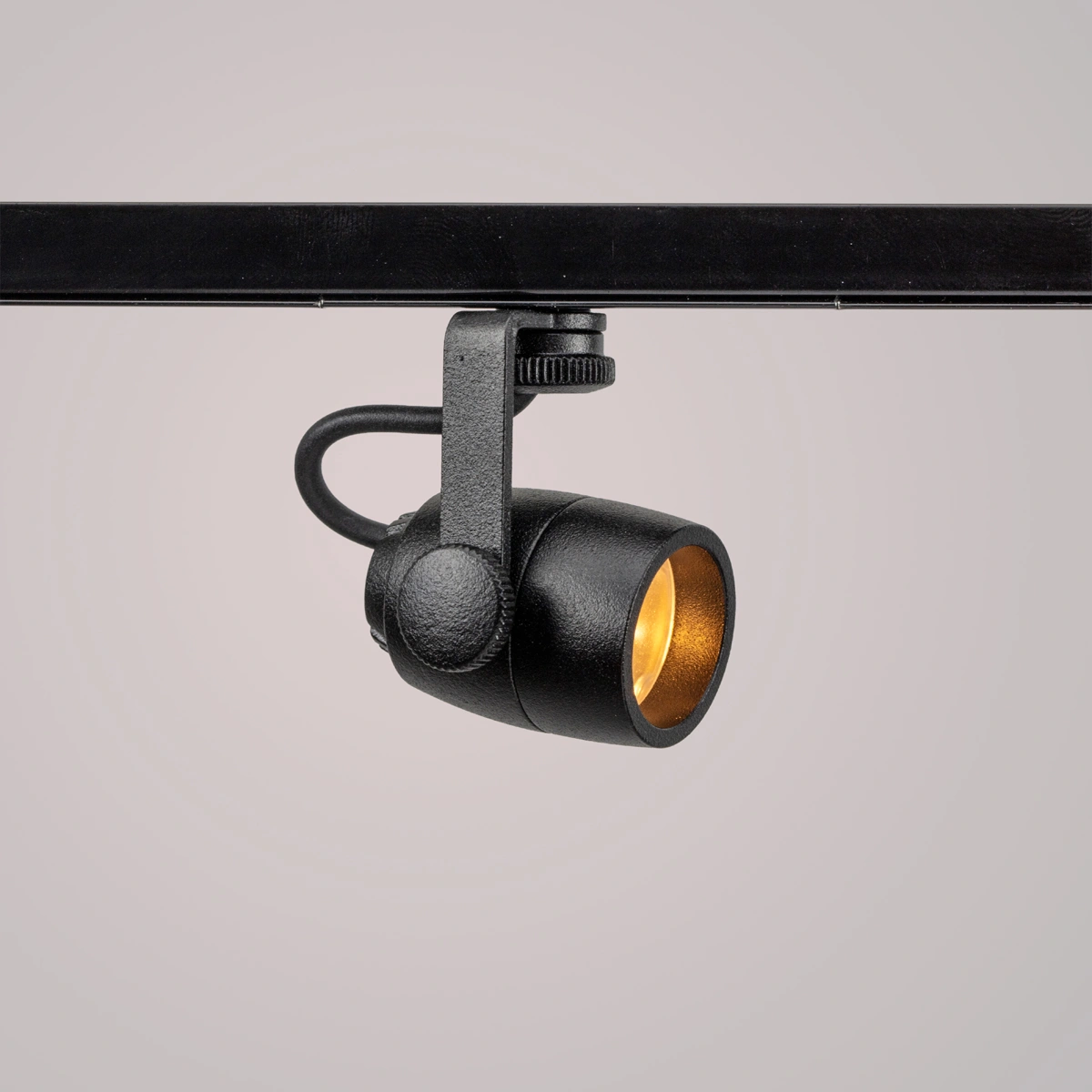

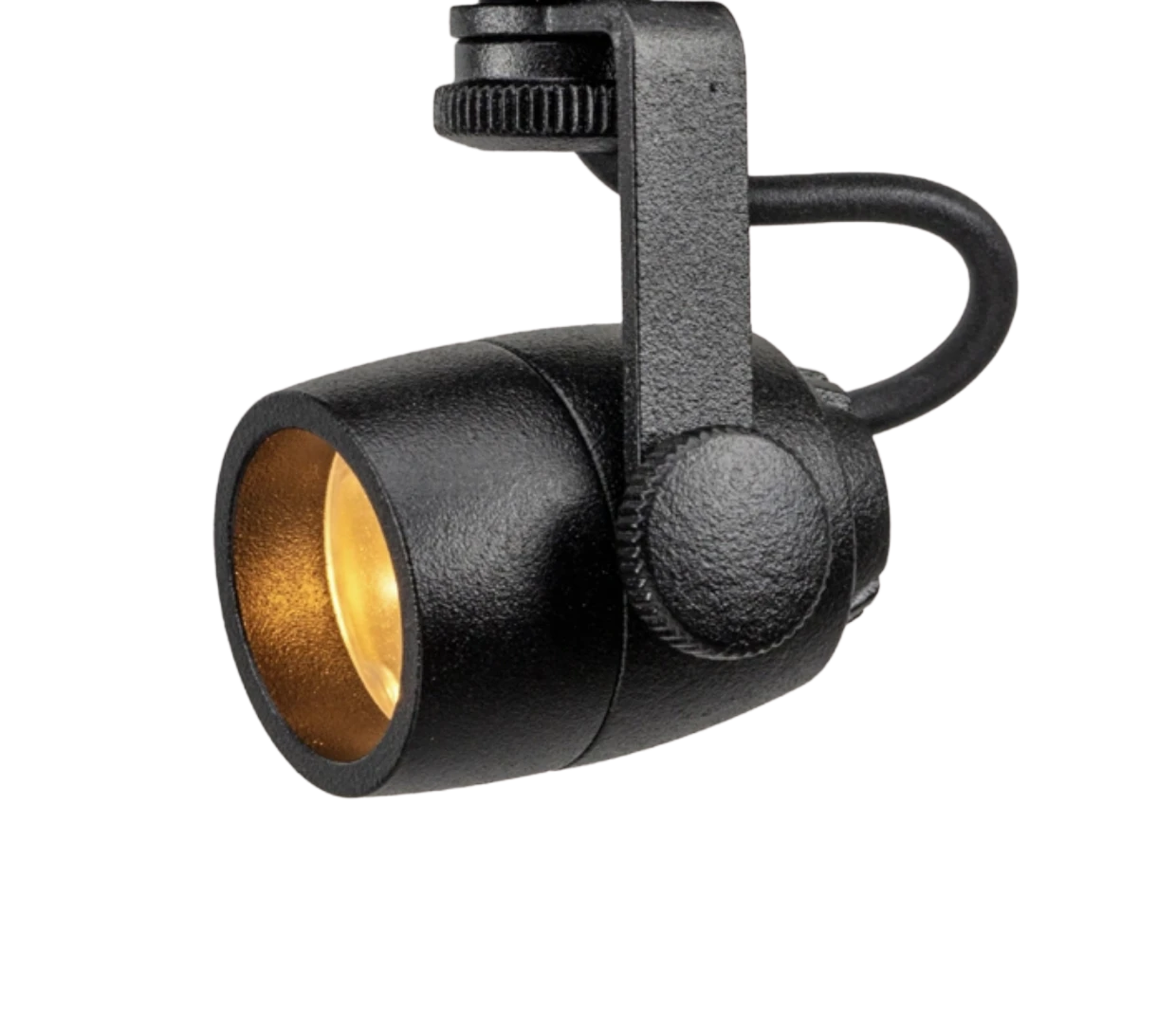

Gizmo

Designed to discretely illuminate objects in museum display cases

  • Color accuracy with CRI 95
  • Tool-less interchangeable lenses
  • Available in many variations

A mini spotlight with the best possible color rendition.

  • Dimmable from the wall or the app when mounted in our LED-profiles
  • Built-in dimmer 0–100% in every fixture Pico Trac
  • Lenses are interchanged without tools

Gizmo is delivered with adapter for LED-profile or Pico Trac.

In the solo edition, it can also be mounted in a ceiling cup or with the included M8 fitting (8mm drill hole).

Interchangable lenses

Compatibility

Gizmo is available for the following systems:

  • Pico Trac

    12V DC

  • LED Profile

    Constant current

Technical specification

Material
  • Lamp housing of aluminium
  • Yoke and details of steel
  • Lens of PC
Finish
  • Grey (RAL 7040)
  • Black (RAL 9005)
  • White (RAL 9016)
  • Brass
  • Custom
Weight

50 g

System
Protection class

IP20

Power consumption

2,1–3W

CRI (Model B)

95

Colour temperature

2200K, 2700K, 3000K, 4000K, 5700K

Swivels

>365°

Tilts

>90°

Beam angles
  • Narrow 12° (Standard)
  • Spot 19°
  • Medium 21°
  • Medium+ 27°
  • Wide 36°
  • Very Wide 41°
  • Elliptical 10°x42°
  • Elliptical+ 22°×40°
Dinkey design and idea

Ljusdesign AB

Manufacturer
  • Ljusdesign AB, Sweden
  • Electronics in collaboration with Lightronic AB

Gizmo CC / LED PROFILE

  • For installation on LED profile High or Low. Max 700mA.
  • Dimmable via constant current LED driver.
Light temperatureColorArt.noNameSpecification
GIZ22-CCL-1Gizmo CC/700mA LED-profile 2200K, Grey190lm, CRI 80, Vf=3V, 700mA, lens N
GIZ22-CCL-2Gizmo CC/700mA LED-profile 2200K, Black190lm, CRI 80, Vf=3V, 700mA, lens N
GIZ22-CCL-3Gizmo CC/700mA LED-profile 2200K, White190lm, CRI 80, Vf=3V, 700mA, lens N
GIZ22-CCL-4Gizmo CC/700mA LED-profile 2200K, Brass190lm, CRI 80, Vf=3V, 700mA, lens N
GIZ27B-CCL-1Gizmo CC/700mA LED-profile 2700K, Grey200lm, CRI 95, Vf=3V, 700mA, lens N
GIZ27B-CCL-2Gizmo CC/700mA LED-profile 2700K, Black200lm, CRI 95, Vf=3V, 700mA, lens N
GIZ27B-CCL-3Gizmo CC/700mA LED-profile 2700K, White200lm, CRI 95, Vf=3V, 700mA, lens N
GIZ27B-CCL-4Gizmo CC/700mA LED-profile 2700K, Brass200lm, CRI 95, Vf=3V, 700mA, lens N
GIZ30B-CCL-1Gizmo CC/700mA LED-profile 3000K, Grey210lm, CRI 95, Vf=3V, 700mA, lens N
GIZ30B-CCL-2Gizmo CC/700mA LED-profile 3000K, Black210lm, CRI 95, Vf=3V, 700mA, lens N
GIZ30B-CCL-3Gizmo CC/700mA LED-profile 3000K, White210lm, CRI 95, Vf=3V, 700mA, lens N
GIZ30B-CCL-4Gizmo CC/700mA LED-profile 3000K, Brass210lm, CRI 95, Vf=3V, 700mA, lens N
GIZ40B-CCL-1Gizmo CC/700mA LED-profile 4000K, Grey220lm, CRI 95, Vf=3V, 700mA, lens N
GIZ40B-CCL-2Gizmo CC/700mA LED-profile 4000K, Black220lm, CRI 95, Vf=3V, 700mA, lens N
GIZ40B-CCL-3Gizmo CC/700mA LED-profile 4000K, White220lm, CRI 95, Vf=3V, 700mA, lens N
GIZ40B-CCL-4Gizmo CC/700mA LED-profile 4000K, Brass220lm, CRI 95, Vf=3V, 700mA, lens N
GIZ57B-CCL-1Gizmo CC/700mA LED-profile 5700K, Grey230lm, CRI 95, Vf=3V, 700mA, lens N
GIZ57B-CCL-2Gizmo CC/700mA LED-profile 5700K, Black230lm, CRI 95, Vf=3V, 700mA, lens N
GIZ57B-CCL-3Gizmo CC/700mA LED-profile 5700K, White230lm, CRI 95, Vf=3V, 700mA, lens N
GIZ57B-CCL-4Gizmo CC/700mA LED-profile 5700K, Brass230lm, CRI 95, Vf=3V, 700mA, lens N

Gizmo CC / Solo

  • For surface mounting. Max 700mA.
  • Dimmable via constant current LED driver.
Light temperatureColorArt noNameSpecification
GIZ22-CCS-1Gizmo CC/700mA Solo 2200K, Grey190lm, CRI 80, Vf=3V, 700mA, lens N, 1m cable
GIZ22-CCS-2Gizmo CC/700mA Solo 2200K, Black190lm, CRI 80, Vf=3V, 700mA, lens N, 1m cable
GIZ22-CCS-3Gizmo CC/700mA Solo 2200K, White190lm, CRI 80, Vf=3V, 700mA, lens N, 1m cable
GIZ22-CCS-4Gizmo CC/700mA Solo 2200K, Brass190lm, CRI 80, Vf=3V, 700mA, lens N, 1m cable
GIZ27B-CCS-1Gizmo CC/700mA Solo 2700K, Grey200lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ27B-CCS-2Gizmo CC/700mA Solo 2700K, Black200lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ27B-CCS-3Gizmo CC/700mA Solo 2700K, White200lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ27B-CCS-4Gizmo CC/700mA Solo 2700K, Brass200lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ30B-CCS-1Gizmo CC/700mA Solo 3000K, Grey210lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ30B-CCS-2Gizmo CC/700mA Solo 3000K, Black210lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ30B-CCS-3Gizmo CC/700mA Solo 3000K, White210lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ30B-CCS-4Gizmo CC/700mA Solo 3000K, Brass210lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ40B-CCS-1Gizmo CC/700mA Solo 4000K, Grey220lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ40B-CCS-2Gizmo CC/700mA Solo 4000K, Black220lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ40B-CCS-3Gizmo CC/700mA Solo 4000K, White220lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ40B-CCS-4Gizmo CC/700mA Solo 4000K, Brass220lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ57B-CCS-1Gizmo CC/700mA Solo 5700K, Grey230lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ57B-CCS-2Gizmo CC/700mA Solo 5700K, Black230lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ57B-CCS-3Gizmo CC/700mA Solo 5700K, White230lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable
GIZ57B-CCS-4Gizmo CC/700mA Solo 5700K, Brass230lm, CRI 95, Vf=3V, 700mA, lens N, 1m cable

Gizmo 12V DC / PICO TRAC

  • Built-in dimmer 0–100%
Light temperatureColorArt.noNameSpecification
GIZ22-PT-1Gizmo 12V DC/3W PicoTrac 2200K, Grey190lm, CRI 80, lens N, dimmer
GIZ22-PT-2Gizmo 12V DC/3W PicoTrac 2200K, Black190lm, CRI 80, lens N, dimmer
GIZ22-PT-3Gizmo 12V DC/3W PicoTrac 2200K, White190lm, CRI 80, lens N, dimmer
GIZ22-PT-4Gizmo 12V DC/3W PicoTrac 2200K, Mässing190lm, CRI 80, lens N, dimmer
GIZ27B-PT-1Gizmo 12V DC/3W PicoTrac 2700K, Grey200lm, CRI 95, lens N, dimmer
GIZ27B-PT-2Gizmo 12V DC/3W PicoTrac 2700K, Black200lm, CRI 95, lens N, dimmer
GIZ27B-PT-3Gizmo 12V DC/3W PicoTrac 2700K, White200lm, CRI 95, lens N, dimmer
GIZ27B-PT-4Gizmo 12V DC/3W PicoTrac 2700K, Brass200lm, CRI 95, lens N, dimmer
GIZ30B-PT-1Gizmo 12V DC/3W PicoTrac 3000K, Grey210lm, CRI 95, lens N, dimmer
GIZ30B-PT-2Gizmo 12V DC/3W PicoTrac 3000K, Black210lm, CRI 95, lens N, dimmer
GIZ30B-PT-3Gizmo 12V DC/3W PicoTrac 3000K, White210lm, CRI 95, lens N, dimmer
GIZ30B-PT-4Gizmo 12V DC/3W PicoTrac 3000K, Brass210lm, CRI 95, lens N, dimmer
GIZ40B-PT-1Gizmo 12V DC/3W PicoTrac 4000K, Grey220lm, CRI 95, lens N, dimmer
GIZ40B-PT-2Gizmo 12V DC/3W PicoTrac 4000K, Black220lm, CRI 95, lens N, dimmer
GIZ40B-PT-3Gizmo 12V DC/3W PicoTrac 4000K, White220lm, CRI 95, lens N, dimmer
GIZ40B-PT-4Gizmo 12V DC/3W PicoTrac 4000K, Brass220lm, CRI 95, lens N, dimmer
GIZ57B-PT-1Gizmo 12V DC/3W PicoTrac 5700K, Grey230lm, CRI 95, lens N, dimmer
GIZ57B-PT-2Gizmo 12V DC/3W PicoTrac 5700K, Black230lm, CRI 95, lens N, dimmer
GIZ57B-PT-3Gizmo 12V DC/3W PicoTrac 5700K, White230lm, CRI 95, lens N, dimmer
GIZ57B-PT-4Gizmo 12V DC/3W PicoTrac 5700K, Brass230lm, CRI 95, lens N, dimmer

Gizmo lenses

  • High efficient TIR-lenses for Gizmo
Art.noNameDescription
GIZ-L-NNarrow (Standard)12°
GIZ-L-SSpot19°
GIZ-L-MMedium21°
GIZ-L-M+Medium+27°
GIZ-L-WWide36°
GIZ-L-VWVery Wide41°
GIZ-L-EElliptical10°x42°
GIZ-L-E+Elliptical+22°x40°

Gizmo Snoot

  • Extended glare protection for Gizmo
  • Self-adhesive black velour is included for attachment inside the front piece
ColorItem codeProductFeatures
GIZ-B25-1Gizmo Snoot, GreyLength = 25mm, Black velor included
GIZ-B25-2Gizmo Snoot, BlackLength = 25mm, Black velor included
GIZ-B25-3Gizmo Snoot, WhiteLength = 25mm, Black velor included
GIZ-B25-4Gizmo Snoot, BrassLength = 25mm, Black velor included

Gizmo Ceiling cup

  • Surface mounted
  • Compatible with Gizmo
ColorArt.noBenämningSpecifikationFärg
GIZ-TK-2Ceiling cup surface mounted⌀36mm H=9,5mmBlack
GIZ-TK-3Ceiling cup surface mounted⌀36mm H=9,5mmVit

Arty Ceiling cup

Arty Ceiling cup is perfect for recessed installation of solo spotlights.

  • Recessed installation
  • Hole diameter: 48-52mm
  • Compatible with Gizmo, Dinkey and Arty
ColorArt.noBenämningSpecifikationFärg
ART-TK-2Ceiling cup recessed⌀55mmBlack
ART-TK-3Ceiling cup recessed⌀55mmWhite
