Neo Profile Narrow has been replaced by Neo Framer Narrow.

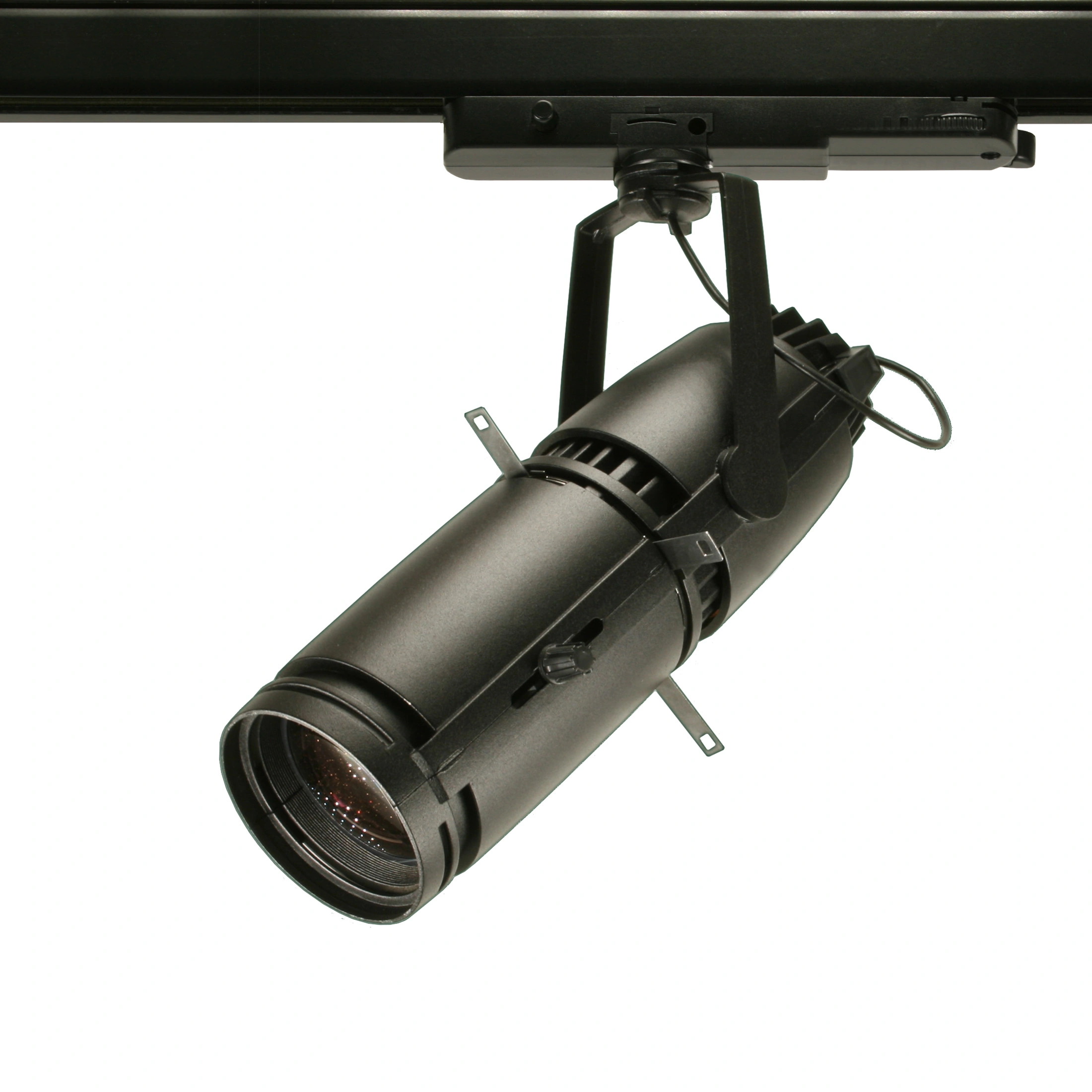

Contour spotlight with zoom lense system and the ability to project gobo patterns. With two sliding lenses, you easily adjust the size and focus on the light beam.
- Perfect color rendering CRI 98
- Fits most known 3-phase tracks
- Built in beam shaping shutters provides excellent control.
- Mounting slot position for gobo holder and gobos.
Neo Profile is available in three main models:
- Analog: Built-in dimmer
- DMX: Wireless via Lumenradio CRMX.
- DALI: Wired DALI adapter.
- Casambi: Bluetooth based control
See also Neo Profile Wide for wider zoom optics.
Technical specification
- Material
- Lamp housing of die-cast magnesium
- Adapter housing of PC 10GF
- Finish
- Grey (RAL 9006)
- Black (RAL 9005)
- White (RAL 9016)
- Weight
850 g / 1080 g
- Protection class
IP20
- Operating voltage
230V~ 50/60Hz
- Power consumption
24—26W
- Color temperature
2700K, 3000K, 4000K
- Color consistency
MacAdam Ellipse 2-step (SDCM 2)
- CRI
95 (Typical 98 CRI)
- Swivels
>365°
- Tilts
>90°
- Beam angle
Adjustable 14—27°
- Dimming
- Integrated manual dimmer 0—100%
- DMX via Lumenradio CRMX
- DALI-version (only for Global Trac PULSE Trac system or equivalent)
- Casambi (Bluetooth)
- Not compatible with mains dimmer
- Functions
Filter holder, phase selector, lockable pan/tilt
- Accessories
- Gobo holder
- Gobo patterns
- Colour and frost filters
- Gobo info
- Neo Profile has a slot for gobo holder. Due to the optics, Neo works best with indistinct gobo patterns such as foliage breakups and fire
- Gobo size
- Outer diameter: Ø 37,5 mm
- Image size: Ø 28 mm
- Thickness: 1,1 mm
- Design and idea;
Ljusdesign AB and Gouiedo AB
- Manufacturer
Ljusdesign AB, Sweden
neo Profile Analog
- With built-in local dimmer 0—100%
| Light temperature | Color | Art.no | Name | Specification | |
|---|---|---|---|---|---|
| NEOPN27C-AL-1 | Neo Profile Narrow 230V/24W 2700K | 1800lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Grey | ||
| NEOPN27C-AL-2 | Neo Profile Narrow 230V/24W 2700K | 1800lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Black | ||
| NEOPN27C-AL-3 | Neo Profile Narrow 230V/24W 2700K | 1800lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | White | ||
| NEOPN30C-AL-1 | Neo Profile Narrow 230V/24W 3000K | 1910lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Grey | ||
| NEOPN30C-AL-2 | Neo Profile Narrow 230V/24W 3000K | 1910lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Black | ||
| NEOPN30C-AL-3 | Neo Profile Narrow 230V/24W 3000K | 1910lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | White | ||
| NEOPN40C-AL-1 | Neo Profile Narrow 230V/24W 4000K | 1990lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Grey | ||
| NEOPN40C-AL-2 | Neo Profile Narrow 230V/24W 4000K | 1990lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Black | ||
| NEOPN40C-AL-3 | Neo Profile Narrow 230V/24W 4000K | 1990lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | White | ||
| NEOPN27C-AH-1 | Neo Profile Narrow 230V/26W 2700K | 1800lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Grey | ||
| NEOPN27C-AH-2 | Neo Profile Narrow 230V/26W 2700K | 1800lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Black | ||
| NEOPN27C-AH-3 | Neo Profile Narrow 230V/26W 2700K | 1800lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | White | ||
| NEOPN30C-AH-1 | Neo Profile Narrow 230V/26W 3000K | 1910lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Grey | ||
| NEOPN30C-AH-2 | Neo Profile Narrow 230V/26W 3000K | 1910lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Black | ||
| NEOPN30C-AH-3 | Neo Profile Narrow 230V/26W 3000K | 1910lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | White | ||
| NEOPN40C-AH-1 | Neo Profile Narrow 230V/26W 4000K | 1990lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Grey | ||
| NEOPN40C-AH-2 | Neo Profile Narrow 230V/26W 4000K | 1990lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | Black | ||
| NEOPN40C-AH-3 | Neo Profile Narrow 230V/26W 4000K | 1990lm, CRI 98, SDCM2, 14–27°, 3-phase, dimmer | White |
Neo Profile Casambi
- Fits standard 3-phase track
| Light temperature | Color | Art.no | Name | Specification | Color |
|---|---|---|---|---|---|
| NEOPN27C-AHC-1 | Neo Profile Narrow 230/24W Casambi 2700K | 1800lm, CRI 98, SDCM 2, 14–27°, 3-phase multi adapter | Grey | ||
| NEOPN27C-AHC-2 | Neo Profile Narrow 230/24W Casambi 2700K | 1800lm, CRI 98, SDCM 2, 14–27°, 3-phase multi adapter | Black | ||
| NEOPN27C-AHC-3 | Neo Profile Narrow 230/24W Casambi 2700K | 1800lm, CRI 98, SDCM 2, 14–27°, 3-phase multi adapter | White | ||
| NEOPN30C-AHC-1 | Neo Profile Narrow 230/24W Casambi 3000K | 1910lm, CRI 98, SDCM 2, 14–27°, 3-phase multi adapter | Grey | ||
| NEOPN30C-AHC-2 | Neo Profile Narrow 230/24W Casambi 3000K | 1910lm, CRI 98, SDCM 2, 14–27°, 3-phase multi adapter | Black | ||
| NEOPN30C-AHC-3 | Neo Profile Narrow 230/24W Casambi 3000K | 1910lm, CRI 98, SDCM 2, 14–27°, 3-phase multi adapter | White | ||
| NEOPN40C-AHC-1 | Neo Profile Narrow 230/24W Casambi 4000K | 1990lm, CRI 98, SDCM 2, 14–27°, 3-phase multi adapter | Grey | ||
| NEOPN40C-AHC-2 | Neo Profile Narrow 230/24W Casambi 4000K | 1990lm, CRI 98, SDCM 2, 14–27°, 3-phase multi adapter | Black | ||
| NEOPN40C-AHC-3 | Neo Profile Narrow 230/24W Casambi 4000K | 1990lm, CRI 98, SDCM 2, 14–27°, 3-phase multi adapter | White |
neo Profile DMX
- Wireless DMX via Lumenradio CRMX
- Fits most known 3-phase tracks
| Light temperature | Color | Art.no | Name | Specification | |
|---|---|---|---|---|---|
| NEOPN27C-AHX-1 | Neo Profile Narrow 230/26W DMX 2700K | 1800lm, CRI98, SDCM 2, 14–27°, 3-phase multi, wireless DMX | Grey | ||
| NEOPN27C-AHX-2 | Neo Profile Narrow 230/26W DMX 2700K | 1800lm, CRI98, SDCM 2, 14–27°, 3-phase multi, wireless DMX | Black | ||
| NEOPN27C-AHX-3 | Neo Profile Narrow 230/26W DMX 2700K | 1800lm, CRI98, SDCM 2, 14–27°, 3-phase multi, wireless DMX | White | ||
| NEOPN30C-AHX-1 | Neo Profile Narrow 230/26W DMX 3000K | 1910lm, CRI98, SDCM 2, 14–27°, 3-phase multi, wireless DMX | Grey | ||
| NEOPN30C-AHX-2 | Neo Profile Narrow 230/26W DMX 3000K | 1910lm, CRI98, SDCM 2, 14–27°, 3-phase multi, wireless DMX | Black | ||
| NEOPN30C-AHX-3 | Neo Profile Narrow 230/26W DMX 3000K | 1910lm, CRI98, SDCM 2, 14–27°, 3-phase multi, wireless DMX | White | ||
| NEOPN40C-AHX-1 | Neo Profile Narrow 230/26W DMX 4000K | 1990lm, CRI98, SDCM 2, 14–27°, 3-phase multi, wireless DMX | Grey | ||
| NEOPN40C-AHX-2 | Neo Profile Narrow 230/26W DMX 4000K | 1990lm, CRI98, SDCM 2, 14–27°, 3-phase multi, wireless DMX | Black | ||
| NEOPN40C-AHX-3 | Neo Profile Narrow 230/26W DMX 4000K | 1990lm, CRI98, SDCM 2, 14–27°, 3-phase multi, wireless DMX | White |
neo Profile DALI
- Compatible with DALI Pulse 3-phase track
| Light temperature | Color | Art.no | Name | Specification | |
|---|---|---|---|---|---|
| NEOPN27C-AHD-1 | Neo Profile Narrow 230/24W DALI 2700K | 1800lm, CRI 98, SDCM 2, 14–27°, 3-phase, DALI / PULSE | Grey | ||
| NEOPN27C-AHD-2 | Neo Profile Narrow 230/24W DALI 2700K | 1800lm, CRI 98, SDCM 2, 14–27°, 3-phase, DALI / PULSE | Black | ||
| NEOPN27C-AHD-3 | Neo Profile Narrow 230/24W DALI 2700K | 1800lm, CRI 98, SDCM 2, 14–27°, 3-phase, DALI / PULSE | White | ||
| NEOPN30C-AHD-1 | Neo Profile Narrow 230/24W DALI 3000K | 1910lm, CRI 98, SDCM 2, 14–27°, 3-phase, DALI / PULSE | Grey | ||
| NEOPN30C-AHD-2 | Neo Profile Narrow 230/24W DALI 3000K | 1910lm, CRI 98, SDCM 2, 14–27°, 3-phase, DALI / PULSE | Black | ||
| NEOPN30C-AHD-3 | Neo Profile Narrow 230/24W DALI 3000K | 1910lm, CRI 98, SDCM 2, 14–27°, 3-phase, DALI / PULSE | White | ||
| NEOPN40C-AHD-1 | Neo Profile Narrow 230/24W DALI 4000K | 1990lm, CRI 98, SDCM 2, 14–27°, 3-phase, DALI / PULSE | Grey | ||
| NEOPN40C-AHD-2 | Neo Profile Narrow 230/24W DALI 4000K | 1990lm, CRI 98, SDCM 2, 14–27°, 3-phase, DALI / PULSE | Black | ||
| NEOPN40C-AHD-3 | Neo Profile Narrow 230/24W DALI 4000K | 1990lm, CRI 98, SDCM 2, 14–27°, 3-phase, DALI / PULSE | White |
neo Profile Solo
- For constant current, max 600 mA / 27W.
| Light temperature | Color | Art.no | Name | Specification | |
|---|---|---|---|---|---|
| NEOPN27C-CCS-1 | Neo Profile Narrow CC/600mA Solo 2700K | 1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, 14–27°, 1m cable | Grey | ||
| NEOPN27C-CCS-2 | Neo Profile Narrow CC/600mA Solo 2700K | 1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, 14–27°, 1m cable | Black | ||
| NEOPN27C-CCS-3 | Neo Profile Narrow CC/600mA Solo 2700K | 1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, 14–27°, 1m cable | White | ||
| NEOPN30C-CCS-1 | Neo Profile Narrow CC/600mA Solo 3000K | 1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, 14–27°, 1m cable | Grey | ||
| NEOPN30C-CCS-2 | Neo Profile Narrow CC/600mA Solo 3000K | 1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, 14–27°, 1m cable | Black | ||
| NEOPN30C-CCS-3 | Neo Profile Narrow CC/600mA Solo 3000K | 1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, 14–27°, 1m cable | White | ||
| NEOPN40C-CCS-1 | Neo Profile Narrow CC/600mA Solo 4000K | 1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, 14–27°, 1m cable | Grey | ||
| NEOPN40C-CCS-2 | Neo Profile Narrow CC/600mA Solo 4000K | 1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, 14–27°, 1m cable | Black | ||
| NEOPN40C-CCS-3 | Neo Profile Narrow CC/600mA Solo 4000K | 1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, 14–27°, 1m cable | White |
neo Profile Accessories
| Art.no | Name | Specification |
|---|---|---|
| NEO99 | Gobo Pattern Metal | Standard Rosco E-size |
| NEO92 | Gobo Holder for Metal Gobo | E-size, Max thickness 1,1mm |
| NEO92X | Gobo Holder for Glass Gobo | E-size, Max thickness 1,1mm |
| NEO98 | Neo Filter | Rosco/Lee 70x70 mm |
