Seamless and spotless light
- Smooth and dot-free illumination
- Rich colors with high CRI
- Three color temperatures
LED Strip COB is designed for seamless integration. Pair with LED Profiles for a clean installation. Choose from three light effects and three different color temperatures to create the perfect ambient lighting.
Kompatibilitet
LED Strip Cob finns för följande system:
LED-profil
(Konstantstöm)
Teknisk specifikation
- Operating voltage
12V DC
- Power consumption
5W, 10W and 15W / meters
- LED Lumen
95-110lm / W
- Color temperature
and
- CRI
95
- Protection
IP20
- Dimmable
Via PWM dimmer
- Beam angle
Constant light 120 degrees
- Maximum length
5 meters

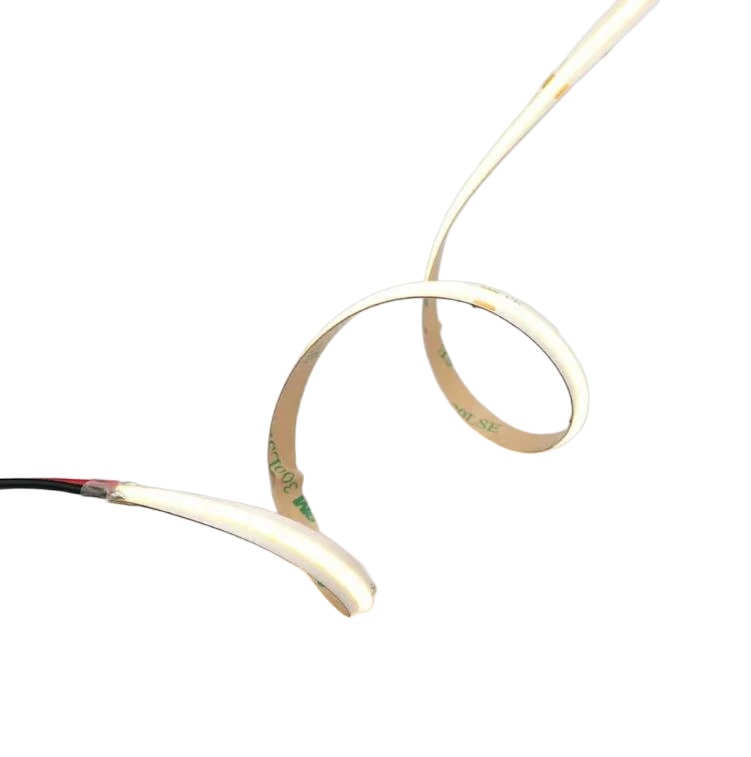

LED Strip COB
Cooling surface is required, e.g. LED profile.
| Light temperature | Artikel | Produkt | Finesser |
|---|---|---|---|
| STR27-COB-5-R | LEDStrip COB, CRI 95+, 2700K, 12V, 5W/m | 5m rulle, IP20, Kap=25mm | |
| STR27-COB-10-R | LEDStrip COB, CRI 95+, 2700K, 12V, 10W/m | 5m rulle, IP20, Kap=25mm | |
| STR27-COB-15-R | LEDStrip COB, CRI 95+, 2700K, 12V, 15W/m | 5m rulle, IP20, Kap=25mm | |
| STR30-COB-5-R | LEDStrip COB, CRI 95+, 3000K, 12V, 5W/m | 5m rulle, IP20, Kap=25mm | |
| STR30-COB-10-R | LEDStrip COB, CRI 95+, 3000K, 12V, 10W/m | 5m rulle, IP20, Kap=25mm | |
| STR30-COB-15-R | LEDStrip COB, CRI 95+, 3000K, 12V, 15W/m | 5m rulle, IP20, Kap=25mm | |
| STR40-COB-5-R | LEDStrip COB, CRI 95+, 4000K, 12V, 5W/m | 5m rulle, IP20, Kap=25mm | |
| STR40-COB-10-R | LEDStrip COB, CRI 95+, 4000K, 12V, 10W/m | 5m rulle, IP20, Kap=25mm | |
| STR40-COB-15-R | LEDStrip COB, CRI 95+, 4000K, 12V, 15W/m | 5m rulle, IP20, Kap=25mm |
LED-strip Profiler
| Color | Art.no | Description |
|---|---|---|
| PRO-LO-1 | LED-Profil låg | |
| PRO-LO-2 | LED-Profil låg | |
| PRO-LO-3 | LED-Profil låg | |
| LT-SLIM-O | Opalplexi för LED-strip |
