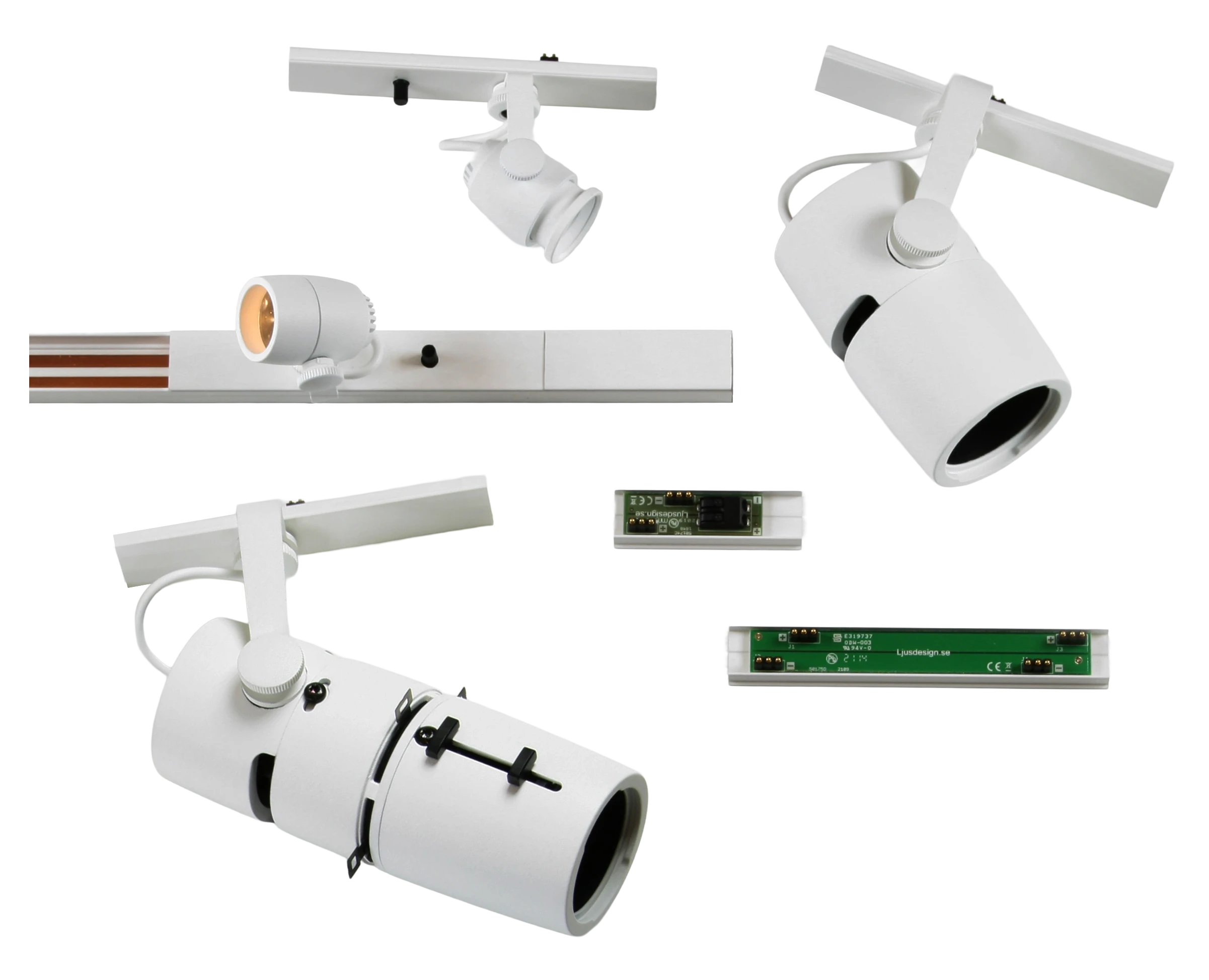

Pico Trac

Miniature track system

  • Liten fysisk storlek
  • Sömlöst slutresultat med inkluderade lock
  • Lokal dimmer på alla Pico-armaturer

Med flexibilitet i åtanke har vi skapat detta diskreta skensystem. Varje armatur kan flyttas runt, riktas om och dimmas inviduellt.

Skenan bygger på vår låga LED-profil och har påmonterade ledare för 12V LED.

För ljussättning av föremål i montrar och andra snäva utrymmen.

  • Tillåter upp till 30 armaturer per skena.
  • Dimning sker inviduellt på armaturerna.
  • Pico Trac är endast 10mm hög.

Armaturer som passar systemet: Arty-serien, Dinkey-serien, Gizmo-serien och Gimmick.

Dokument

Teknisk specifikation

Material

Extruderad aluminium, ledare av 1mm² koppar

Finish
  • Grå (RAL 7040)
  • Svart (RAL 9005)
  • Vit (RAL 9016)
Storlek

Måttbeställda längder upp till 3 meter

Montage

Clips

Typ

1-fasskena 12V DC max 5A

Kapslingsklass

IP20

Pico Trac Low

  • 12V DC Max 5A
  • Cover and clips are included
  • Pre-cut according to customer’s dimensions
ColorArt. noBenämningMått (BxHxL)Färg
PTL-1Pico Trac Low 12V17x10mm, length max 3000mm, incl. cover and clipsGrey
PTL-2Pico Trac Low 12V17x10mm, length max 3000mm, incl. cover and clipsBlack
PTL-3Pico Trac Low 12V17x10mm, length max 3000mm, incl. cover and clipsWhite
PT-41-1End Cap LowAdds 2mmGrey
PT-41-2End Cap LowAdds 2mmBlack
PT-41-3End Cap LowAdds 2mmWhite

Pico Trac accessories

ColorArt. noBenämningMått (BxL)Specifikation
PT-11-1Pico Trac Power Feed, grey60x17mm12V max 10A.
PT-11-2Pico Trac Power Feed, black60x17mm
PT-11-3Pico Trac Power Feed, white60x17mm
LFL-12-1Pico Trac Mounting Clips, grey17x10mmIncl. screw
LFL-12-2Pico Trac Mounting Clips, black17x10mm
LFL-12-3Pico Trac Mounting Clips, white17x10mm
PT-14-1Pico Trac Straight Joiner, grey17x100mmConnection between two tracks
PT-14-2Pico Trac Straight Joiner, black17x100mm
PT-14-3Pico Trac Straight Joiner, white17x100mm
PT-STICKPicoStickTool for PicoTrac fixtures

Power supply for Pico Trac

  • Short-circuit and over temperature protected
Art. noBenämningSpecifikation
SNP15-12VLPower Supply, 12V 15W, 1,25A123 x 44 x 20 mm (LxWxH)
SNP30-12VFPower Supply, 12V 30W, 2,5A160 x 58 x 18 mm (LxWxH)
SNP75-12VL-EPower Supply, 12V 70W, 5,83A170 x 45 x 29 mm (LxWxH)
SNP100-12VLPower Supply, 12V 100W, 8,3A180 x 59 x 32 mm (LxWxH)
SNP150-12VLPower Supply, 12V 132W, 11,0A180 x 59 x 32 mm (LxWxH)

Connection cables for Pico Trac

ColorArt. noBenämningSpecifikation
H03VV-F-2Cable SKK, Round, Black2x0,75
H03VV-F-3Cable SKK, Round, White2x0,75
SKX075-2Cable SKX, Oval, Black2x0,75
SKX075-3Cable SKX, Oval, White2x0,75
EP065-1Elcuflex FM, Grey2x0,65
EP065-2Elcuflex FM, Black2x0,65

Arty Accent 4W / Pico Trac

  • För Pico Trac-skena. Inbyggd dimmer (0–100%).
Light temperatureColorArt.noNameSpecificationColor
ARTACC27B-PT-1Arty Accent 12V DC/4W Pico Trac 2700K250lm, CRI 90, lins N, dimmerGrå
ARTACC27B-PT-2Arty Accent 12V DC/4W Pico Trac 2700K250lm, CRI 90, lins N, dimmerSvart
ARTACC27B-PT-3Arty Accent 12V DC/4W Pico Trac 2700K250lm, CRI 90, lins N, dimmerVit
ARTACC30B-PT-1Arty Accent 12V DC/4W Pico Trac 3000K260lm, CRI 90, lins N, dimmerGrå
ARTACC30B-PT-2Arty Accent 12V DC/4W Pico Trac 3000K260lm, CRI 90, lins N, dimmerSvart
ARTACC30B-PT-3Arty Accent 12V DC/4W Pico Trac 3000K260lm, CRI 90, lins N, dimmerVit
ARTACC40B-PT-1Arty Accent 12V DC/4W Pico Trac 4000K300lm, CRI 80, lins N, dimmerGrå
ARTACC40B-PT-2Arty Accent 12V DC/4W Pico Trac 4000K300lm, CRI 80, lins N, dimmerSvart
ARTACC40B-PT-3Arty Accent 12V DC/4W Pico Trac 4000K300lm, CRI 80, lins N, dimmerVit

Arty Accent 8W / Pico Trac

  • För Pico Trac-skena. Inbyggd dimmer (0–100%).
Light temperatureColorArt.noNameSpecificationColor
ARTACC27C-PT-1Arty Accent 12V DC/8W Pico Trac 2700K480lm, CRI 90, lins N, dimmerGrå
ARTACC27C-PT-2Arty Accent 12V DC/8W Pico Trac 2700K480lm, CRI 90, lins N, dimmerSvart
ARTACC27C-PT-3Arty Accent 12V DC/8W Pico Trac 2700K480lm, CRI 90, lins N, dimmerVit
ARTACC30C-PT-1Arty Accent 12V DC/8W Pico Trac 3000K510lm, CRI 90, lins N, dimmerGrå
ARTACC30C-PT-2Arty Accent 12V DC/8W Pico Trac 3000K510lm, CRI 90, lins N, dimmerSvart
ARTACC30C-PT-3Arty Accent 12V DC/8W Pico Trac 3000K510lm, CRI 90, lins N, dimmerVit
ARTACC40C-PT-1Arty Accent 12V DC/8W Pico Trac 4000K540lm, CRI 90, lins N, dimmerGrå
ARTACC40C-PT-2Arty Accent 12V DC/8W Pico Trac 4000K540lm, CRI 90, lins N, dimmerSvart
ARTACC40C-PT-3Arty Accent 12V DC/8W Pico Trac 4000K540lm, CRI 90, lins N, dimmerVit

Arty Zoom / Pico Trac

  • För Pico Trac-skena. Inbyggd dimmer (0–100%).
Light temperatureColorArt.noNameSpecification
ARTZ27C-PT-1Arty Zoom 12V DC/8W Pico Trac 2700K480lm, CRI 90, 7-45°, dimmerGrå
ARTZ27C-PT-2Arty Zoom 12V DC/8W Pico Trac 2700K480lm, CRI 90, 7-45°, dimmerSvart
ARTZ27C-PT-3Arty Zoom 12V DC/8W Pico Trac 2700K480lm, CRI 90, 7-45°, dimmerVit
ARTZ30C-PT-1Arty Zoom 12V DC/8W Pico Trac 3000K510lm, CRI 90, 7-45°, dimmerGrå
ARTZ30C-PT-2Arty Zoom 12V DC/8W Pico Trac 3000K510lm, CRI 90, 7-45°, dimmerSvart
ARTZ30C-PT-3Arty Zoom 12V DC/8W Pico Trac 3000K510lm, CRI 90, 7-45°, dimmerVit
ARTZ40C-PT-1Arty Zoom 12V DC/8W Pico Trac 4000K540lm, CRI 90, 7-45°, dimmerGrå
ARTZ40C-PT-2Arty Zoom 12V DC/8W Pico Trac 4000K540lm, CRI 90, 7-45°, dimmerSvart
ARTZ40C-PT-3Arty Zoom 12V DC/8W Pico Trac 4000K540lm, CRI 90, 7-45°, dimmerVit

Arty Framer / Pico Trac

  • För Pico Trac-skena. Inbyggd dimmer (0–100%).
Light temperatureColorArt.noNameSpecification
ARTF27C-PT-1Arty Framer 12V DC/8W Pico Trac 2700K480lm, CRI 90, 25-50°, dimmerGrå
ARTF27C-PT-2Arty Framer 12V DC/8W Pico Trac 2700K480lm, CRI 90, 25-50°, dimmerSvart
ARTF27C-PT-3Arty Framer 12V DC/8W Pico Trac 2700K480lm, CRI 90, 25-50°, dimmerVit
ARTF30C-PT-1Arty Framer 12V DC/8W Pico Trac 3000K510lm, CRI 90, 25-50°, dimmerGrå
ARTF30C-PT-2Arty Framer 12V DC/8W Pico Trac 3000K510lm, CRI 90, 25-50°, dimmerSvart
ARTF30C-PT-3Arty Framer 12V DC/8W Pico Trac 3000K510lm, CRI 90, 25-50°, dimmerVit
ARTF40C-PT-1Arty Framer 12V DC/8W Pico Trac 4000K540lm, CRI 90, 25-50°, dimmerGrå
ARTF40C-PT-2Arty Framer 12V DC/8W Pico Trac 4000K540lm, CRI 90, 25-50°, dimmerSvart
ARTF40C-PT-3Arty Framer 12V DC/8W Pico Trac 4000K540lm, CRI 90, 25-50°, dimmerVit

Dinkey 12V DC / Pico Trac

  • För Pico Trac-skena. Inbyggd dimmer (0–100%).
Light temperatureColorArt.noNameSpecificationColour
DIN27-PT-1Dinkey 12V DC/4W Pico Trac 2700K250lm, CRI 90, lins N, dimmerGrå
DIN27-PT-2Dinkey 12V DC/4W Pico Trac 2700K250lm, CRI 90, lins N, dimmerSvart
DIN27-PT-3Dinkey 12V DC/4W Pico Trac 2700K250lm, CRI 90, lins N, dimmerVit
DIN30-PT-1Dinkey 12V DC/4W Pico Trac 3000K250lm, CRI 90, lins N, dimmerGrå
DIN30-PT-2Dinkey 12V DC/4W Pico Trac 3000K250lm, CRI 90, lins N, dimmerSvart
DIN30-PT-3Dinkey 12V DC/4W Pico Trac 3000K250lm, CRI 90, lins N, dimmerVit
DIN40-PT-1Dinkey 12V DC/4W Pico Trac 4000K250lm, CRI 90, lins N, dimmerGrå
DIN40-PT-2Dinkey 12V DC/4W Pico Trac 4000K250lm, CRI 90, lins N, dimmerSvart
DIN40-PT-3Dinkey 12V DC/4W Pico Trac 4000K250lm, CRI 90, lins N, dimmerVit

Gizmo 12V DC / PICO TRAC

För Pico Trac-skena. Inbyggd dimmer (0–100%).

Light temperatureColorArt.noBenämningSpecifikationFärg
GIZ22-PT-1Gizmo 12V DC/3W Pico Trac 2200K190lm, CRI 80, lins N, dimmerGrå
GIZ22-PT-2Gizmo 12V DC/3W Pico Trac 2200K190lm, CRI 80, lins N, dimmerSvart
GIZ22-PT-3Gizmo 12V DC/3W PicoTrac 2200K190lm, CRI 80, lins N, dimmerVit
GIZ27-PT-1Gizmo 12V DC/3W Pico Trac 2700K180lm, CRI 90, lins N, dimmerGrå
GIZ27-PT-2Gizmo 12V DC/3W Pico Trac 2700K180lm, CRI 90, lins N, dimmerSvart
GIZ27-PT-3Gizmo 12V DC/3W Pico Trac 2700K180lm, CRI 90, lins N, dimmerVit
GIZ30-PT-1Gizmo 12V DC/3W Pico Trac 3000K190lm, CRI 90, lins N, dimmerGrå
GIZ30-PT-2Gizmo 12V DC/3W Pico Trac 3000K190lm, CRI 90, lins N, dimmerSvart
GIZ30-PT-3Gizmo 12V DC/3W Pico Trac 3000K190lm, CRI 90, lins N, dimmerVit
GIZ40-PT-1Gizmo 12V DC/3W Pico Trac 4000K200lm, CRI 90, lins N, dimmerGrå
GIZ40-PT-2Gizmo 12V DC/3W Pico Trac 4000K200lm, CRI 90, lins N, dimmerSvart
GIZ40-PT-3Gizmo 12V DC/3W Pico Trac 4000K200lm, CRI 90, lins N, dimmerVit

Gizmo Zoom 12V DC / Pico Trac

För Pico Trac-skena. Inbyggd dimmer (0–100%).

Light temperatureColorArt.noNameSpecificationColor
GIZZ22-PT-1Gizmo Zoom 12V DC/3W Pico Trac 2200K190lm, CRI 80, zoom 5–30°, dimmerGrå
GIZZ22-PT-2Gizmo Zoom 12V DC/3W Pico Trac 2200K190lm, CRI 80, zoom 5–30°, dimmerSvart
GIZZ22-PT-3Gizmo Zoom 12V DC/3W Pico Trac 2200K190lm, CRI 80, zoom 5–30°, dimmerVit
GIZZ22-PT-4Gizmo Zoom 12V DC/3W Pico Trac 2200K190lm, CRI 80, zoom 5–30°, dimmerMässing
GIZZ27-PT-1Gizmo Zoom 12V DC/3W Pico Trac 2700K180lm, CRI 90, zoom 5–30°, dimmerGrå
GIZZ27-PT-2Gizmo Zoom 12V DC/3W Pico Trac 2700K180lm, CRI 90, zoom 5–30°, dimmerSvart
GIZZ27-PT-3Gizmo Zoom 12V DC/3W Pico Trac 2700K180lm, CRI 90, zoom 5–30°, dimmerVit
GIZZ27-PT-4Gizmo Zoom 12V DC/3W Pico Trac 2700K180lm, CRI 90, zoom 5–30°, dimmerMässing
GIZZ30-PT-1Gizmo Zoom 12V DC/3W Pico Trac 3000K190lm, CRI 90, zoom 5–30°, dimmerGrå
GIZZ30-PT-2Gizmo Zoom 12V DC/3W Pico Trac 3000K190lm, CRI 90, zoom 5–30°, dimmerSvart
GIZZ30-PT-3Gizmo Zoom 12V DC/3W Pico Trac 3000K190lm, CRI 90, zoom 5–30°, dimmerVit
GIZZ30-PT-4Gizmo Zoom 12V DC/3W Pico Trac 3000K190lm, CRI 90, zoom 5–30°, dimmerMässing
GIZZ40-PT-1Gizmo Zoom 12V DC/3W Pico Trac 4000K200lm, CRI 90, zoom 5–30°, dimmerGrå
GIZZ40-PT-2Gizmo Zoom 12V DC/3W Pico Trac 4000K200lm, CRI 90, zoom 5–30°, dimmerSvart
GIZZ40-PT-3Gizmo Zoom 12V DC/3W Pico Trac 4000K200lm, CRI 90, zoom 5–30°, dimmerVit
GIZZ40-PT-4Gizmo Zoom 12V DC/3W Pico Trac 4000K200lm, CRI 90, zoom 5–30°, dimmerMässing

Gimmick 12V DC / Pico Trac

För Pico Trac-skena. Inbyggd dimmer (0–100%).

Light temperatureColorArt.nrNamnSpecificationFärg
GIM27-PT-1Gimmick 12V DC/2W Pico Trac 2700K100lm, CRI 90, lins W, dimmerGrå
GIM27-PT-2Gimmick 12V DC/2W Pico Trac 2700K100lm, CRI 90, lins W, dimmerSvart
GIM30-PT-1Gimmick 12V DC/2W Pico Trac 3000K110lm, CRI 90, lins W, dimmerGrå
GIM30-PT-2Gimmick 12V DC/2W Pico Trac 3000K110lm, CRI 90, lins W, dimmerSvart
GIM40-PT-1Gimmick 12V DC/2W Pico Trac 4000K110lm, CRI 90, lins W, dimmerGrå
GIM40-PT-2Gimmick 12V DC/2W Pico Trac 4000K110lm, CRI 90, lins W, dimmerSvart
