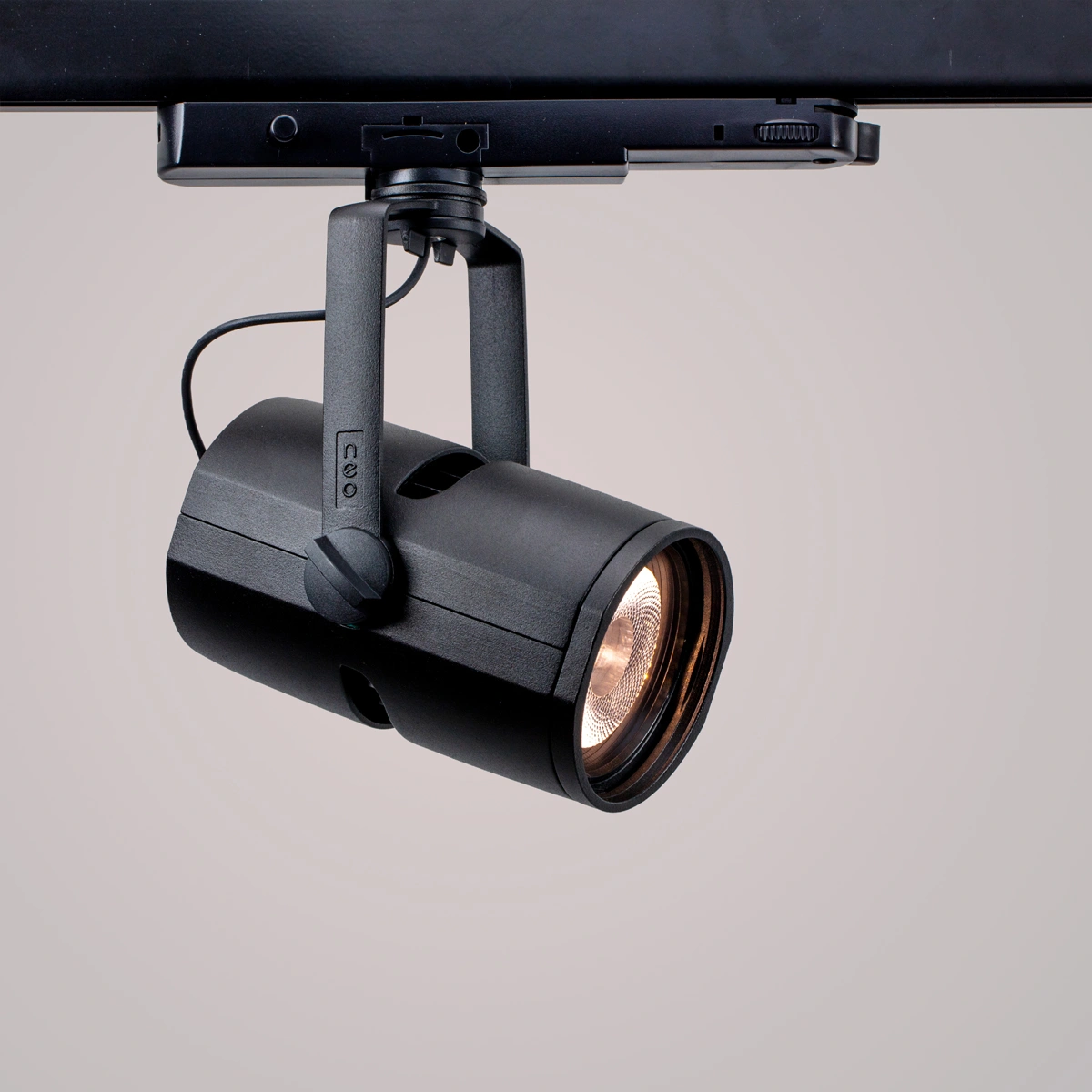

Neo Accent

Neo Accent är en kraftfull spotlight utvecklad för museer och konstgallerier.

Ljusstyrkan justeras med potentiometer på adaptern, med en flimmerfri mjuk dimkurva ner till 0%.

Den har en front som kan skjutas fram för att få ytterligare bländskydd. Det finns fem ljuseffektiva TIR-linser som tillbehör:

  • 14° Real spot
  • 17° Smooth spot
  • 24° Medium
  • 34° Wide
  • 43° Very Wide

Neo Accent finns i fyra varianter:

  • Analog: Inbyggd dimmer
  • DMX: Trådlös via Lumenradio CRMX
  • DALI: För DALI 3-fasskenor
  • Casambi: Blåtandsbaserat trådlöst styrprotokoll

Analog och DMX-versionerna har inbyggd dimmer, vilket är bekvämt när man riggar och riktar ljus!

Teknisk specifikation

Material
  • Lamphus i pressgjuten aluminium,
  • Adapter i PC 10 GF,
  • TIR-lins i PMMA
Färg
  • Grå (RAL 7040)
  • Svart (RAL 9005)
  • Vit (RAL 9016)
System

3-phase circuit track

Kapslingsklass

IP20

Driftspänning

230V~ 50/60Hz

Strömförbrukning

24–26W

Livslängd LED

L70 > 55 000h enligt TM-21 kalkyl (Ta 25°)

LED failure rate

0,1% 50 000h

Spridningsvinkel

Utbytbara linser

Färgtemperatur

2700K, 3000K, 4000K

Color consistency

MacAdam Ellipse 2-step (SDCM 2)

CRI

95 (Typical 98 CRI)

Vridbar

>365°

Riktbar

>90°

Dimning
  • Inbyggd dimmer 0100%
  • DMX via Lumenradio CRMX
  • DALI-version (endast Global Trac PULSE Trac system or motsvarande)
  • Casambi (Bluetooth)
  • Inte kompatibel med primärdimning
Funktioner

Filter holder, Phase selector, Toolless pan, Tilt lock

Tillbehör

Färg och- frostfilter

Design och idé

Ljusdesign AB och Gouiedo AB

Tillverkare

Ljusdesign AB, Sverige

Filer

Ljusmätningar

Filer för ljusplanering

neo Accent Analog

  • Analog version with built-in dimmer.
Art.noNameSpecification
2700K NEOACC27C-AL-1Neo Accent 230V/24W 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapter, dim.Grey
 NEOACC27C-AL-2Neo Accent 230V/24W 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapter, dim.Black
 NEOACC27C-AL-3Neo Accent 230V/24W 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapter, dim.White
3000K NEOACC30C-AL-1Neo Accent 230V/24W 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, dim.Grey
 NEOACC30C-AL-2Neo Accent 230V/24W 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, dim.Black
 NEOACC30C-AL-3Neo Accent 230V/24W 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, dim.White
4000K NEOACC40C-AL-1Neo Accent 230V/24W 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, dim.Grey
 NEOACC40C-AL-2Neo Accent 230V/24W 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, dim.Black
 NEOACC40C-AL-3Neo Accent 230V/24W 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, dim.White

Neo Accent Casambi

  • Fits standard 3-phase track
Art.noNameSpecification
2700K NEOACC27C-AHC-1Neo Accent 230V/24W Casambi 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapterGrey
 NEOACC27C-AHC-2Neo Accent 230V/24W Casambi 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapterBlack
 NEOACC27C-AHC-3Neo Accent 230V/24W Casambi 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapterWhite
3000K NEOACC30C-AHC-1Neo Accent 230V/24W Casambi 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapterGrey
 NEOACC30C-AHC-2Neo Accent 230V/24W Casambi 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapterBlack
 NEOACC30C-AHC-3Neo Accent 230V/24W Casambi 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapterWhite
4000K NEOACC40C-AHC-1Neo Accent 230V/24W Casambi 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapterGrey
 NEOACC40C-AHC-2Neo Accent 230V/24W Casambi 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapterBlack
 NEOACC40C-AHC-3Neo Accent 230V/24W Casambi 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapterWhite

neo Accent DMX

  • The luminaire is provided with wireless DMX via Lumenradio CRMX.
  • Fits most known 3-phase tracks.
Art.noNameSpecificationColor
2700K NEOACC27C-AHX-1Neo Accent 230V/24W DMX 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapter, wireless DMXGrey
 NEOACC27C-AHX-2Neo Accent 230V/24W DMX 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapter, wireless DMXBlack
 NEOACC27C-AHX-3Neo Accent 230V/24W DMX 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapter, wireless DMXWhite
3000K NEOACC30C-AHX-1Neo Accent 230V/24W DMX 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, wireless DMXGrey
 NEOACC30C-AHX-2Neo Accent 230V/24W DMX 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, wireless DMXBlack
 NEOACC30C-AHX-3Neo Accent 230V/24W DMX 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, wireless DMXWhite
4000K NEOACC40C-AHX-1Neo Accent 230V/24W DMX 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, wireless DMXGrey
 NEOACC40C-AHX-2Neo Accent 230V/24W DMX 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, wireless DMXBlack
 NEOACC40C-AHX-3Neo Accent 230V/24W DMX 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, wireless DMXWhite

neo Accent DALI

  • Compatible with DALI Pulse 3-phase track
Art.noNameSpecificationColor
2700K NEOACC27C-AHD-1Neo Accent 230V/24W DALI 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapter, DALI / PULSEGrey
 NEOACC27C-AHD-2Neo Accent 230V/24W DALI 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapter, DALI / PULSEBlack
 NEOACC27C-AHD-3Neo Accent 230V/24W DALI 2700KCRI 98, SDCM 2, lens M, 3-phase multi adapter, DALI / PULSEWhite
3000K NEOACC30C-AHD-1Neo Accent 230V/24W DALI 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, DALI / PULSEGrey
 NEOACC30C-AHD-2Neo Accent 230V/24W DALI 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, DALI / PULSEBlack
 NEOACC30C-AHD-3Neo Accent 230V/24W DALI 3000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, DALI / PULSEWhite
4000K NEOACC40C-AHD-1Neo Accent 230V/24W DALI 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, DALI / PULSEGrey
 NEOACC40C-AHD-2Neo Accent 230V/24W DALI 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, DALI / PULSEBlack
 NEOACC40C-AHD-3Neo Accent 230V/24W DALI 4000KCRI 98, SDCM 2, lens M, 3-phase multi adapter, DALI / PULSEWhite

Neo Accent Solo

  • For constant current, max 600 mA / 24W.
Art.noNameSpecificationColor
2700K NEOACC27C-CCS-1Neo Accent CC/600mA Solo 2700KVf=36V, 600mA, CRI 98, SDCM 2, lens M, 1m cableGrey
 NEOACC27C-CCS-2Neo Accent CC/600mA Solo 2700KVf=36V, 600mA, CRI 98, SDCM 2, lens M, 1m cableBlack
 NEOACC27C-CCS-3Neo Accent CC/600mA Solo 2700KVf=36V, 600mA, CRI 98, SDCM 2, lens M, 1m cableWhite
3000K NEOACC30C-CCS-1Neo Accent CC/600mA Solo 3000KVf=36V, 600mA, CRI 98, SDCM 2, lens M, 1m cableGrey
 NEOACC30C-CCS-2Neo Accent CC/600mA Solo 3000KVf=36V, 600mA, CRI 98, SDCM 2, lens M, 1m cableBlack
 NEOACC30C-CCS-3Neo Accent CC/600mA Solo 3000KVf=36V, 600mA, CRI 98, SDCM 2, lens M, 1m cableWhite
4000K NEOACC40C-CCS-1Neo Accent CC/600mA Solo 4000KVf=36V, 600mA, CRI 98, SDCM 2, lens M, 1m cableGrey
 NEOACC40C-CCS-2Neo Accent CC/600mA Solo 4000KVf=36V, 600mA, CRI 98, SDCM 2, lens M, 1m cableBlack
 NEOACC40C-CCS-3Neo Accent CC/600mA Solo 4000KVf=36V, 600mA, CRI 98, SDCM 2, lens M, 1m cableWhite
