Neo Profile Wide har ersatts av Neo Framer Wide.

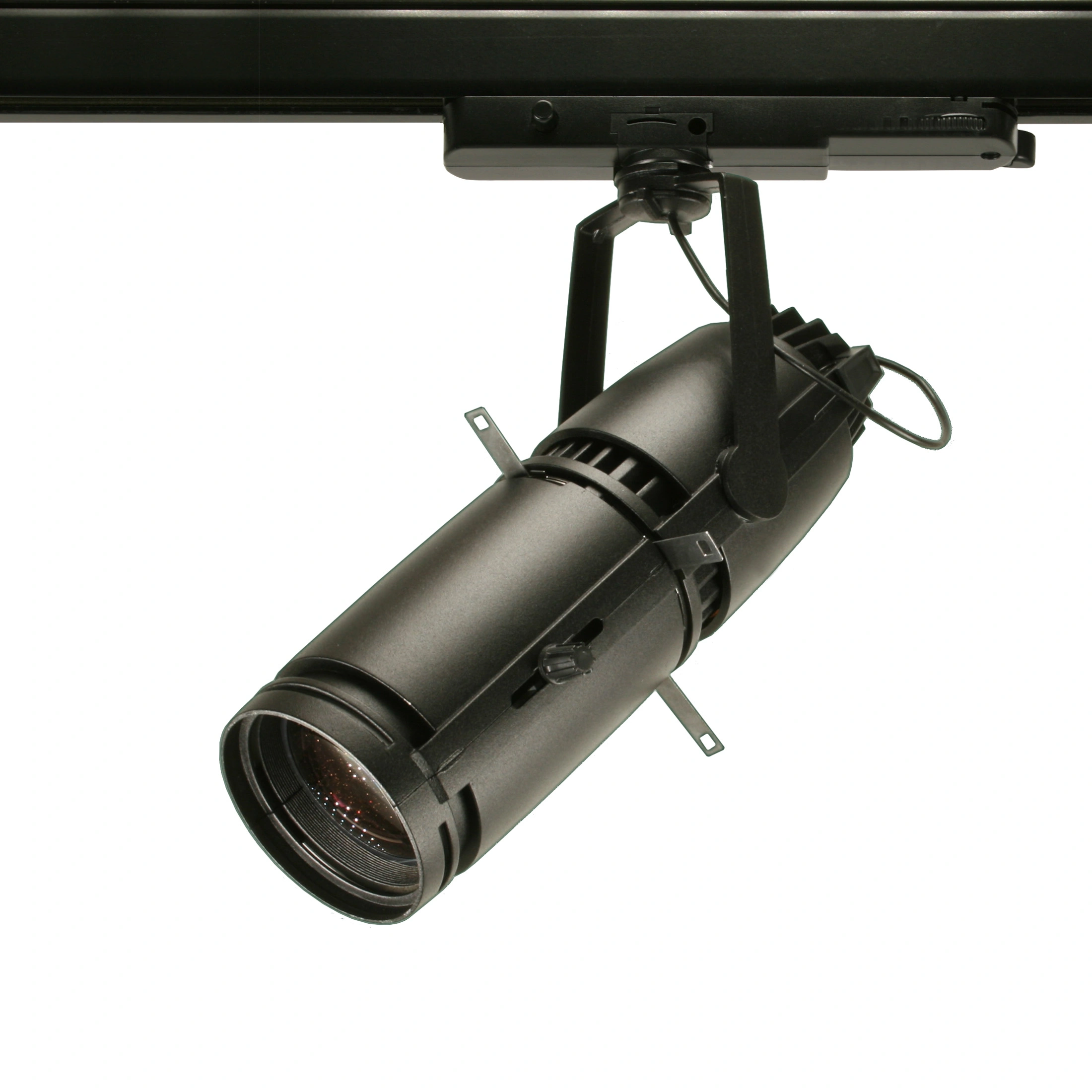

Neo Profile Wide är en vidareutveckling på linsstrålkastaren Neo Profile Narrow.
Ett helt nytt linssystem möjliggör mycket större spridningsvinklar än tidigare.
- Perfekt färgåtergivning CRI 98
- Passa alla kända 3-fas skenor
- De inbyggda knivarna ger mycket god kontroll över ljusbilden
- Gobohållare och gobo som tillval
Neo Profile Wide finns i tre huvudsakliga varianter:
- Analog: Inbyggd dimmer
- DMX: Trådlöst via Lumenradio CRMX
- DALI: Trådbunden styrning med DALI
- Casambi: Bluetooth-baserad styrning
Neo Profile Wide har ersatts av Neo Framer Wide.
Teknisk specifikation
- Material
- Armaturhus i pressgjuten magnesium
- Adapter i PC 10GF
- Linser i antireflexbehandlat optiskt glas.
- Färg
- Grå (RAL 9006)
- Svart (RAL 9005)
- Vit (RAL 9016)
- Vikt
850 g / 1080 g
- Kapslingsklass
IP20
- Driftspänning
230V~ 50/60Hz
- Strömförbrukning
24—26W
- Färgtemperatur
2700K, 3000K, 4000K
- CRI
95 (Typical 98 CRI)
- Vridbar
>365°
- Riktbar
>90°
- Spridning
Regleras steglöst 20—45°
- Dimning
- Inbyggd dimmer 0—100%
- DMX via Lumenradio CRMX
- DALI-version (only for Global Trac PULSE Trac system or equivalent)
- Casambi (Bluetooth)
- Inte kompatibel med primärdimning
- Funktioner
Filterhållare, fasväljare, tilt- och panlåsning
- Tillbehör
- Gobohållare och gobo
- Färg och- frostfilter
- Gobo info
- Neo Profile har stöd för goboprojicering. Den fungerar bäst med otydliga gobomönster såsom lövverk och eld
- Gobo storlek
- Ytterdiameter: Ø 37,5 mm
- Image size: Ø 28 mm
- Tjocklek: 1,1 mm
- Design och idé
LjusDesign AB och Gouiedo AB
- Tillverkare
LjusDesign AB, Sverige
neo Profile Wide Analog
- With built-in local dimmer 0–100%
| Light temperature | Color | Art.no | Name | Specification | |
|---|---|---|---|---|---|
| NEOPW27C-AL-1 | Neo Profile Wide 230/24W 2700K | 1800lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Grey | ||
| NEOPW27C-AL-2 | Neo Profile Wide 230/24W 2700K | 1800lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Black | ||
| NEOPW27C-AL-3 | Neo Profile Wide 230/24W 2700K | 1800lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | White | ||
| NEOPW30C-AL-1 | Neo Profile Wide 230/24W 3000K | 1910lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Grey | ||
| NEOPW30C-AL-2 | Neo Profile Wide 230/24W 3000K | 1910lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Black | ||
| NEOPW30C-AL-3 | Neo Profile Wide 230/24W 3000K | 1910lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | White | ||
| NEOPW40C-AL-1 | Neo Profile Wide 230/24W 4000K | 1990lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Grey | ||
| NEOPW40C-AL-2 | Neo Profile Wide 230/24W 4000K | 1990lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Black | ||
| NEOPW40C-AL-3 | Neo Profile Wide 230/24W 4000K | 1990lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | White | ||
| NEOPW27C-AH-1 | Neo Profile Wide 230/26W 2700K | 1800lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Grey | ||
| NEOPW27C-AH-2 | Neo Profile Wide 230/26W 2700K | 1800lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Black | ||
| NEOPW27C-AH-3 | Neo Profile Wide 230/26W 2700K | 1800lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | White | ||
| NEOPW30C-AH-1 | Neo Profile Wide 230/26W 3000K | 1910lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Grey | ||
| NEOPW30C-AH-2 | Neo Profile Wide 230/26W 3000K | 1910lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Black | ||
| NEOPW30C-AH-3 | Neo Profile Wide 230/26W 3000K | 1910lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | White | ||
| NEOPW40C-AH-1 | Neo Profile Wide 230/26W 4000K | 1990lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Grey | ||
| NEOPW40C-AH-2 | Neo Profile Wide 230/26W 4000K | 1990lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | Black | ||
| NEOPW40C-AH-3 | Neo Profile Wide 230/26W 4000K | 1990lm, CRI 98, SDCM2, 20–45°, 3-phase, dimmer | White |
neo Profile Wide Casambi
- Fits standard 3-phase track
| Light temperature | Color | Art.no | Name | Specification | |
|---|---|---|---|---|---|
| NEOPW27C-AHC-1 | Neo Profile Wide 230/24W Casambi 2700K | 1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi adapter | Grey | ||
| NEOPW27C-AHC-2 | Neo Profile Wide 230/24W Casambi 2700K | 1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi adapter | Black | ||
| NEOPW27C-AHC-3 | Neo Profile Wide 230/24W Casambi 2700K | 1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi adapter | White | ||
| NEOPW30C-AHC-1 | Neo Profile Wide 230/24W Casambi 3000K | 1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi adapter | Grey | ||
| NEOPW30C-AHC-2 | Neo Profile Wide 230/24W Casambi 3000K | 1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi adapter | Black | ||
| NEOPW30C-AHC-3 | Neo Profile Wide 230/24W Casambi 3000K | 1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi adapter | White | ||
| NEOPW40C-AHC-1 | Neo Profile Wide 230/24W Casambi 4000K | 1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi adapter | Grey | ||
| NEOPW40C-AHC-2 | Neo Profile Wide 230/24W Casambi 4000K | 1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi adapter | Black | ||
| NEOPW40C-AHC-3 | Neo Profile Wide 230/24W Casambi 4000K | 1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi adapter | White |
neo Profile Wide DMX
- Wireless DMX via Lumenradio CRMX
- Fits most known 3-phase tracks
| Light temperature | Color | Art.no | Name | Specification | |
|---|---|---|---|---|---|
| NEOPW27C-AHX-1 | Neo Profile Wide 230/26W DMX 2700K | 1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMX | Grey | ||
| NEOPW27C-AHX-2 | Neo Profile Wide 230/26W DMX 2700K | 1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMX | Black | ||
| NEOPW27C-AHX-3 | Neo Profile Wide 230/26W DMX 2700K | 1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMX | White | ||
| NEOPW30C-AHX-1 | Neo Profile Wide 230/26W DMX 3000K | 1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMX | Grey | ||
| NEOPW30C-AHX-2 | Neo Profile Wide 230/26W DMX 3000K | 1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMX | Black | ||
| NEOPW30C-AHX-3 | Neo Profile Wide 230/26W DMX 3000K | 1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMX | White | ||
| NEOPW40C-AHX-1 | Neo Profile Wide 230/26W DMX 4000K | 1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMX | Grey | ||
| NEOPW40C-AHX-2 | Neo Profile Wide 230/26W DMX 4000K | 1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMX | Black | ||
| NEOPW40C-AHX-3 | Neo Profile Wide 230/26W DMX 4000K | 1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMX | White |
neo Profile Wide DALI
- Compatible with DALI Pulse 3-phase track
| Light temperature | Color | Art.no | Name | Specification | |
|---|---|---|---|---|---|
| NEOPW27C-AHD-1 | Neo Profile Wide 230/24W DALI 2700K | 1800lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSE | Grey | ||
| NEOPW27C-AHD-2 | Neo Profile Wide 230/24W DALI 2700K | 1800lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSE | Black | ||
| NEOPW27C-AHD-3 | Neo Profile Wide 230/24W DALI 2700K | 1800lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSE | White | ||
| NEOPW30C-AHD-1 | Neo Profile Wide 230/24W DALI 3000K | 1910lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSE | Grey | ||
| NEOPW30C-AHD-2 | Neo Profile Wide 230/24W DALI 3000K | 1910lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSE | Black | ||
| NEOPW30C-AHD-3 | Neo Profile Wide 230/24W DALI 3000K | 1910lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSE | White | ||
| NEOPW40C-AHD-1 | Neo Profile Wide 230/24W DALI 4000K | 1990lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSE | Grey | ||
| NEOPW40C-AHD-2 | Neo Profile Wide 230/24W DALI 4000K | 1990lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSE | Black | ||
| NEOPW40C-AHD-3 | Neo Profile Wide 230/24W DALI 4000K | 1990lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSE | White |
neo Profile Wide Solo
- For constant current, max 600 mA / 24W.
| Light temperature | Color | Art.no | Name | Specification | |
|---|---|---|---|---|---|
| NEOPW27C-CCS-1 | Neo Profile Wide CC/600mA Solo 2700K | 1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cable | Grey | ||
| NEOPW27C-CCS-2 | Neo Profile Wide CC/600mA Solo 2700K | 1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cable | Black | ||
| NEOPW27C-CCS-3 | Neo Profile Wide CC/600mA Solo 2700K | 1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cable | White | ||
| NEOPW30C-CCS-1 | Neo Profile Wide CC/600mA Solo 3000K | 1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cable | Grey | ||
| NEOPW30C-CCS-2 | Neo Profile Wide CC/600mA Solo 3000K | 1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cable | Black | ||
| NEOPW30C-CCS-3 | Neo Profile Wide CC/600mA Solo 3000K | 1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cable | White | ||
| NEOPW40C-CCS-1 | Neo Profile Wide CC/600mA Solo 4000K | 1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cable | Grey | ||
| NEOPW40C-CCS-2 | Neo Profile Wide CC/600mA Solo 4000K | 1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cable | Black | ||
| NEOPW40C-CCS-3 | Neo Profile Wide CC/600mA Solo 4000K | 1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cable | White |
