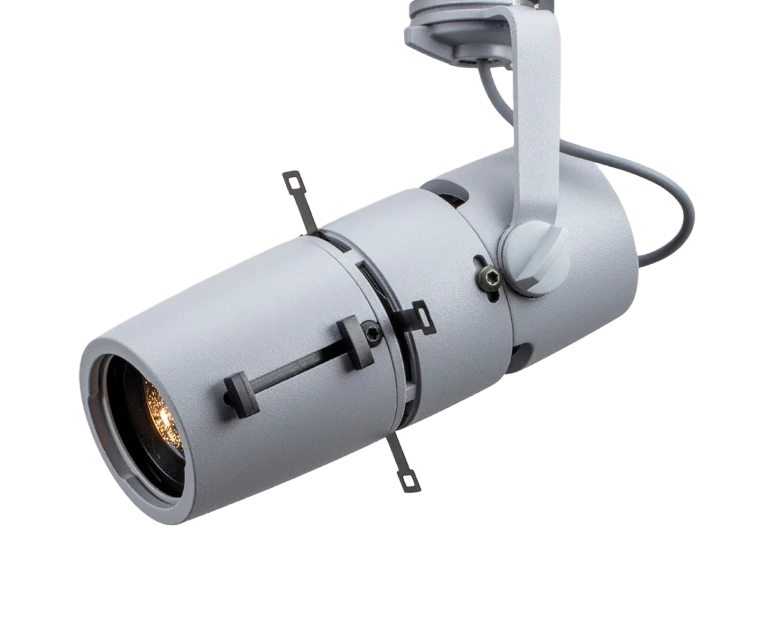

Arty Framer

A small and full-featured contour spotlight

  • Sharp-edged framing
  • Gobo projection capability
  • Comes in many different variations

Arty Framer is our smallest full-featured Profile spotlight.

  • 25–50° variable beam angle
  • Built-in framing shutters delivers sharp edges 3-phase track, Pico Trac or Mini Trac
  • Arty Framer for 3-phase track is Casambi ready

In the solo edition, it can be mounted in a ceiling cup or with the included M10 fitting.

Arty Framer has incredibly good control of the light. Previously known as Arty Profile.

Black Arty Framer for 230V Global TrackBlack Arty Framer for Pico Trac (12V DC)Black Arty Framer for Mini Trac (12V DC)Black Arty Framer SoloWhite Arty Framer 230V
Black Arty Framer for 230V Global Track
Easy-to-operate zoomand focus controlBuilt-in 0-100% dimmerAnti-reflectiveglass lensesShutter blades

Documents

Light data

Light planning

Compatibility

Arty Framer is available for the following systems:

  • 3-Phase Track

    220-240V AC

  • Pico Trac

    12V DC

  • Mini Trac

    12V DC

  • LED Profile

    Constant current

Technical specification

Material
  • Lamp housing of aluminum
  • Yoke and details of steel
  • Anti-reflective zoom lenses
Finish
  • Grey (RAL 7040)
  • Black (RAL 9005)
  • White (RAL 9016)
  • Custom
Weight

260 g / 370 g

System
  • 3 phase circuit track
  • Pico Trac
  • Mini Trac
  • LED Profiles
Dimming control
  • External dimmer (LED-Profile)
  • or built-in dimmer (Pico Trac, Mini Trac, 230V)
Protection class

IP20

Operating voltage

12V DC/230V/CC

Power consumption

6W/8W/10W

CRI

90

Color temperature

2700K, 3000K, 4000K

Beam angle

25°–50°

Swivels

>365°

Tilts

>90°

Optional accessories

Honeycomb 40mm, Glass Gobo holder

Gobo info
  • Arty Framer has a slot for gobo holder. Due to the optics, Arty works best with indistinct gobo patterns such as foliage breakups and fire
Gobo size
  • Outer diameter: Ø 22,5 mm
  • Image size: Ø 14 mm
  • Thickness: 1,1 mm
Design and idea

Ljusdesign AB and Gouiedo AB

Manufacturer

Ljusdesign AB, Sweden

Arty Framer / 230V 10W, 3-Phase lighting track

  • Multi-adapter for 3 phase circuit track with built-in local dimmer (0–100%).
Light temperatureColorArt.noNameSpecification
ARTF27C-HV-1Arty Framer 230V/10W 2700K480lm, CRI 90, 25-50°, 3-phase multi, with dimmerGrey
ARTF27C-HV-2Arty Framer 230V/10W 2700K480lm, CRI 90, 25-50°, 3-phase multi, with dimmerBlack
ARTF27C-HV-3Arty Framer 230V/10W 2700K480lm, CRI 90, 25-50°, 3-phase multi, with dimmerWhite
ARTF30C-HV-1Arty Framer 230V/10W 3000K510lm, CRI 90, 25-50°, 3-phase multi, with dimmerGrey
ARTF30C-HV-2Arty Framer 230V/10W 3000K510lm, CRI 90, 25-50°, 3-phase multi, with dimmerBlack
ARTF30C-HV-3Arty Framer 230V/10W 3000K510lm, CRI 90, 25-50°, 3-phase multi, with dimmerWhite
ARTF40C-HV-1Arty Framer 230V/10W 4000K540lm, CRI 90, 25-50°, 3-phase multi, with dimmerGrey
ARTF40C-HV-2Arty Framer 230V/10W 4000K540lm, CRI 90, 25-50°, 3-phase multi, with dimmerBlack
ARTF40C-HV-3Arty Framer 230V/10W 4000K540lm, CRI 90, 25-50°, 3-phase multi, with dimmerWhite

Arty Framer / 230V 10W, Casambi

  • Arty with full Casambi support for 3-Phase tracks
  • Adapter length: 150 mm
Light temperatureColorArt.noNameSpecificationColor
ARTF27C-AHC-1Arty Framer 230V/10W Casambi 2700KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimGrey
ARTF27C-AHC-2Arty Framer 230V/10W Casambi 2700KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimBlack
ARTF27C-AHC-3Arty Framer 230V/10W Casambi 2700KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimWhite
ARTF30C-AHC-1Arty Framer 230V/10W Casambi 3000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimGrey
ARTF30C-AHC-2Arty Framer 230V/10W Casambi 3000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimBlack
ARTF30C-AHC-3Arty Framer 230V/10W Casambi 3000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimWhite
ARTF40C-AHC-1Arty Framer 230V/10W Casambi 4000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimGrey
ARTF40C-AHC-2Arty Framer 230V/10W Casambi 4000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimBlack
ARTF40C-AHC-3Arty Framer 230V/10W Casambi 4000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimWhite

Arty Framer / 230V DALI PULSE

  • For DALI PULSE track
Light temperatureColorArt.noNameSpecificationColor
ARTF27B-HVDP-2Arty Framer 230V/7W 2700K, DALICRI 90, zoom 25-50°, DALI / PULSE adapterBlack
ARTF27B-HVDP-3Arty Framer 230V/7W 2700K, DALICRI 90, zoom 25-50°, DALI / PULSE adapterWhite
ARTF30B-HVDP-2Arty Framer 230V/7W 3000K, DALICRI 90, zoom 25-50°, DALI / PULSE adapterBlack
ARTF30B-HVDP-3Arty Framer 230V/7W 3000K, DALICRI 90, zoom 25-50°, DALI / PULSE adapterWhite

Arty Framer / CC 450 LM LED Profile

  • For installation on LED Profile High or Low. Dimming via external driver.
Light temperatureColorArt.noNameSpecificationColor
ARTF27B-CCL-1Arty Framer CC/500mA LED-Framer 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°Grey
ARTF27B-CCL-2Arty Framer CC/500mA LED-Framer 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°Black
ARTF27B-CCL-3Arty Framer CC/500mA LED-Framer 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°White
ARTF30B-CCL-1Arty Framer CC/500mA LED-Framer 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°Grey
ARTF30B-CCL-2Arty Framer CC/500mA LED-Framer 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°Black
ARTF30B-CCL-3Arty Framer CC/500mA LED-Framer 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°White
ARTF27D-CCL-1Arty Framer CC/1000mA LED-Framer 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°Grey
ARTF27D-CCL-2Arty Framer CC/1000mA LED-Framer 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°Black
ARTF27D-CCL-3Arty Framer CC/1000mA LED-Framer 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°White
ARTF30D-CCL-1Arty Framer CC/1000mA LED-Framer 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°Grey
ARTF30D-CCL-2Arty Framer CC/1000mA LED-Framer 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°Black
ARTF30D-CCL-3Arty Framer CC/1000mA LED-Framer 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°White

Arty Framer / CC 450 LM Solo

  • Dimming via external driver.
Light temperatureColorArt.noNameSpecification
ARTF27B-CCS-1Arty Framer CC/500mA Solo 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableGrey
ARTF27B-CCS-2Arty Framer CC/500mA Solo 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableBlack
ARTF27B-CCS-3Arty Framer CC/500mA Solo 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableWhite
ARTF30B-CCS-1Arty Framer CC/500mA Solo 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableGrey
ARTF30B-CCS-2Arty Framer CC/500mA Solo 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableBlack
ARTF30B-CCS-3Arty Framer CC/500mA Solo 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableWhite
ARTF27D-CCS-1Arty Framer CC/1000mA Solo 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableGrey
ARTF27D-CCS-2Arty Framer CC/1000mA Solo 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableBlack
ARTF27D-CCS-3Arty Framer CC/1000mA Solo 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableWhite
ARTF30D-CCS-1Arty Framer CC/1000mA Solo 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableGrey
ARTF30D-CCS-2Arty Framer CC/1000mA Solo 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableBlack
ARTF30D-CCS-3Arty Framer CC/1000mA Solo 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableWhite

Arty Framer / Pico Trac

  • Built-in local dimmer (0–100%). 12V DC.
Light temperatureColorArt.noNameSpecification
ARTF27C-PT-1Arty Framer 12V DC/8W Pico Trac 2700K480lm, CRI 90, 25-50°, with dimmerGrey
ARTF27C-PT-2Arty Framer 12V DC/8W Pico Trac 2700K480lm, CRI 90, 25-50°, with dimmerBlack
ARTF27C-PT-3Arty Framer 12V DC/8W Pico Trac 2700K480lm, CRI 90, 25-50°, with dimmerWhite
ARTF30C-PT-1Arty Framer 12V DC/8W Pico Trac 3000K510lm, CRI 90, 25-50°, with dimmerGrey
ARTF30C-PT-2Arty Framer 12V DC/8W Pico Trac 3000K510lm, CRI 90, 25-50°, with dimmerBlack
ARTF30C-PT-3Arty Framer 12V DC/8W Pico Trac 3000K510lm, CRI 90, 25-50°, with dimmerWhite
ARTF40C-PT-1Arty Framer 12V DC/8W Pico Trac 4000K540lm, CRI 90, 25-50°, with dimmerGrey
ARTF40C-PT-2Arty Framer 12V DC/8W Pico Trac 4000K540lm, CRI 90, 25-50°, with dimmerBlack
ARTF40C-PT-3Arty Framer 12V DC/8W Pico Trac 4000K540lm, CRI 90, 25-50°, with dimmerWhite

Arty Framer / Mini Trac

  • Built-in local dimmer (0–100%). 12V DC.
Light temperatureColorArt.noNameSpecification
ARTF27C-MT-1Arty Framer 12V DC/8W Mini Trac 2700K480lm, CRI 90, 25-50°, with dimmerGrey
ARTF27C-MT-2Arty Framer 12V DC/8W Mini Trac 2700K480lm, CRI 90, 25-50°, with dimmerBlack
ARTF27C-MT-3Arty Framer 12V DC/8W Mini Trac 2700K480lm, CRI 90, 25-50°, with dimmerWhite
ARTF30C-MT-1Arty Framer 12V DC/8W Mini Trac 3000K510lm, CRI 90, 25-50°, with dimmerGrey
ARTF30C-MT-2Arty Framer 12V DC/8W Mini Trac 3000K510lm, CRI 90, 25-50°, with dimmerBlack
ARTF30C-MT-3Arty Framer 12V DC/8W Mini Trac 3000K510lm, CRI 90, 25-50°, with dimmerWhite
ARTF40C-MT-1Arty Framer 12V DC/8W Mini Trac 4000K540lm, CRI 90, 25-50°, with dimmerGrey
ARTF40C-MT-2Arty Framer 12V DC/8W Mini Trac 4000K540lm, CRI 90, 25-50°, with dimmerBlack
ARTF40C-MT-3Arty Framer 12V DC/8W Mini Trac 4000K540lm, CRI 90, 25-50°, with dimmerWhite

Arty Framer / 12V DC Solo

  • Built-in local dimmer (0–100%)
Light temperatureColorArt.noNameSpecification
ARTF27C-LVS-1Arty Framer 12V DC/8W Solo 2700K480lm, CRI 90, 25-50°, with dimmer, 1m cableGrey
ARTF27C-LVS-2Arty Framer 12V DC/8W Solo 2700K480lm, CRI 90, 25-50°, with dimmer, 1m cableBlack
ARTF27C-LVS-3Arty Framer 12V DC/8W Solo 2700K480lm, CRI 90, 25-50°, with dimmer, 1m cableWhite
ARTF30C-LVS-1Arty Framer 12V DC/8W Solo 3000K510lm, CRI 90, 25-50°, with dimmer, 1m cableGrey
ARTF30C-LVS-2Arty Framer 12V DC/8W Solo 3000K510lm, CRI 90, 25-50°, with dimmer, 1m cableBlack
ARTF30C-LVS-3Arty Framer 12V DC/8W Solo 3000K510lm, CRI 90, 25-50°, with dimmer, 1m cableWhite
ARTF40C-LVS-1Arty Framer 12V DC/8W Solo 4000K540lm, CRI 90, 25-50°, with dimmer, 1m cableGrey
ARTF40C-LVS-2Arty Framer 12V DC/8W Solo 4000K540lm, CRI 90, 25-50°, with dimmer, 1m cableBlack
ARTF40C-LVS-3Arty Framer 12V DC/8W Solo 4000K540lm, CRI 90, 25-50°, with dimmer, 1m cableWhite

Arty Framer Accessories

Art.noNameSpecification
BC.470Glass Gobo Arty470 Forest Leaf
BC.479Glass Gobo Arty479 Puddle Leaf
