Ljusdesign AB

Dinkey

Medium sized spotlight with built-in dimmer

  • Low weight fixture of die-cast aluminium
  • Easy to use
  • Built-in 0-100% dimmer

A discreet LED spotlight with integrated 4W LED module.

  • Dimmable from the wall or the app when mounted in our LED-profiles
  • Built-in dimmer 0–100% in every fixture Pico Trac
  • Beam angles is controlled with interchangable lenses.

Dinkey fits LED-profiles, Mini Trac and Pico Trac low voltage tracks.

In the solo edition, it can also be mounted in a ceiling cup or with the included M8 fitting (8mm drill hole).

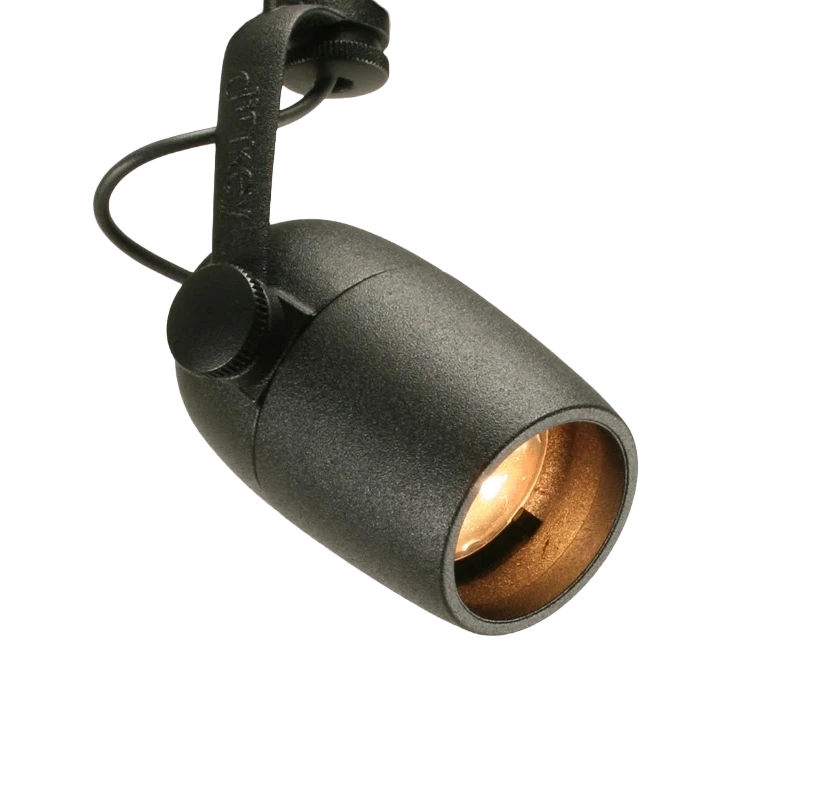

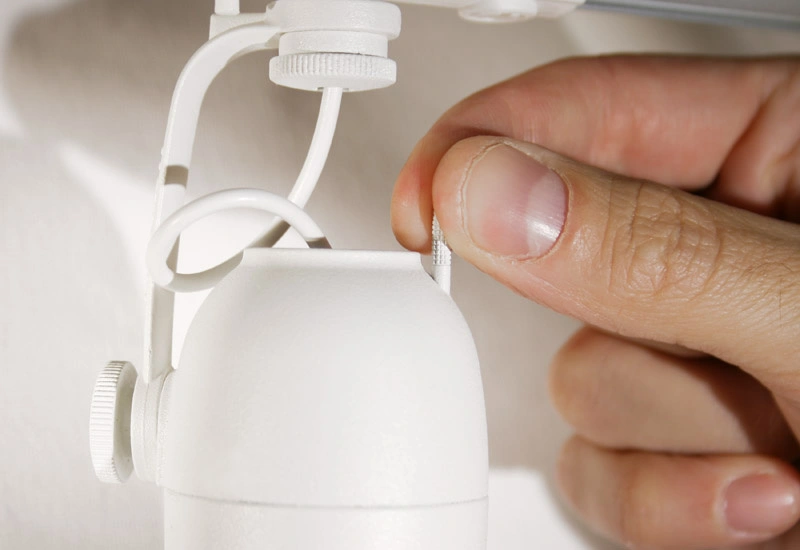

Black Dinkey for Pico Trac (12V)Black Dinkey for Mini Trac (12V)White Dinkey for Mini Trac (12V)Grey Dinkey for Mini Trac (12V)Dim the light with the potentiometer on the back, available on Dinkey 12VChange lenses for different beam anglesBlack Dinkey for Mini Trac (12V)
Black Dinkey for Pico Trac (12V)
Built-in 0-100% dimmerInterchangeable lenses

Documents

Light data

Light planning

Compatibility

Dinkey is available for the following systems:

  • Pico Trac

    12V DC

  • Mini Trac

    12V DC

  • LED Profile

    Constant current

Technical specification

Material
  • Die-cast aluminium
  • Yoke and details in steel
Finish
  • Grey (RAL 9006)
  • Black (RAL 9005)
  • White (RAL 9016)
  • Custom
Weight

140 g

System
Protection class

IP20

Power consumption

4W

CRI

90

Color temperature

2700K, 3000K, 4000K

Swivels

360°

Tilts

90°

Beam angles
  • Controlled with lenses:
  • Plain tight
  • Frosted narrow
  • Frosted medium
  • Frosted wide
  • Elliptical
Dinkey design and idea

Anders Westlund, Ljusdesign AB

Manufacturer
  • Ljusdesign AB, Sweden
  • Electronics in collaboration with Lightronic AB

Dinkey 12V DC / Mini Trac

  • Built in dimmer 0–100%
Light temperatureColorArt.noNameSpecificationColour
DIN27-MT-1Dinkey 12V DC/4W Mini Trac 2700K250lm, CRI 90, Lens N, dimmerGrey
DIN27-MT-2Dinkey 12V DC/4W Mini Trac 2700K250lm, CRI 90, Lens N, dimmerBlack
DIN27-MT-3Dinkey 12V DC/4W Mini Trac 2700K250lm, CRI 90, Lens N, dimmerWhite
DIN30-MT-1Dinkey 12V DC/4W Mini Trac 3000K250lm, CRI 90, Lens N, dimmerGrey
DIN30-MT-2Dinkey 12V DC/4W Mini Trac 3000K250lm, CRI 90, Lens N, dimmerBlack
DIN30-MT-3Dinkey 12V DC/4W Mini Trac 3000K250lm, CRI 90, Lens N, dimmerWhite
DIN40-MT-1Dinkey 12V DC/4W Mini Trac 4000K250lm, CRI 90, Lens N, dimmerGrey
DIN40-MT-2Dinkey 12V DC/4W Mini Trac 4000K250lm, CRI 90, Lens N, dimmerBlack
DIN40-MT-3Dinkey 12V DC/4W Mini Trac 4000K250lm, CRI 90, Lens N, dimmerWhite

Dinkey 12V DC / Pico Trac

  • Built in dimmer 0–100%
Light temperatureColorArt.noNameSpecificationColour
DIN27-PT-1Dinkey 12V DC/4W Pico Trac 2700K250lm, CRI 90, Lens N, dimmerGrey
DIN27-PT-2Dinkey 12V DC/4W Pico Trac 2700K250lm, CRI 90, Lens N, dimmerBlack
DIN27-PT-3Dinkey 12V DC/4W Pico Trac 2700K250lm, CRI 90, Lens N, dimmerWhite
DIN30-PT-1Dinkey 12V DC/4W Pico Trac 3000K250lm, CRI 90, Lens N, dimmerGrey
DIN30-PT-2Dinkey 12V DC/4W Pico Trac 3000K250lm, CRI 90, Lens N, dimmerBlack
DIN30-PT-3Dinkey 12V DC/4W Pico Trac 3000K250lm, CRI 90, Lens N, dimmerWhite
DIN40-PT-1Dinkey 12V DC/4W Pico Trac 4000K250lm, CRI 90, Lens N, dimmerGrey
DIN40-PT-2Dinkey 12V DC/4W Pico Trac 4000K250lm, CRI 90, Lens N, dimmerBlack
DIN40-PT-3Dinkey 12V DC/4W Pico Trac 4000K250lm, CRI 90, Lens N, dimmerWhite

Dinkey 12V DC / Solo

  • Built in dimmer 0–100%
  • Comes with 1m cable
Light temperatureColorArt.noNameSpecificationColour
DIN27-LVS-1Dinkey 12V DC/4W Solo 2700K250lm, CRI 90, Lens N, dimmer, 1m cableGrey
DIN27-LVS-2Dinkey 12V DC/4W Solo 2700K250lm, CRI 90, Lens N, dimmer, 1m cableBlack
DIN27-LVS-3Dinkey 12V DC/4W Solo 2700K250lm, CRI 90, Lens N, dimmer, 1m cableWhite
DIN30-LVS-1Dinkey 12V DC/4W Solo 3000K250lm, CRI 90, Lens N, dimmer, 1m cableGrey
DIN30-LVS-2Dinkey 12V DC/4W Solo 3000K250lm, CRI 90, Lens N, dimmer, 1m cableBlack
DIN30-LVS-3Dinkey 12V DC/4W Solo 3000K250lm, CRI 90, Lens N, dimmer, 1m cableWhite
DIN40-LVS-1Dinkey 12V DC/4W Solo 4000K250lm, CRI 90, Lens N, dimmer, 1m cableGrey
DIN40-LVS-2Dinkey 12V DC/4W Solo 4000K250lm, CRI 90, Lens N, dimmer, 1m cableBlack
DIN40-LVS-3Dinkey 12V DC/4W Solo 4000K250lm, CRI 90, Lens N, dimmer, 1m cableWhite

Dinkey CC 250lm / LED Profile

  • Without driver. For installation of LED profile High or Low. Max 1050 mA.
Light temperatureColorArt.noNameSpecificationColour
DIN27-CCL-1Dinkey CC/1050mA LED Profile 2700K250lm, Vf=3V, 1050mA, CRI 90, Lens NGrey
DIN27-CCL-2Dinkey CC/1050mA LED Profile 2700K250lm, Vf=3V, 1050mA, CRI 90, Lens NBlack
DIN27-CCL-3Dinkey CC/1050mA LED Profile 2700K250lm, Vf=3V, 1050mA, CRI 90, Lens NWhite
DIN30-CCL-1Dinkey CC/1050mA LED Profile 3000K250lm, Vf=3V, 1050mA, CRI 90, Lens NGrey
DIN30-CCL-2Dinkey CC/1050mA LED Profile 3000K250lm, Vf=3V, 1050mA, CRI 90, Lens NBlack
DIN30-CCL-3Dinkey CC/1050mA LED Profile 3000K250lm, Vf=3V, 1050mA, CRI 90, Lens NWhite
DIN40-CCL-1Dinkey CC/1050mA LED Profile 4000K250lm, Vf=3V, 1050mA, CRI 90, Lens NGrey
DIN40-CCL-2Dinkey CC/1050mA LED Profile 4000K250lm, Vf=3V, 1050mA, CRI 90, Lens NBlack
DIN40-CCL-3Dinkey CC/1050mA LED Profile 4000K250lm, Vf=3V, 1050mA, CRI 90, Lens NWhite

Dinkey CC 250lm / SOLO

  • Without driver. For Single use. Max 1050 mA.
Light temperatureColorArt.noNameSpecificationColour
DIN27-CCS-1Dinkey CC/1050mA Solo 2700K250lm, Vf=3V, 1050mA, CRI 90, Lens N, 1m cableGrey
DIN27-CCS-2Dinkey CC/1050mA Solo 2700K250lm, Vf=3V, 1050mA, CRI 90, Lens N, 1m cableBlack
DIN27-CCS-3Dinkey CC/1050mA Solo 2700K250lm, Vf=3V, 1050mA, CRI 90, Lens N, 1m cableWhite
DIN30-CCS-1Dinkey CC/1050mA Solo 3000K250lm, Vf=3V, 1050mA, CRI 90, Lens N, 1m cableGrey
DIN30-CCS-2Dinkey CC/1050mA Solo 3000K250lm, Vf=3V, 1050mA, CRI 90, Lens N, 1m cableBlack
DIN30-CCS-3Dinkey CC/1050mA Solo 3000K250lm, Vf=3V, 1050mA, CRI 90, Lens N, 1m cableWhite
DIN40-CCS-1Dinkey CC/1050mA Solo 4000K250lm, Vf=3V, 1050mA, CRI 90, Lens N, 1m cableGrey
DIN40-CCS-2Dinkey CC/1050mA Solo 4000K250lm, Vf=3V, 1050mA, CRI 90, Lens N, 1m cableBlack
DIN40-CCS-3Dinkey CC/1050mA Solo 4000K250lm, Vf=3V, 1050mA, CRI 90, Lens N, 1m cableWhite

Dinkey CC 450lm / LED Profile

  • Without driver. For installation of LED profile High or Low. Max 500 mA.
Light temperatureColorArt.noNameSpecificationColour
DIN27B-CCL-1Dinkey CC/500mA LED Profile 2700K250lm, Vf=12V, 500mA, CRI 90, Lens NGrey
DIN27B-CCL-2Dinkey CC/500mA LED Profile 2700K250lm, Vf=12V, 500mA, CRI 90, Lens NBlack
DIN27B-CCL-3Dinkey CC/500mA LED Profile 2700K250lm, Vf=12V, 500mA, CRI 90, Lens NWhite
DIN30B-CCL-1Dinkey CC/500mA LED Profile 3000K250lm, Vf=12V, 500mA, CRI 90, Lens NGrey
DIN30B-CCL-2Dinkey CC/500mA LED Profile 3000K250lm, Vf=12V, 500mA, CRI 90, Lens NBlack
DIN30B-CCL-3Dinkey CC/500mA LED Profile 3000K250lm, Vf=12V, 500mA, CRI 90, Lens NWhite

Dinkey CC 450lm / SOLO

  • Without driver. For Single use. Max 500 mA.
Light temperatureColorArt.noNameSpecificationColour
DIN27B-CCS-1Dinkey CC/500mA Solo 2700K450lm, Vf=12V, 500mA, CRI 90, Lens N, 1m cableGrey
DIN27B-CCS-2Dinkey CC/500mA Solo 2700K450lm, Vf=12V, 500mA, CRI 90, Lens N, 1m cableBlack
DIN27B-CCS-3Dinkey CC/500mA Solo 2700K450lm, Vf=12V, 500mA, CRI 90, Lens N, 1m cableWhite
DIN30B-CCS-1Dinkey CC/500mA Solo 3000K450lm, Vf=12V, 500mA, CRI 90, Lens N, 1m cableGrey
DIN30B-CCS-2Dinkey CC/500mA Solo 3000K450lm, Vf=12V, 500mA, CRI 90, Lens N, 1m cableBlack
DIN30B-CCS-3Dinkey CC/500mA Solo 3000K450lm, Vf=12V, 500mA, CRI 90, Lens N, 1m cableWhite

Dinkey Accessories

Art.noNameSpecification
DIN-L-VNDinkey/Arty Accent lensVery Narrow
DIN-L-NDinkey/Arty Accent lensNarrow (standard lens)
DIN-L-MDinkey/Arty Accent lensMedium
DIN-L-WDinkey/Arty Accent lensWide
DIN-L-EDinkey/Arty Accent lensElliptical
DIN-HCLHoney Comb louvre35 mm
