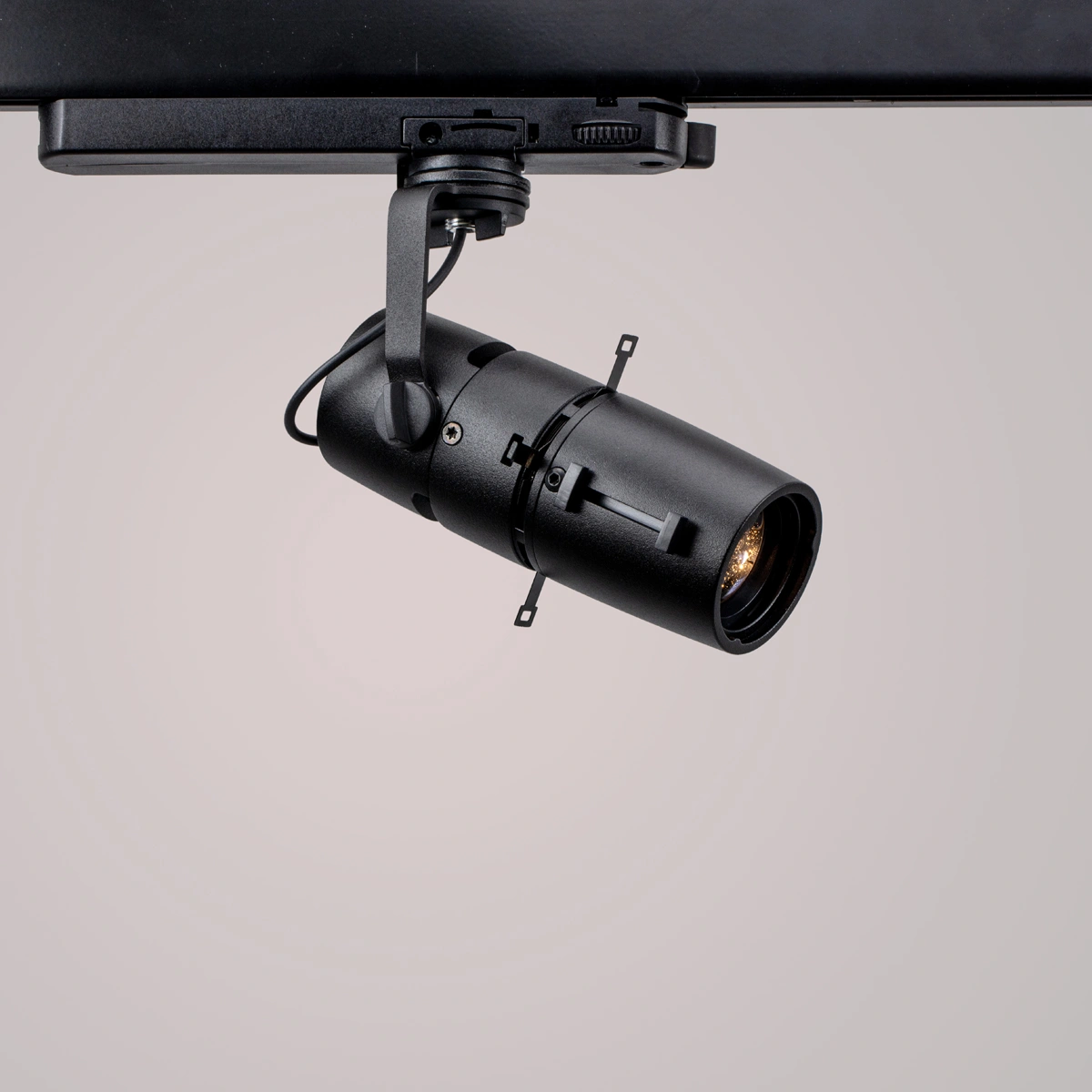

Arty Framer

Arty Framer är vår minsta fullfjädrade profilstrålkastare.

  • 25–50°
  • Inbyggda knivar som ger knivskarpa kanter
  • Inbyggd dimmer 0–100% i varje armatur för 3-fas skena, Pico Trac eller Mini Trac
  • För 3-fas finns Arty Framer även med Casambi

Den kan även i solo-utförande, monteras i takkopp eller med medföljande M10 nippelrör (borrhål 10mm).

Med Arty Framer har du väldigt god kontroll över ljusbilden. Arty Framer hette tidigare Arty Profile.

Teknisk specifikation

Material
  • Armaturhus av aluminum
  • Bygel och detaljer av stål
  • Lins av polykarbonat
Färg
  • Grå (RAL 7040)
  • Svart (RAL 9005)
  • Vit (RAL 9016)
Vikt

260 g / 370 g

System
  • 3-fas skena
  • Pico Trac
  • Mini Trac
  • LED-profiler
Ljusreglering
  • Inbyggd dimmer
  • Ej kompatibel med extern dimmer
Kapslingsklass

IP20

Driftspänning

12V DC/230V/CC

Strömförbrukning

6W/8W/10W

CRI

90

Färgtemperatur

2700K, 3000K, 4000K

Spridning

25°–50°

Vridbar

>365°

Riktbar

>90°

Tillbehör

Bikakeraster 40mm, Glasgobohållare

Gobo info
  • Arty Framer har stöd för goboprojicering. Den fungerar bäst med otydliga gobomönster såsom lövverk och eld
Gobo storlek
  • Ytterdiameter: Ø 22,5 mm
  • Image size: Ø 14 mm
  • Tjocklek: 1,1 mm
Design och idé

Ljusdesign AB och Gouiedo AB

Tillverkare

Ljusdesign AB, Sverige

Filer

Ljusmätningar

Filer för ljusplanering

Arty Framer / 230V 10W, 3-Phase lighting track

  • Multi-adapter for 3 phase circuit track with built-in local dimmer (0–100%)
Art.noNameSpecification
2700K ARTF27C-HV-1Arty Framer 230V/10W 2700K480lm, CRI 90, 25-50°, 3-phase multi, with dimmerGrey
 ARTF27C-HV-2Arty Framer 230V/10W 2700K480lm, CRI 90, 25-50°, 3-phase multi, with dimmerBlack
 ARTF27C-HV-3Arty Framer 230V/10W 2700K480lm, CRI 90, 25-50°, 3-phase multi, with dimmerWhite
3000K ARTF30C-HV-1Arty Framer 230V/10W 3000K510lm, CRI 90, 25-50°, 3-phase multi, with dimmerGrey
 ARTF30C-HV-2Arty Framer 230V/10W 3000K510lm, CRI 90, 25-50°, 3-phase multi, with dimmerBlack
 ARTF30C-HV-3Arty Framer 230V/10W 3000K510lm, CRI 90, 25-50°, 3-phase multi, with dimmerWhite
4000K ARTF40C-HV-1Arty Framer 230V/10W 4000K540lm, CRI 90, 25-50°, 3-phase multi, with dimmerGrey
 ARTF40C-HV-2Arty Framer 230V/10W 4000K540lm, CRI 90, 25-50°, 3-phase multi, with dimmerBlack
 ARTF40C-HV-3Arty Framer 230V/10W 4000K540lm, CRI 90, 25-50°, 3-phase multi, with dimmerWhite

Arty Framer / 230V 10W, Casambi

  • Arty with full Casambi support for 3-Phase tracks
Art.noNameSpecificationColor
2700K ARTF27C-AHC-1Arty Framer 230V/10W Casambi 2700KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimGrey
 ARTF27C-AHC-2Arty Framer 230V/10W Casambi 2700KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimBlack
 ARTF27C-AHC-3Arty Framer 230V/10W Casambi 2700KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimWhite
3000K ARTF30C-AHC-1Arty Framer 230V/10W Casambi 3000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimGrey
 ARTF30C-AHC-2Arty Framer 230V/10W Casambi 3000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimBlack
 ARTF30C-AHC-3Arty Framer 230V/10W Casambi 3000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimWhite
4000K ARTF40C-AHC-1Arty Framer 230V/10W Casambi 4000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimGrey
 ARTF40C-AHC-2Arty Framer 230V/10W Casambi 4000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimBlack
 ARTF40C-AHC-3Arty Framer 230V/10W Casambi 4000KCRI 90, zoom 25-50°, 3-phase multi adapter, Casambi w. dimWhite

Arty Framer / 230V DALI PULSE

  • For DALI PULSE track
Art.noNameSpecificationColor
2700K ARTF27B-HVDP-2Arty Framer 230V/7W 2700K, DALICRI 90, zoom 25-50°, DALI / PULSE adapterBlack
 ARTF27B-HVDP-3Arty Framer 230V/7W 2700K, DALICRI 90, zoom 25-50°, DALI / PULSE adapterWhite
3000K ARTF30B-HVDP-2Arty Framer 230V/7W 3000K, DALICRI 90, zoom 25-50°, DALI / PULSE adapterBlack
 ARTF30B-HVDP-3Arty Framer 230V/7W 3000K, DALICRI 90, zoom 25-50°, DALI / PULSE adapterWhite

Arty Framer CC 450 lm / LED-Profile

  • Without driver. For installation on LED profile High or Low.
Art.noNameSpecificationColor
2700K ARTF27B-CCL-1Arty Framer CC/500mA LED-Framer 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°Grey
 ARTF27B-CCL-2Arty Framer CC/500mA LED-Framer 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°Black
 ARTF27B-CCL-3Arty Framer CC/500mA LED-Framer 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°White
3000K ARTF30B-CCL-1Arty Framer CC/500mA LED-Framer 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°Grey
 ARTF30B-CCL-2Arty Framer CC/500mA LED-Framer 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°Black
 ARTF30B-CCL-3Arty Framer CC/500mA LED-Framer 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°White
2700K ARTF27D-CCL-1Arty Framer CC/1000mA LED-Framer 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°Grey
 ARTF27D-CCL-2Arty Framer CC/1000mA LED-Framer 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°Black
 ARTF27D-CCL-3Arty Framer CC/1000mA LED-Framer 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°White
3000K ARTF30D-CCL-1Arty Framer CC/1000mA LED-Framer 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°Grey
 ARTF30D-CCL-2Arty Framer CC/1000mA LED-Framer 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°Black
 ARTF30D-CCL-3Arty Framer CC/1000mA LED-Framer 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°White

Arty Framer / CC 450 lm Solo

  • Without driver. For single use.
Art.noNameSpecification
2700K ARTF27B-CCS-1Arty Framer CC/500mA Solo 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableGrey
 ARTF27B-CCS-2Arty Framer CC/500mA Solo 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableBlack
 ARTF27B-CCS-3Arty Framer CC/500mA Solo 2700K420lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableWhite
3000K ARTF30B-CCS-1Arty Framer CC/500mA Solo 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableGrey
 ARTF30B-CCS-2Arty Framer CC/500mA Solo 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableBlack
 ARTF30B-CCS-3Arty Framer CC/500mA Solo 3000K450lm, CRI 90, Vf=12V, 500mA, 25-50°, 1m cableWhite
2700K ARTF27D-CCS-1Arty Framer CC/1000mA Solo 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableGrey
 ARTF27D-CCS-2Arty Framer CC/1000mA Solo 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableBlack
 ARTF27D-CCS-3Arty Framer CC/1000mA Solo 2700K420lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableWhite
3000K ARTF30D-CCS-1Arty Framer CC/1000mA Solo 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableGrey
 ARTF30D-CCS-2Arty Framer CC/1000mA Solo 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableBlack
 ARTF30D-CCS-3Arty Framer CC/1000mA Solo 3000K450lm, CRI 90, Vf=6V, 1000mA, 25-50°, 1m cableWhite

Arty Framer / Pico Trac

  • Built-in local dimmer (0–100%)
  • 12V DC
Art.noNameSpecification
2700K ARTF27C-PT-1Arty Framer 12V DC/8W PicoTrac 2700K480lm, CRI 90, 25-50°, with dimmerGrey
 ARTF27C-PT-2Arty Framer 12V DC/8W PicoTrac 2700K480lm, CRI 90, 25-50°, with dimmerBlack
 ARTF27C-PT-3Arty Framer 12V DC/8W PicoTrac 2700K480lm, CRI 90, 25-50°, with dimmerWhite
3000K ARTF30C-PT-1Arty Framer 12V DC/8W PicoTrac 3000K510lm, CRI 90, 25-50°, with dimmerGrey
 ARTF30C-PT-2Arty Framer 12V DC/8W PicoTrac 3000K510lm, CRI 90, 25-50°, with dimmerBlack
 ARTF30C-PT-3Arty Framer 12V DC/8W PicoTrac 3000K510lm, CRI 90, 25-50°, with dimmerWhite
4000K ARTF40C-PT-1Arty Framer 12V DC/8W PicoTrac 4000K540lm, CRI 90, 25-50°, with dimmerGrey
 ARTF40C-PT-2Arty Framer 12V DC/8W PicoTrac 4000K540lm, CRI 90, 25-50°, with dimmerBlack
 ARTF40C-PT-3Arty Framer 12V DC/8W PicoTrac 4000K540lm, CRI 90, 25-50°, with dimmerWhite

Arty Framer / Mini Trac

  • Built-in local dimmer (0–100%)
  • 12V DC
Art.noNameSpecification
2700K ARTF27C-MT-1Arty Framer 12V DC/8W MiniTrac 2700K480lm, CRI 90, 25-50°, with dimmerGrey
 ARTF27C-MT-2Arty Framer 12V DC/8W MiniTrac 2700K480lm, CRI 90, 25-50°, with dimmerBlack
 ARTF27C-MT-3Arty Framer 12V DC/8W MiniTrac 2700K480lm, CRI 90, 25-50°, with dimmerWhite
3000K ARTF30C-MT-1Arty Framer 12V DC/8W MiniTrac 3000K510lm, CRI 90, 25-50°, with dimmerGrey
 ARTF30C-MT-2Arty Framer 12V DC/8W MiniTrac 3000K510lm, CRI 90, 25-50°, with dimmerBlack
 ARTF30C-MT-3Arty Framer 12V DC/8W MiniTrac 3000K510lm, CRI 90, 25-50°, with dimmerWhite
4000K ARTF40C-MT-1Arty Framer 12V DC/8W MiniTrac 4000K540lm, CRI 90, 25-50°, with dimmerGrey
 ARTF40C-MT-2Arty Framer 12V DC/8W MiniTrac 4000K540lm, CRI 90, 25-50°, with dimmerBlack
 ARTF40C-MT-3Arty Framer 12V DC/8W MiniTrac 4000K540lm, CRI 90, 25-50°, with dimmerWhite

Arty Framer / 12V DC Solo

  • Built-in local dimmer (0–100%)
Art.noNameSpecification
2700K ARTF27C-LVS-1Arty Framer 12V DC/8W Solo 2700K480lm, CRI 90, 25-50°, with dimmer, 1m cableGrey
 ARTF27C-LVS-2Arty Framer 12V DC/8W Solo 2700K480lm, CRI 90, 25-50°, with dimmer, 1m cableBlack
 ARTF27C-LVS-3Arty Framer 12V DC/8W Solo 2700K480lm, CRI 90, 25-50°, with dimmer, 1m cableWhite
3000K ARTF30C-LVS-1Arty Framer 12V DC/8W Solo 3000K510lm, CRI 90, 25-50°, with dimmer, 1m cableGrey
 ARTF30C-LVS-2Arty Framer 12V DC/8W Solo 3000K510lm, CRI 90, 25-50°, with dimmer, 1m cableBlack
 ARTF30C-LVS-3Arty Framer 12V DC/8W Solo 3000K510lm, CRI 90, 25-50°, with dimmer, 1m cableWhite
4000K ARTF40C-LVS-1Arty Framer 12V DC/8W Solo 4000K540lm, CRI 90, 25-50°, with dimmer, 1m cableGrey
 ARTF40C-LVS-2Arty Framer 12V DC/8W Solo 4000K540lm, CRI 90, 25-50°, with dimmer, 1m cableBlack
 ARTF40C-LVS-3Arty Framer 12V DC/8W Solo 4000K540lm, CRI 90, 25-50°, with dimmer, 1m cableWhite

Arty Framer Accessories

Art.noNameSpecification
BC.470Glass Gobo Arty470 Forest Leaf
BC.479Glass Gobo Arty479 Puddle Leaf
