Neo Framer Wide

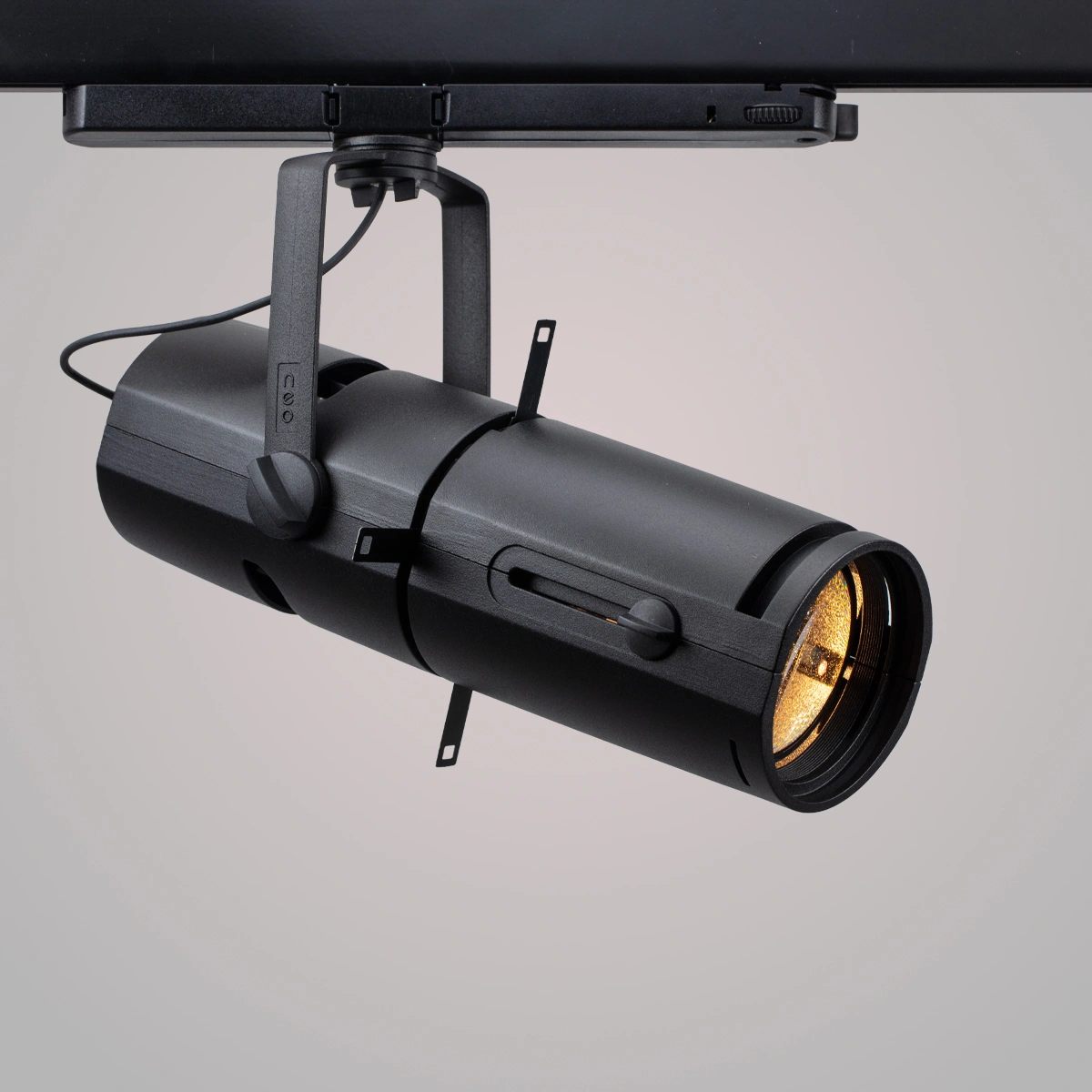

Neo Framer Wide är en vidareutveckling på linsstrålkastaren Neo Framer Narrow.

Ett helt nytt linssystem möjliggör mycket större spridningsvinklar än tidigare.

  • Perfekt färgåtergivning CRI 98
  • Passa alla kända 3-fas skenor
  • De inbyggda knivarna ger mycket god kontroll över ljusbilden
  • Gobohållare och gobo som tillval

Neo Framer Wide finns i tre huvudsakliga varianter:

  • Analog: Inbyggd dimmer
  • DMX: Trådlöst via Lumenradio CRMX
  • DALI: Trådbunden styrning med DALI
  • Casambi: Bluetooth-baserad styrning

Teknisk specifikation

Material
  • Armaturhus i pressgjuten magnesium
  • Adapter i PC 10GF
  • Linser i antireflexbehandlat optiskt glas.
Färg
  • Grå (RAL 9006)
  • Svart (RAL 9005)
  • Vit (RAL 9016)
Vikt

850 g / 1080 g

Kapslingsklass

IP20

Driftspänning

230V~ 50/60Hz

Strömförbrukning

24—26W

Färgtemperatur

2700K, 3000K, 4000K

CRI

95 (Typical 98 CRI)

Vridbar

>365°

Riktbar

>90°

Spridning

Regleras steglöst 20—45°

Dimning
  • Inbyggd dimmer 0—100%
  • DMX via Lumenradio CRMX
  • DALI-version (only for Global Trac PULSE Trac system or equivalent)
  • Casambi (Bluetooth)
  • Inte kompatibel med primärdimning
Funktioner

Filterhållare, fasväljare, tilt- och panlåsning

Tillbehör
Gobo info
  • Neo Framer har stöd för goboprojicering. Den fungerar bäst med otydliga gobomönster såsom lövverk och eld
Gobo storlek
  • Ytterdiameter: Ø 37,5 mm
  • Image size: Ø 28 mm
  • Tjocklek: 1,1 mm
Design och idé

LjusDesign AB och Gouiedo AB

Tillverkare

LjusDesign AB, Sverige

Filer

Ljusmätningar

Filer för ljusplanering

Neo Framer Wide Analog, Local dim

  • Neo Framer Wide with built-in local dimmer (0-100%)
  • Gobo holder for e-size Gobos are available as an accessory.
Art.noNameSpecificationColor
2700K NEOFW27C-AL-1Neo Framer Wide 230/24W, 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerGrey
 NEOFW27C-AL-2Neo Framer Wide 230/24W, 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerBlack
 NEOFW27C-AL-3Neo Framer Wide 230/24W, 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerWhite
3000K NEOFW30C-AL-1Neo Framer Wide 230/24W, 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerGrey
 NEOFW30C-AL-2Neo Framer Wide 230/24W, 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerBlack
 NEOFW30C-AL-3Neo Framer Wide 230/24W, 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerWhite
4000K NEOFW40C-AL-1Neo Framer Wide 230/24W, 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerGrey
 NEOFW40C-AL-2Neo Framer Wide 230/24W, 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerBlack
 NEOFW40C-AL-3Neo Framer Wide 230/24W, 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerWhite
2700K NEOFW27C-AH-1Neo Framer Wide 230/26W, 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerGrey
 NEOFW27C-AH-2Neo Framer Wide 230/26W, 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerBlack
 NEOFW27C-AH-3Neo Framer Wide 230/26W, 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerWhite
3000K NEOFW30C-AH-1Neo Framer Wide 230/26W, 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerGrey
 NEOFW30C-AH-2Neo Framer Wide 230/26W, 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerBlack
 NEOFW30C-AH-3Neo Framer Wide 230/26W, 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerWhite
4000K NEOFW40C-AH-1Neo Framer Wide 230/26W, 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerGrey
 NEOFW40C-AH-2Neo Framer Wide 230/26W, 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerBlack
 NEOFW40C-AH-3Neo Framer Wide 230/26W, 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, dimmerWhite

Neo Framer Wide Casambi

  • Dimming via Casambi app or connected Casambi-ready products.
  • Fits most 3-phase lighting tracks.
Art.noNameSpecificationColor
2700K NEOFW27C-AHC-1Neo Framer Wide 230/24W Casambi 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multiGrey
 NEOFW27C-AHC-2Neo Framer Wide 230/24W Casambi 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multiBlack
 NEOFW27C-AHC-3Neo Framer Wide 230/24W Casambi 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multiWhite
3000K NEOFW30C-AHC-1Neo Framer Wide 230/24W Casambi 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multiGrey
 NEOFW30C-AHC-2Neo Framer Wide 230/24W Casambi 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multiBlack
 NEOFW30C-AHC-3Neo Framer Wide 230/24W Casambi 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multiWhite
4000K NEOFW40C-AHC-1Neo Framer Wide 230/24W Casambi 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multiGrey
 NEOFW40C-AHC-2Neo Framer Wide 230/24W Casambi 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multiBlack
 NEOFW40C-AHC-3Neo Framer Wide 230/24W Casambi 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multiWhite

Neo Framer Wide DMX

  • DMX with built-in local dimmer (0-100%)
  • Wireless controll via Lumenradio CRMX.
  • Fits in all commonly used 3-phase tracks.
Art.noNameSpecificationColor
2700K NEOFW27C-AHX-1Neo Framer Wide 230/24W DMX 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMXGrey
 NEOFW27C-AHX-2Neo Framer Wide 230/24W DMX 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMXBlack
 NEOFW27C-AHX-3Neo Framer Wide 230/24W DMX 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMXWhite
3000K NEOFW30C-AHX-1Neo Framer Wide 230/24W DMX 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMXGrey
 NEOFW30C-AHX-2Neo Framer Wide 230/24W DMX 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMXBlack
 NEOFW30C-AHX-3Neo Framer Wide 230/24W DMX 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMXWhite
4000K NEOFW40C-AHX-1Neo Framer Wide 230/24W DMX 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMXGrey
 NEOFW40C-AHX-2Neo Framer Wide 230/24W DMX 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMXBlack
 NEOFW40C-AHX-3Neo Framer Wide 230/24W DMX 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase multi, wireless DMXWhite

Neo Framer Wide DALI / Pulse

  • Only for Global Trac Pulse track or equivalent (DALI 1-100%)
Art.noNameSpecificationColor
2700K NEOFW27C-AHD-1Neo Framer Wide 230/24W DALI 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSEGrey
 NEOFW27C-AHD-2Neo Framer Wide 230/24W DALI 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSEBlack
 NEOFW27C-AHD-3Neo Framer Wide 230/24W DALI 2700K1800lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSEWhite
3000K NEOFW30C-AHD-1Neo Framer Wide 230/24W DALI 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSEGrey
 NEOFW30C-AHD-2Neo Framer Wide 230/24W DALI 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSEBlack
 NEOFW30C-AHD-3Neo Framer Wide 230/24W DALI 3000K1910lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSEWhite
4000K NEOFW40C-AHD-1Neo Framer Wide 230/24W DALI 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSEGrey
 NEOFW40C-AHD-2Neo Framer Wide 230/24W DALI 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSEBlack
 NEOFW40C-AHD-3Neo Framer Wide 230/24W DALI 4000K1990lm, CRI 98, SDCM 2, 20–45°, 3-phase, DALI / PULSEWhite

Neo Framer Wide Solo

  • Fixture without driver, with 1 meter cable
  • For use with external driver max 600mA / 22W, Vf=36V
Art.noNameSpecificationColor
2700K NEOFW27C-CCS-1Neo Framer Wide CC/600mA Solo 2700K1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cableGrey
 NEOFW27C-CCS-2Neo Framer Wide CC/600mA Solo 2700K1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cableBlack
 NEOFW27C-CCS-3Neo Framer Wide CC/600mA Solo 2700K1800lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cableWhite
3000K NEOFW30C-CCS-1Neo Framer Wide CC/600mA Solo 3000K1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cableGrey
 NEOFW30C-CCS-2Neo Framer Wide CC/600mA Solo 3000K1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cableBlack
 NEOFW30C-CCS-3Neo Framer Wide CC/600mA Solo 3000K1910lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cableWhite
4000K NEOFW40C-CCS-1Neo Framer Wide CC/600mA Solo 4000K1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cableGrey
 NEOFW40C-CCS-2Neo Framer Wide CC/600mA Solo 4000K1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cableBlack
 NEOFW40C-CCS-3Neo Framer Wide CC/600mA Solo 4000K1990lm, Vf=36V, 600mA, CRI 98, SDCM 2, 20–45°, 1m cableWhite

neo Framer Accessories

Art.noNameSpecification
NEO99Gobo Pattern MetalStandard Rosco E-size
NEO92Gobo Holder for Metal GoboE-size, Max thickness 1,1mm
NEO92XGobo Holder for Glass GoboE-size, Max thickness 1,1mm
NEO98Neo FilterRosco/Lee 70x70 mm
