Arty Accent

A compact spotlight that handles many different lighting situations

  • Available for all Ljusdesign lighting systems
  • Small and stylish
  • Intercahangeable lenses

Arty Accent is a compact spotlight that handles most lighting situations.

Based on the reliable Dinkey platform but with generally higher power. Very compact and robust lamp housing of aluminium.

  • Dimmable from the wall or the app on Casambi 3-phase and LED-profiles
  • Built-in dimmer 0–100% for 3-phase track, Pico Trac or Mini Trac
  • Interchangable lenses and honey comb
  • Arty Accent for 3-phase track is Casambi ready

In the solo edition, it can be mounted in a ceiling cup or with the included M10 fitting.

Previously known as Arty PAR.

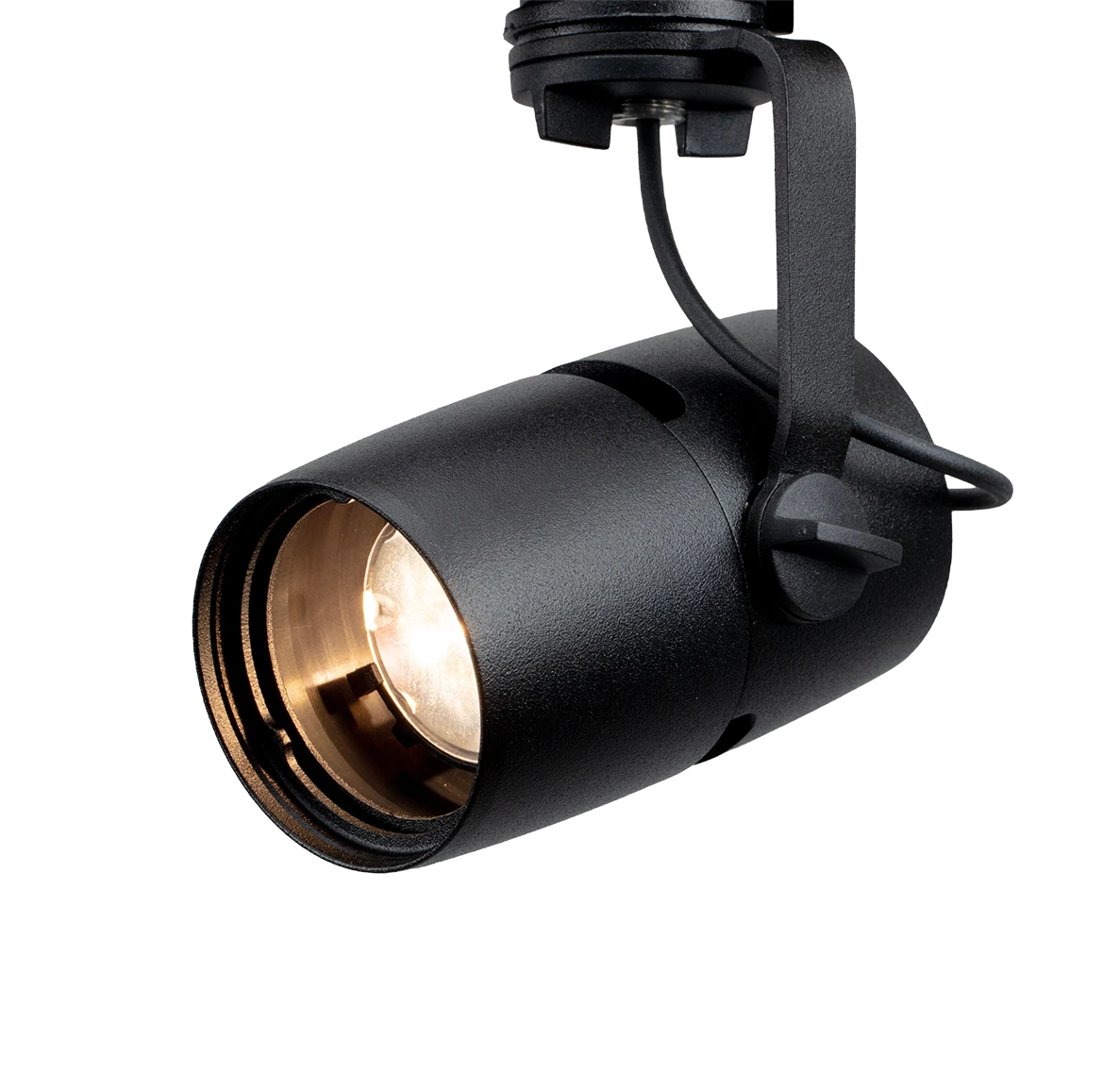

Black Arty Accent for 230V Global TrackBlack Arty Accent for Pico Trac (12V DC)Black Arty Accent for Mini Trac (12V DC)Black Arty Accent Solo
Black Arty Accent for 230V Global Track
Interchangeable lensesBuilt-in 0-100% dimmer

Documents

Light data

Light planning

Compatibility

Arty Accent is available for the following systems:

  • 3-Phase Track

    220-240V AC

  • Pico Trac

    12V DC

  • Mini Trac

    12V DC

  • LED Profile

    Constant current

Technical specification

Material
  • Lamp housing of aluminum
  • Yoke and details of steel
  • Lens of PC
Finish
  • Grey (RAL 7040)
  • Black (RAL 9005)
  • White (RAL 9016)
  • Custom
Weight

210 g / 280 g

System
Dimming control
  • External dimmer (LED-Profile)
  • or built-in dimmer (Pico Trac, Mini Trac, 230V)
Protection class

IP20

Operating voltage

12V DC/230V/CC

Power consumption

4W/6W/8W/10W

CRI

90

Color temperature

2700K, 3000K, 4000K

Beam angle
  • Very Narrow 11°
  • Narrow (standard) 13°
  • Medium 22°
  • Wide 30°
  • Elliptical 42 × 12°
Swivels

>365°

Tilts

>90°

Optional accessories

Honeycomb 40mm

Design and idea

Ljusdesign AB and Gouiedo AB

Manufacturer

Ljusdesign AB, Sweden

Arty Accent 230V 10W, 3-Phase lighting track

  • Multi-adapter for 3 phase circuit track with built-in local dimmer (0–100%)
Light temperatureColorArt.noNameSpecificationColor
ARTACC27C-HV-1Arty Accent 230V/10W 2700KCRI 90, lens N, 3-phase multi adapter, with dimmerGrey
ARTACC27C-HV-2Arty Accent 230V/10W 2700KCRI 90, lens N, 3-phase multi adapter, with dimmerBlack
ARTACC27C-HV-3Arty Accent 230V/10W 2700KCRI 90, lens N, 3-phase multi adapter, with dimmerWhite
ARTACC30C-HV-1Arty Accent 230V/10W 3000KCRI 90, lens N, 3-phase multi adapter, with dimmerGrey
ARTACC30C-HV-2Arty Accent 230V/10W 3000KCRI 90, lens N, 3-phase multi adapter, with dimmerBlack
ARTACC30C-HV-3Arty Accent 230V/10W 3000KCRI 90, lens N, 3-phase multi adapter, with dimmerWhite
ARTACC40C-HV-1Arty Accent 230V/10W 4000KCRI 90, lens N, 3-phase multi adapter, with dimmerGrey
ARTACC40C-HV-2Arty Accent 230V/10W 4000KCRI 90, lens N, 3-phase multi adapter, with dimmerBlack
ARTACC40C-HV-3Arty Accent 230V/10W 4000KCRI 90, lens N, 3-phase multi adapter, with dimmerWhite

Arty Accent 230V 6W, 3-Phase lighting track

  • Multi-adapter for 3 phase circuit track with built-in local dimmer (0–100%)
Light temperatureColorArt.noNameSpecification
ARTACC27B-HV-1Arty Accent 230V/6W 2700KCRI 90, lens N, 3-phase multi adapter, with dimmerGrey
ARTACC27B-HV-2Arty Accent 230V/6W 2700KCRI 90, lens N, 3-phase multi adapter, with dimmerBlack
ARTACC27B-HV-3Arty Accent 230V/6W 2700KCRI 90, lens N, 3-phase multi adapter, with dimmerWhite
ARTACC30B-HV-1Arty Accent 230V/6W 3000KCRI 90, lens N, 3-phase multi adapter, with dimmerGrey
ARTACC30B-HV-2Arty Accent 230V/6W 3000KCRI 90, lens N, 3-phase multi adapter, with dimmerBlack
ARTACC30B-HV-3Arty Accent 230V/6W 3000KCRI 90, lens N, 3-phase multi adapter, with dimmerWhite
ARTACC40B-HV-1Arty Accent 230V/6W 4000KCRI 90, lens N, 3-phase multi adapter, with dimmerGrey
ARTACC40B-HV-2Arty Accent 230V/6W 4000KCRI 90, lens N, 3-phase multi adapter, with dimmerBlack
ARTACC40B-HV-3Arty Accent 230V/6W 4000KCRI 90, lens N, 3-phase multi adapter, with dimmerWhite

Arty Accent / 230V 10W, Casambi

  • Arty with full Casambi support for 3-Phase tracks
  • Adapter length: 150 mm
Light temperatureColorArt.noNameSpecificationColor
ARTACC27C-AHC-1Arty Accent 230V/10W Casambi 2700KCRI 90, lens N, 3-phase multi adapter, Casambi with dimmerGrey
ARTACC27C-AHC-2Arty Accent 230V/10W Casambi 2700KCRI 90, lens N, 3-phase multi adapter, Casambi with dimmerBlack
ARTACC27C-AHC-3Arty Accent 230V/10W Casambi 2700KCRI 90, lens N, 3-phase multi adapter, Casambi with dimmerWhite
ARTACC30C-AHC-1Arty Accent 230V/10W Casambi 3000KCRI 90, lens N, 3-phase multi adapter, Casambi with dimmerGrey
ARTACC30C-AHC-2Arty Accent 230V/10W Casambi 3000KCRI 90, lens N, 3-phase multi adapter, Casambi with dimmerBlack
ARTACC30C-AHC-3Arty Accent 230V/10W Casambi 3000KCRI 90, lens N, 3-phase multi adapter, Casambi with dimmerWhite
ARTACC40C-AHC-1Arty Accent 230V/10W Casambi 4000KCRI 90, lens N, 3-phase multi adapter, Casambi with dimmerGrey
ARTACC40C-AHC-2Arty Accent 230V/10W Casambi 4000KCRI 90, lens N, 3-phase multi adapter, Casambi with dimmerBlack
ARTACC40C-AHC-3Arty Accent 230V/10W Casambi 4000KCRI 90, lens N, 3-phase multi adapter, Casambi with dimmerWhite

Arty Accent / 230V 7W, DALI PULSE

Arty Accent DALI (1-100%)

Light temperatureColorArt.noNameSpecificationColor
ARTACC27B-HVDP-2Arty Accent 230V/7W 2700K, PULSECRI 90, lens N, PULSE adapterBlack
ARTACC27B-HVDP-3Arty Accent 230V/7W 2700K, PULSECRI 90, lens N, PULSE adapterWhite
ARTACC30B-HVDP-2Arty Accent 230V/7W 3000K, PULSECRI 90, lens N, PULSE adapterBlack
ARTACC30B-HVDP-3Arty Accent 230V/7W 3000K, PULSECRI 90, lens N, PULSE adapterWhite

Arty Accent E-DALI

  • The fixture is equipped with adapter for use with DALI track type E-DALI
  • Not for use with mains primary dimmer
Light temperatureColorIDProductFeatures
ARTACC27B-HVDE-1Arty Accent 230V/7W 2700K, E-DALI, Grey420lm, CRI 90, lens N, E-DALI adapter
ARTACC27B-HVDE-2Arty Accent 230V/7W 2700K, E-DALI, Black420lm, CRI 90, lens N, E-DALI adapter
ARTACC27B-HVDE-3Arty Accent 230V/7W 2700K, E-DALI, White420lm, CRI 90, lens N, E-DALI adapter
ARTACC30B-HVDE-1Arty Accent 230V/7W 3000K, E-DALI, Grey450lm, CRI 90, lens N, E-DALI adapter
ARTACC30B-HVDE-2Arty Accent 230V/7W 3000K, E-DALI, Black450lm, CRI 90, lens N, E-DALI adapter
ARTACC30B-HVDE-3Arty Accent 230V/7W 3000K, E-DALI, White450lm, CRI 90, lens N, E-DALI adapter

Arty Accent / CC 250 lm, LED Profile

  • For installation on LED profile High or Low. Dimming via external driver.
Light temperatureColorArt.noNameSpecification
ARTACC27-PRO-1Arty Accent CC/1200mA LED-profil 2700K250lm, CRI 90, Vf=3V, 1200mA, lens NGrey
ARTACC27-PRO-2Arty Accent CC/1200mA LED-profil 2700K250lm, CRI 90, Vf=3V, 1200mA, lens NBlack
ARTACC27-PRO-3Arty Accent CC/1200mA LED-profil 2700K250lm, CRI 90, Vf=3V, 1200mA, lens NWhite
ARTACC30-PRO-1Arty Accent CC/1200mA LED-profil 3000K260lm, CRI 90, Vf=3V, 1200mA, lens NGrey
ARTACC30-PRO-2Arty Accent CC/1200mA LED-profil 3000K260lm, CRI 90, Vf=3V, 1200mA, lens NBlack
ARTACC30-PRO-3Arty Accent CC/1200mA LED-profil 3000K260lm, CRI 90, Vf=3V, 1200mA, lens NWhite

Arty Accent / CC 450 lm, LED Profile

  • For installation on LED profile High or Low. Dimming via external driver.
Light temperatureColorArt.noNameSpecification
ARTACC27B-PRO-1Arty Accent CC/500mA LED-profile 2700K420lm, CRI 90, Vf=12V, 500mA, lens NGrey
ARTACC27B-PRO-2Arty Accent CC/500mA LED-profile 2700K420lm, CRI 90, Vf=12V, 500mA, lens NBlack
ARTACC27B-PRO-3Arty Accent CC/500mA LED-profile 2700K420lm, CRI 90, Vf=12V, 500mA, lens NWhite
ARTACC30B-PRO-1Arty Accent CC/500mA LED-profile 3000K450lm, CRI 90, Vf=12V, 500mA, lens NGrey
ARTACC30B-PRO-2Arty Accent CC/500mA LED-profile 3000K450lm, CRI 90, Vf=12V, 500mA, lens NBlack
ARTACC30B-PRO-3Arty Accent CC/500mA LED-profile 3000K450lm, CRI 90, Vf=12V, 500mA, lens NWhite
ARTACC27D-PRO-1Arty Accent CC/1000mA LED-profile 2700K420lm, CRI 90, Vf=6V, 1000mA, lens NGrey
ARTACC27D-PRO-2Arty Accent CC/1000mA LED-profile 2700K420lm, CRI 90, Vf=6V, 1000mA, lens NBlack
ARTACC27D-PRO-3Arty Accent CC/1000mA LED-profile 2700K420lm, CRI 90, Vf=6V, 1000mA, lens NWhite
ARTACC30D-PRO-1Arty Accent CC/1000mA LED-profile 3000K450lm, CRI 90, Vf=6V, 1000mA, lins NGrey
ARTACC30D-PRO-2Arty Accent CC/1000mA LED-profile 3000K450lm, CRI 90, Vf=6V, 1000mA, lins NBlack
ARTACC30D-PRO-3Arty Accent CC/1000mA LED-profile 3000K450lm, CRI 90, Vf=6V, 1000mA, lins NWhite

Arty Accent / CC 250 lm Solo

  • Dimming via external driver.
Light temperatureColorArt.noNameSpecificationColor
ARTACC27-CCS-1Arty Accent CC/1200mA Solo 2700KCRI 90, Vf=3V,1200mA, lens N, 1m cableGrey
ARTACC27-CCS-2Arty Accent CC/1200mA Solo 2700KCRI 90, Vf=3V,1200mA, lens N, 1m cableBlack
ARTACC27-CCS-3Arty Accent CC/1200mA Solo 2700KCRI 90, Vf=3V,1200mA, lens N, 1m cableWhite
ARTACC30-CCS-1Arty Accent CC/1200mA Solo 3000KCRI 90, Vf=3V,1200mA, lens N, 1m cableGrey
ARTACC30-CCS-2Arty Accent CC/1200mA Solo 3000KCRI 90, Vf=3V,1200mA, lens N, 1m cableBlack
ARTACC30-CCS-3Arty Accent CC/1200mA Solo 3000KCRI 90, Vf=3V,1200mA, lens N, 1m cableWhite

Arty Accent / CC 450 lm Solo

  • Dimming via external driver.
Light temperatureColorArt.noNameSpecificationColor
ARTACC27B-CCS-1Arty Accent CC/500mA Solo 2700KCRI 90, Vf=12V, 500mA, lens N, 1m cableGrey
ARTACC27B-CCS-2Arty Accent CC/500mA Solo 2700KCRI 90, Vf=12V, 500mA, lens N, 1m cableBlack
ARTACC27B-CCS-3Arty Accent CC/500mA Solo 2700KCRI 90, Vf=12V, 500mA, lens N, 1m cableWhite
ARTACC27D-CCS-1Arty Accent CC/1000mA Solo 2700KCRI 90, Vf=6V, 100mA, lens N, 1m cableGrey
ARTACC27D-CCS-2Arty Accent CC/1000mA Solo 2700KCRI 90, Vf=6V, 100mA, lens N, 1m cableBlack
ARTACC27D-CCS-3Arty Accent CC/1000mA Solo 2700KCRI 90, Vf=6V, 100mA, lens N, 1m cableWhite
ARTACC30B-CCS-1Arty Accent CC/500mA Solo 3000KCRI 90, Vf=12V, 500mA, lens N, 1m cableGrey
ARTACC30B-CCS-2Arty Accent CC/500mA Solo 3000KCRI 90, Vf=12V, 500mA, lens N, 1m cableBlack
ARTACC30B-CCS-3Arty Accent CC/500mA Solo 3000KCRI 90, Vf=12V, 500mA, lens N, 1m cableWhite
ARTACC30D-CCS-1Arty Accent CC/1000mA Solo 3000KCRI 90, Vf=6V, 100mA, lens N, 1m cableGrey
ARTACC30D-CCS-2Arty Accent CC/1000mA Solo 3000KCRI 90, Vf=6V, 100mA, lens N, 1m cableBlack
ARTACC30D-CCS-3Arty Accent CC/1000mA Solo 3000KCRI 90, Vf=6V, 100mA, lens N, 1m cableWhite

Arty Accent 4W / Pico Trac

  • Built-in local dimmer (0–100%)
Light temperatureColorArt.noNameSpecificationColor
ARTACC27B-PICO-1Arty Accent 12V DC/4W Pico Trac 2700K250lm, CRI 90, lens N, with dimmerGrey
ARTACC27B-PICO-2Arty Accent 12V DC/4W Pico Trac 2700K250lm, CRI 90, lens N, with dimmerBlack
ARTACC27B-PICO-3Arty Accent 12V DC/4W Pico Trac 2700K250lm, CRI 90, lens N, with dimmerWhite
ARTACC30B-PICO-1Arty Accent 12V DC/4W Pico Trac 3000K260lm, CRI 90, lens N, with dimmerGrey
ARTACC30B-PICO-2Arty Accent 12V DC/4W Pico Trac 3000K260lm, CRI 90, lens N, with dimmerBlack
ARTACC30B-PICO-3Arty Accent 12V DC/4W Pico Trac 3000K260lm, CRI 90, lens N, with dimmerWhite
ARTACC40B-PICO-1Arty Accent 12V DC/4W Pico Trac 4000K300lm, CRI 80, lens N, with dimmerGrey
ARTACC40B-PICO-2Arty Accent 12V DC/4W Pico Trac 4000K300lm, CRI 80, lens N, with dimmerBlack
ARTACC40B-PICO-3Arty Accent 12V DC/4W Pico Trac 4000K300lm, CRI 80, lens N, with dimmerWhite

Arty Accent 8W / Pico Trac

  • Built-in local dimmer (0–100%)
Light temperatureColorArt.noNameSpecificationColor
ARTACC27C-PICO-1Arty Accent 12V DC/8W Pico Trac 2700K480lm, CRI 90, lens N, with dimmerGrey
ARTACC27C-PICO-2Arty Accent 12V DC/8W Pico Trac 2700K480lm, CRI 90, lens N, with dimmerBlack
ARTACC27C-PICO-3Arty Accent 12V DC/8W Pico Trac 2700K480lm, CRI 90, lens N, with dimmerWhite
ARTACC30C-PICO-1Arty Accent 12V DC/8W Pico Trac 3000K510lm, CRI 90, lens N, with dimmerGrey
ARTACC30C-PICO-2Arty Accent 12V DC/8W Pico Trac 3000K510lm, CRI 90, lens N, with dimmerBlack
ARTACC30C-PICO-3Arty Accent 12V DC/8W Pico Trac 3000K510lm, CRI 90, lens N, with dimmerWhite
ARTACC40C-PICO-1Arty Accent 12V DC/8W Pico Trac 4000K540lm, CRI 90, lens N, with dimmerGrey
ARTACC40C-PICO-2Arty Accent 12V DC/8W Pico Trac 4000K540lm, CRI 90, lens N, with dimmerBlack
ARTACC40C-PICO-3Arty Accent 12V DC/8W Pico Trac 4000K540lm, CRI 90, lens N, with dimmerWhite

Arty Accent 4W / Mini Trac

  • Built-in local dimmer (0–100%)
Light temperatureColorArt.noNameSpecificationColor
ARTACC27-MT-1Arty Accent 12V DC/4W Mini Trac 2700K250lm, CRI 90, Lens N, with dimmerGrey
ARTACC27-MT-2Arty Accent 12V DC/4W Mini Trac 2700K250lm, CRI 90, Lens N, with dimmerBlack
ARTACC27-MT-3Arty Accent 12V DC/4W Mini Trac 2700K250lm, CRI 90, Lens N, with dimmerWhite
ARTACC30-MT-1Arty Accent 12V DC/4W Mini Trac 3000K260lm, CRI 90, Lens N, with dimmerGrey
ARTACC30-MT-2Arty Accent 12V DC/4W Mini Trac 3000K260lm, CRI 90, Lens N, with dimmerBlack
ARTACC30-MT-3Arty Accent 12V DC/4W Mini Trac 3000K260lm, CRI 90, Lens N, with dimmerWhite
ARTACC40-MT-1Arty Accent 12V DC/4W Mini Trac 4000K300lm, CRI 80, Lens N, with dimmerGrey
ARTACC40-MT-2Arty Accent 12V DC/4W Mini Trac 4000K300lm, CRI 80, Lens N, with dimmerBlack
ARTACC40-MT-3Arty Accent 12V DC/4W Mini Trac 4000K300lm, CRI 80, Lens N, with dimmerWhite

Arty Accent 8W / Mini Trac

  • Built-in local dimmer (0–100%)
Light temperatureColorArt.noNameSpecificationColor
ARTACC27C-MT-1Arty Accent 12V DC/8W Mini Trac 2700K480lm, CRI 90, lens N, with dimmerGrey
ARTACC27C-MT-2Arty Accent 12V DC/8W Mini Trac 2700K480lm, CRI 90, lens N, with dimmerBlack
ARTACC27C-MT-3Arty Accent 12V DC/8W Mini Trac 2700K480lm, CRI 90, lens N, with dimmerWhite
ARTACC30C-MT-1Arty Accent 12V DC/8W Mini Trac 3000K510lm, CRI 90, lens N, with dimmerGrey
ARTACC30C-MT-2Arty Accent 12V DC/8W Mini Trac 3000K510lm, CRI 90, lens N, with dimmerBlack
ARTACC30C-MT-3Arty Accent 12V DC/8W Mini Trac 3000K510lm, CRI 90, lens N, with dimmerWhite
ARTACC40C-MT-1Arty Accent 12V DC/8W Mini Trac 4000K540lm, CRI 90, lens N, with dimmerGrey
ARTACC40C-MT-2Arty Accent 12V DC/8W Mini Trac 4000K540lm, CRI 90, lens N, with dimmerBlack
ARTACC40C-MT-3Arty Accent 12V DC/8W Mini Trac 4000K540lm, CRI 90, lens N, with dimmerWhite

Arty Accent / 12V DC 4W, Solo

  • Built-in local dimmer (0–100%)
Light temperatureColorArt.noNameSpecificationColor
ARTACC27-LVS-1Arty Accent 12V DC/4W Solo 2700KCRI 90, Lens N, with dimmer, 1m cableGrey
ARTACC27-LVS-2Arty Accent 12V DC/4W Solo 2700KCRI 90, Lens N, with dimmer, 1m cableBlack
ARTACC27-LVS-3Arty Accent 12V DC/4W Solo 2700KCRI 90, Lens N, with dimmer, 1m cableWhite
ARTACC30-LVS-1Arty Accent 12V DC/4W Solo 3000KCRI 90, Lens N, with dimmer, 1m cableGrey
ARTACC30-LVS-2Arty Accent 12V DC/4W Solo 3000KCRI 90, Lens N, with dimmer, 1m cableBlack
ARTACC30-LVS-3Arty Accent 12V DC/4W Solo 3000KCRI 90, Lens N, with dimmer, 1m cableWhite
ARTACC40-LVS-1Arty Accent 12V DC/4W Solo 4000KCRI 90, Lens N, with dimmer, 1m cableGrey
ARTACC40-LVS-2Arty Accent 12V DC/4W Solo 4000KCRI 90, Lens N, with dimmer, 1m cableBlack
ARTACC40-LVS-3Arty Accent 12V DC/4W Solo 4000KCRI 90, Lens N, with dimmer, 1m cableWhite

Arty Accent / 12V DC 8W, Solo

  • Built-in local dimmer (0–100%)
Light temperatureColorArt.noNameSpecificationColor
ARTACC27C-LVS-1Arty Accent 12V DC/8W Solo 2700KCRI 90, lens N, with dimmer, 1m cableGrey
ARTACC27C-LVS-2Arty Accent 12V DC/8W Solo 2700KCRI 90, lens N, with dimmer, 1m cableBlack
ARTACC27C-LVS-3Arty Accent 12V DC/8W Solo 2700KCRI 90, lens N, with dimmer, 1m cableWhite
ARTACC30C-LVS-1Arty Accent 12V DC/8W Solo 3000KCRI 90, lens N, with dimmer, 1m cableGrey
ARTACC30C-LVS-2Arty Accent 12V DC/8W Solo 3000KCRI 90, lens N, with dimmer, 1m cableBlack
ARTACC30C-LVS-3Arty Accent 12V DC/8W Solo 3000KCRI 90, lens N, with dimmer, 1m cableWhite
ARTACC40C-LVS-1Arty Accent 12V DC/8W Solo 4000KCRI 90, lens N, with dimmer, 1m cableGrey
ARTACC40C-LVS-2Arty Accent 12V DC/8W Solo 4000KCRI 90, lens N, with dimmer, 1m cableBlack
ARTACC40C-LVS-3Arty Accent 12V DC/8W Solo 4000KCRI 90, lens N, with dimmer, 1m cableWhite

Arty Accent Accessories

ColorArt.noNameSpecification
DIN-L-VNDinkey/Arty Accent lensVery Narrow
DIN-L-NDinkey/Arty Accent lensFrosted Narrow (standard lens)
DIN-L-MDinkey/Arty Accent lensFrosted Medium
DIN-L-WDinkey/Arty Accent lensFrosted Wide
DIN-L-EDinkey/Arty Accent lensElliptical
ART-HCLHoney Comb louvre Arty Accent 40mm, Black
AX.ART91-1Arty Barndoor Kit, GreyGrey inside, Black Velour kit, Lock ring
AX.ART91-2Arty Barndoor Kit, BlackBlack inside, Black Velour kit, Lock ring
AX.ART91-3Arty Barndoor Kit, VitVit inside, Black Velour kit, Lock ring
ARTY-1Arty Barndoor, Lock ring not included, GreyGrey inside
ARTY-2Arty Barndoor, Lock ring not included, BlackBlack inside
ARTY-3Arty Barndoor, Lock ring not included, WhiteWhite inside
QS.L10290Arty Barndoor Lock ring, Black
ARTY91-XArty Barndoor Velour-Kit, Black
