Gizmo Zoom

Equipped with an adjustable PC lens of high quality

  • Easy-to-use zoom function
  • Available in many variations

Gizmo Zoom is provided with a movable PC lense of high quality. It's a mini-spotlight useful for pin-pointing and enhancing smaller objects.

  • Variable beam 5–30°
  • Beam angle is changed easily by rotating the front
  • Dimmable from the wall or the app when mounted in our LED-profiles
  • Built-in dimmer 0–100% in every fixture Pico Trac
  • Lenses are interchanged without tools

Gizmo Zoom is delivered with adapter for LED-profile or Pico Trac.

In the solo edition, it can also be mounted in a ceiling cup or with the included M8 fitting (8mm drill hole).

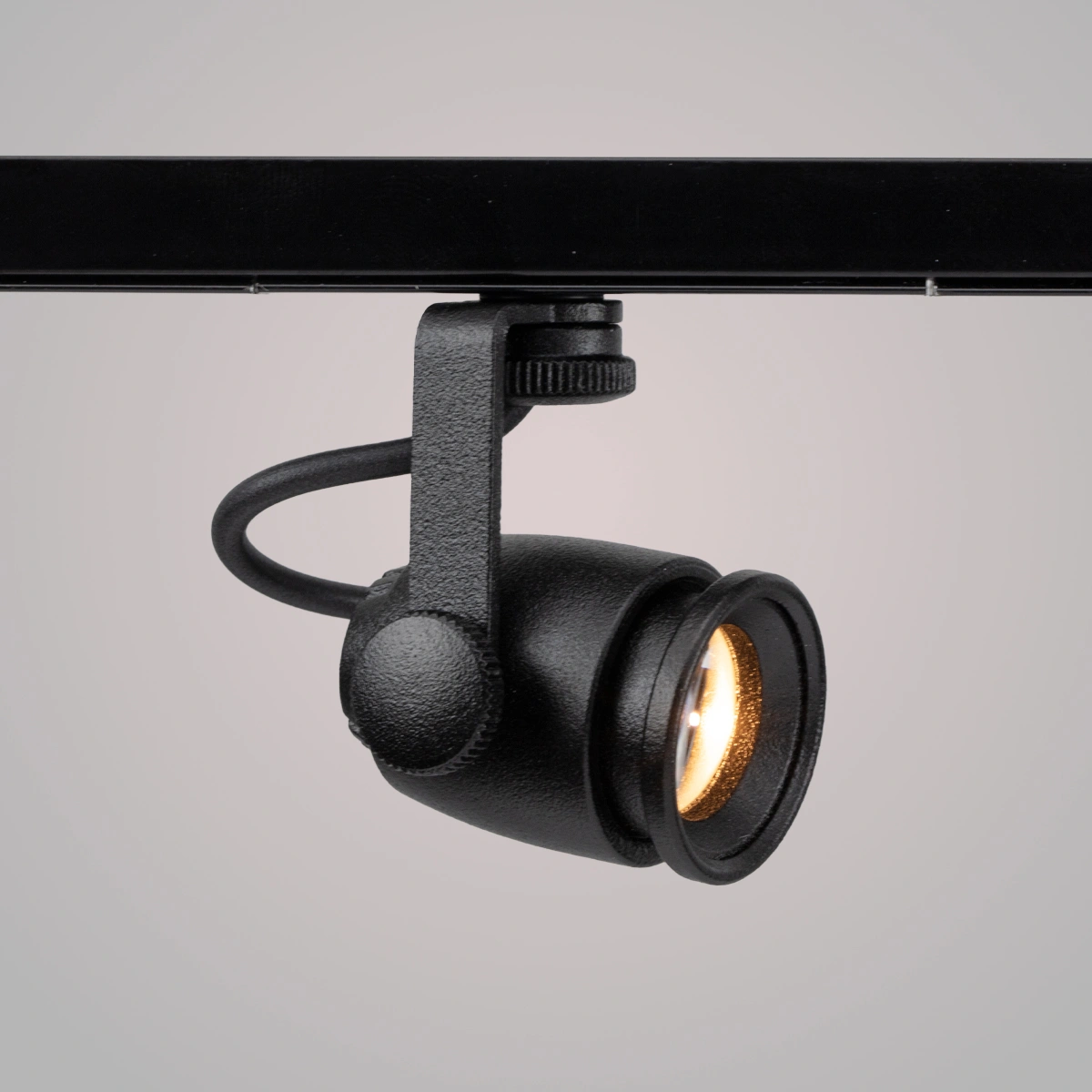

Black Gizmo Zoom Solo for constant currentBlack Gizmo Zoom for Pico Trac (12V DC)Gizmo and accessories
Black Gizmo Zoom Solo for constant current
Zoom optics

Documents

Light data

Light planning

Compatibility

Gizmo Zoom is available for the following systems:

  • Pico Trac

    12V DC

  • LED Profile

    Constant current

Technical specification

Material
  • Lamp housing of aluminium
  • Yoke and details of steel
  • Lens of optical glass
Finish
  • Grey (RAL 7040)
  • Black (RAL 9005)
  • White (RAL 9016)
  • Custom
Weight

50 g

System
Protection class

IP20

Power consumption

2,1W–3W

Dimming
  • Via external dimmer (LED-Profile)
  • or built-in dimmer (Pico Trac)
CRI

90

CRI (Model B)

95

Colour temperature

2200K, 2700K, 3000K, 4000K, 5700K

Swivels

360°

Tilts

90°

Beam angle

5–30°

Dinkey design and idea

Ljusdesign AB

Manufacturer
  • Ljusdesign AB, Sweden
  • Electronics in collaboration with Lightronic AB

Gizmo Zoom CC / LED profile

  • For installation on LED profile High or Low. Max 700mA.
Light temperatureColorArt.noNamnSpecifikation
GIZZ22-CCL-1Gizmo Zoom CC/700mA LED-profile 2200K, Grey190lm, CRI 80, Vf=3V, 700mA, 5–30°
GIZZ22-CCL-2Gizmo Zoom CC/700mA LED-profile 2200K, Black190lm, CRI 80, Vf=3V, 700mA, 5–30°
GIZZ22-CCL-3Gizmo Zoom CC/700mA LED-profile 2200K, White190lm, CRI 80, Vf=3V, 700mA, 5–30°
GIZZ22-CCL-4Gizmo Zoom CC/700mA LED-profile 2200K, Brass190lm, CRI 80, Vf=3V, 700mA, 5–30°
GIZZ27B-CCL-1Gizmo Zoom CC/700mA LED-profile 2700K, Grey200lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ27B-CCL-2Gizmo Zoom CC/700mA LED-profile 2700K, Black200lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ27B-CCL-3Gizmo Zoom CC/700mA LED-profile 2700K, White200lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ27B-CCL-4Gizmo Zoom CC/700mA LED-profile 2700K, Brass200lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ30B-CCL-1Gizmo Zoom CC/700mA LED-profile 3000K, Grey210lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ30B-CCL-2Gizmo Zoom CC/700mA LED-profile 3000K, Black210lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ30B-CCL-3Gizmo Zoom CC/700mA LED-profile 3000K, White210lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ30B-CCL-4Gizmo Zoom CC/700mA LED-profile 3000K, Brass210lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ40B-CCL-1Gizmo Zoom CC/700mA LED-profile 4000K, Grey220lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ40B-CCL-2Gizmo Zoom CC/700mA LED-profile 4000K, Black220lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ40B-CCL-3Gizmo Zoom CC/700mA LED-profile 4000K, White220lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ40B-CCL-4Gizmo Zoom CC/700mA LED-profile 4000K, Brass220lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ57B-CCL-1Gizmo Zoom CC/700mA LED-profile 5700K, Grey230lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ57B-CCL-2Gizmo Zoom CC/700mA LED-profile 5700K, Black230lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ57B-CCL-3Gizmo Zoom CC/700mA LED-profile 5700K, White230lm, CRI 95, Vf=3V, 700mA, 5–30°
GIZZ57B-CCL-4Gizmo Zoom CC/700mA LED-profile 5700K, Brass230lm, CRI 95, Vf=3V, 700mA, 5–30°

Gizmo Zoom CC / Solo

  • For surface mounting. Max 700mA.
Light temperatureColorArt.noNamnSpecifikation
GIZZ22-CCS-1Gizmo Zoom CC/700mA Solo 2200K, Grey190lm, CRI 80, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ22-CCS-2Gizmo Zoom CC/700mA Solo 2200K, Black190lm, CRI 80, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ22-CCS-3Gizmo Zoom CC/700mA Solo 2200K, White190lm, CRI 80, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ22-CCS-4Gizmo Zoom CC/700mA Solo 2200K, Brass190lm, CRI 80, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ27B-CCS-1Gizmo Zoom CC/700mA Solo 2700K, Grey200lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ27B-CCS-2Gizmo Zoom CC/700mA Solo 2700K, Black200lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ27B-CCS-3Gizmo Zoom CC/700mA Solo 2700K, White200lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ27B-CCS-4Gizmo Zoom CC/700mA Solo 2700K, Brass200lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ30B-CCS-1Gizmo Zoom CC/700mA Solo 3000K, Grey210lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ30B-CCS-2Gizmo Zoom CC/700mA Solo 3000K, Black210lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ30B-CCS-3Gizmo Zoom CC/700mA Solo 3000K, White210lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ30B-CCS-4Gizmo Zoom CC/700mA Solo 3000K, Brass210lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ40B-CCS-1Gizmo Zoom CC/700mA Solo 4000K, Grey220lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ40B-CCS-2Gizmo Zoom CC/700mA Solo 4000K, Black220lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ40B-CCS-3Gizmo Zoom CC/700mA Solo 4000K, White220lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ40B-CCS-4Gizmo Zoom CC/700mA Solo 4000K, Brass220lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ57B-CCS-1Gizmo Zoom CC/700mA Solo 5700K, Grey230lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ57B-CCS-2Gizmo Zoom CC/700mA Solo 5700K, Black230lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ57B-CCS-3Gizmo Zoom CC/700mA Solo 5700K, White230lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable
GIZZ57B-CCS-4Gizmo Zoom CC/700mA Solo 5700K, Brass230lm, CRI 95, Vf=3V, 700mA, 5–30°, 1m cable

Gizmo Zoom 12V DC / Pico Trac

  • Built-in dimmer 0–100%
Light temperatureColorArt.noNamnSpecifikation
GIZZ22-PT-1Gizmo Zoom 12V DC/3W PicoTrac 2200K, Grey190lm, CRI 80, 5–30°, dimmer
GIZZ22-PT-2Gizmo Zoom 12V DC/3W PicoTrac 2200K, Black190lm, CRI 80, 5–30°, dimmer
GIZZ22-PT-3Gizmo Zoom 12V DC/3W PicoTrac 2200K, White190lm, CRI 80, 5–30°, dimmer
GIZZ22-PT-4Gizmo Zoom 12V DC/3W PicoTrac 2200K, Brass190lm, CRI 80, 5–30°, dimmer
GIZZ27B-PT-1Gizmo Zoom 12V DC/3W PicoTrac 2700K, Grey200lm, CRI 95, 5–30°, dimmer
GIZZ27B-PT-2Gizmo Zoom 12V DC/3W PicoTrac 2700K, Black200lm, CRI 95, 5–30°, dimmer
GIZZ27B-PT-3Gizmo Zoom 12V DC/3W PicoTrac 2700K, White200lm, CRI 95, 5–30°, dimmer
GIZZ27B-PT-4Gizmo Zoom 12V DC/3W PicoTrac 2700K, Brass200lm, CRI 95, 5–30°, dimmer
GIZZ30B-PT-1Gizmo Zoom 12V DC/3W PicoTrac 3000K, Grey210lm, CRI 95, 5–30°, dimmer
GIZZ30B-PT-2Gizmo Zoom 12V DC/3W PicoTrac 3000K, Black210lm, CRI 95, 5–30°, dimmer
GIZZ30B-PT-3Gizmo Zoom 12V DC/3W PicoTrac 3000K, White210lm, CRI 95, 5–30°, dimmer
GIZZ30B-PT-4Gizmo Zoom 12V DC/3W PicoTrac 3000K, Brass210lm, CRI 95, 5–30°, dimmer
GIZZ40B-PT-1Gizmo Zoom 12V DC/3W PicoTrac 4000K, Grey220lm, CRI 95, 5–30°, dimmer
GIZZ40B-PT-2Gizmo Zoom 12V DC/3W PicoTrac 4000K, Black220lm, CRI 95, 5–30°, dimmer
GIZZ40B-PT-3Gizmo Zoom 12V DC/3W PicoTrac 4000K, White220lm, CRI 95, 5–30°, dimmer
GIZZ40B-PT-4Gizmo Zoom 12V DC/3W PicoTrac 4000K, Brass220lm, CRI 95, 5–30°, dimmer
GIZZ57B-PT-1Gizmo Zoom 12V DC/3W PicoTrac 5700K, Grey230lm, CRI 95, 5–30°, dimmer
GIZZ57B-PT-2Gizmo Zoom 12V DC/3W PicoTrac 5700K, Black230lm, CRI 95, 5–30°, dimmer
GIZZ57B-PT-3Gizmo Zoom 12V DC/3W PicoTrac 5700K, White230lm, CRI 95, 5–30°, dimmer
GIZZ57B-PT-4Gizmo Zoom 12V DC/3W PicoTrac 5700K, Brass230lm, CRI 95, 5–30°, dimmer

Gizmo Ceiling cup

  • Surface mounted
  • Compatible with Gizmo
ColorArt.noBenämningSpecifikationFärg
GIZ-TK-2Ceiling cup surface mounted⌀36mm H=9,5mmBlack
GIZ-TK-3Ceiling cup surface mounted⌀36mm H=9,5mmVit

Arty Ceiling cup

Arty Ceiling cup is perfect for recessed installation of solo spotlights.

  • Recessed installation
  • Hole diameter: 48-52mm
  • Compatible with Gizmo, Dinkey and Arty
ColorArt.noBenämningSpecifikationFärg
ART-TK-2Ceiling cup recessed⌀55mmBlack
ART-TK-3Ceiling cup recessed⌀55mmWhite
