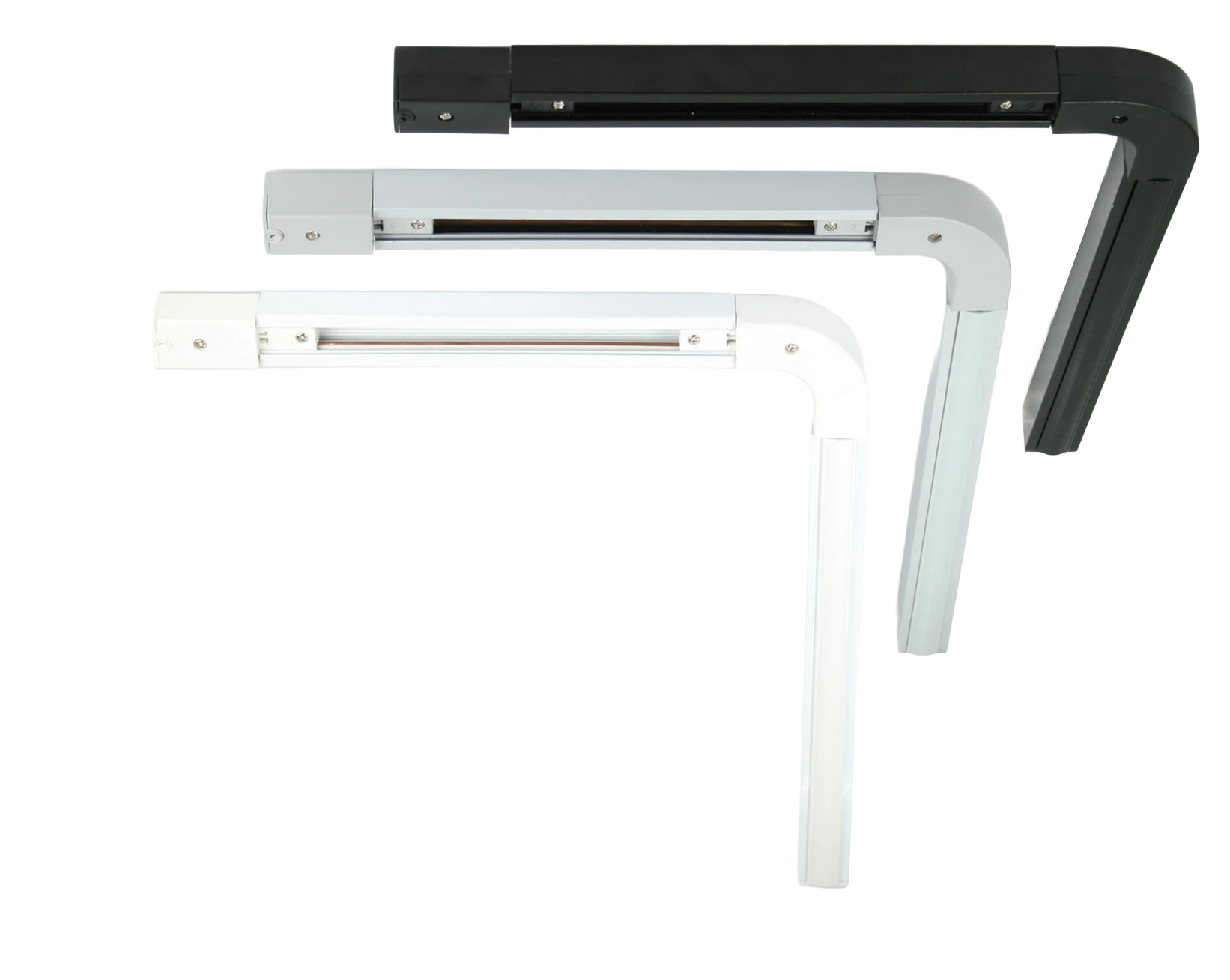

Mini Trac

We have developed an inexpensive and discreet low voltage track.

  • Tracks and accessoires are of high quality
  • Can easily be cut or coupled.
  • Standard length is 2 metres, available in grey, white and black

In the luminare range you'll find Arty series and Dinkey.

Technical specification


Extruded aluminium, conductors of 4 mm² copper.

  • 2 meters
  • Tracks can be cut / joined to desired length

Ceiling, 30-60mm distances or suspended with wire.


Grey, black and white.

Protection class



One phase 12V DC, max 20A

File downloads

Mini Trac

  • 12V DC, max 20A
  • Recommended maximum length is 6 meter due to voltage drops
Art. noBenämningFärg
 DMT12-1MiniTrac 2mMax 20AGrey
 DMT12-1MiniTrac 2mMax 20AGrå
 DMTC12-1MiniTrac Square 2mMax 20AGrå
 DMT14-1MiniTrac AnslutMax 20AGrå
 DMTC14-1MiniTrac Square AnslutMax 20AGrå
 DMT15-1MiniTrac ÄndavslutMax 20AGrå
 DMT16-1MiniTrac Rak skenskarvMax 20AGrå
 DMT17-1MiniTrac L-skarvMax 20AGrå
 DMTC17-1MiniTrac Square L-skarvMax 20AGrå
 DMT81-1MiniTrac Väggmontering, kitGrå
 DMT82-1MiniTrac Vire-upphängGrå
 DMT91-1MiniTrac AdapterGrå
 DMT12-2MiniTrac 2mMax 20ASvart
 DMTC12-2MiniTrac Square 2mMax 20ASvart
 DMT14-2MiniTrac AnslutMax 20ASvart
 DMTC14-2MiniTrac Square AnslutMax 20ASvart
 DMT15-2MiniTrac ÄndavslutMax 20ASvart
 DMT16-2MiniTrac Rak skenskarvMax 20ASvart
 DMT17-2MiniTrac L-skarvMax 20ASvart
 DMTC17-2MiniTrac Square L-skarvMax 20ASvart
 DMT81-2MiniTrac Väggmontering, kitSvart
 DMT82-2MiniTrac Vire-upphängSvart
 DMT91-2MiniTrac AdapterSvart
 DMT12-3MiniTrac 2mMax 20AVit
 DMTC12-3MiniTrac Square 2mMax 20AVit
 DMT14-3MiniTrac AnslutMax 20AVit
 DMTC14-3MiniTrac Square AnslutMax 20AVit
 DMT15-3MiniTrac ÄndavslutMax 20AVit
 DMT16-3MiniTrac Rak skenskarvMax 20AVit
 DMT17-3MiniTrac L-skarvMax 20AVit
 DMTC17-3MiniTrac Square L-skarvMax 20AVit
 DMT81-3MiniTrac Väggmontering, kitVit
 DMT82-3MiniTrac Vire-upphängVit
 DMT91-3MiniTrac AdapterVit
